991208 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 030000 - 039999) Transaxle - Right Hand Parts Diagram

Pro-Turn 52" Zero-Turn Mower

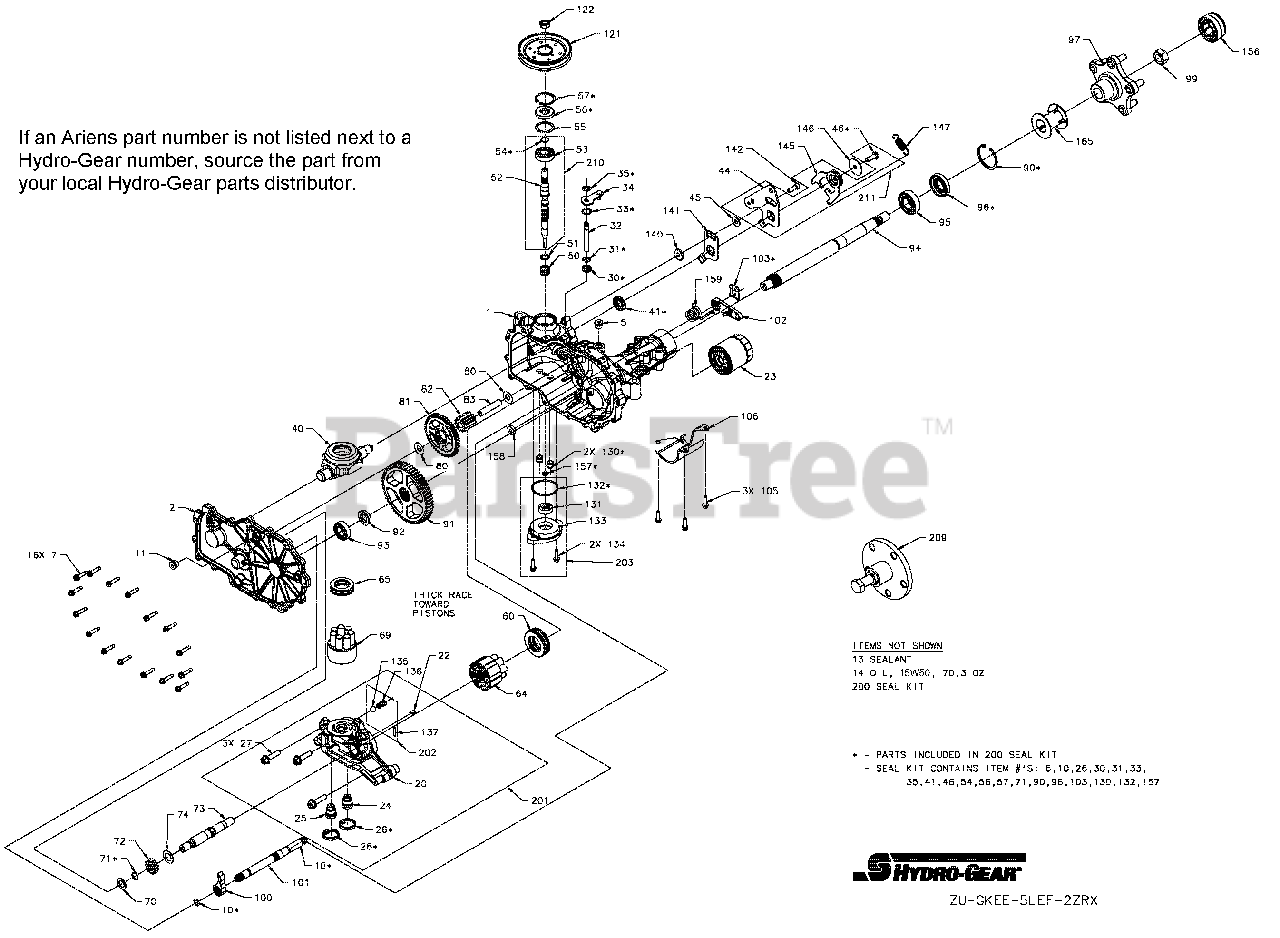

Transaxle - Right Hand Parts Diagram

  • Title

1

n/a

KIT, HOUSING,MAIN,RH,CHRG,CNTL

Note: Hydro-Gear p/n 71984

$

$

Not available

1

n/a

HOUSING, MAIN, RH, CHRG, CNTL

Note: n/a

$

$

Not available

1

n/a

BUSHING, .624 x .719 x .562

Note: n/a

$

$

Not available

1

n/a

BRG, JRNL .86 x .98 x .79

Note: n/a

$

$

Not available

1

n/a

PIN, .25 x .375

Note: n/a

$

$

Not available

(105)

n/a

HFHCS 1/4-20 x .625

Note: n/a

$

$

Not available

(134)

n/a

HFHCS 1/4-20 x .625

Note: n/a

$

$

Not available

2

n/a

KIT, COVER, SIDE, RH

Note: Hydro-Gear p/n 71990

$

$

Not available

2

n/a

COVER, SIDE, RH

Note: n/a

$

$

Not available

2

n/a

BUSHING, .624 x .719 x .562

Note: n/a

$

$

Not available

2

n/a

BRG, JRNL .86 x .98 x .79

Note: n/a

$

$

Not available

5

n/a

PLUG 9/16-18 (METAL)

Note: Hydro-Gear p/n 9005110-5600

$

$

Not available

7

Gravely 27105900

HFHCS 1/4-20 x 1.125"

Note: Hydro-Gear p/n 53246

$2.49

$

In Stock, only 3 left!

0

10

n/a

O-RING - 111 .103 x 424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

n/a

PLUG 9/16-18 (METAL)

Note: Hydro-Gear p/n 9005110-5600

$

$

Not available

13

Gravely 21543771

SEALANT

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

14

Gravely 00057100

SYNTHETIC OIL, 15W50

Note: n/a

$14.99

$

In Stock, Qty 20+

0

22

Gravely 21543839

PLATE, BYPASS

Note: Hydro-Gear p/n 51448

$

$

Not available

23

Gravely 21545100

FILTER, OIL

Note: Hydro-Gear p/n 52114

$

$

Not available

26

Gravely 21544047

SEAL, PLUG 1.250 x .250

Note: Hydro-Gear p/n 52162

$7.49

$

Usually ships in 4-12 days

0

27

n/a

HFHCS 3/8-16 x 1.5 (PATCH)

Note: Hydro-Gear p/n 52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375 x .75 x .25

Note: Hydro-Gear p/n 51626

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING, RET .375 EXTRNL

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 5

0

32

n/a

ROD, BYPASS

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750 INTRNL

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely 21544046

ARM, BYPASS

Note: Hydro-Gear p/n 51910

$14.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .375 EXT

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 12 x 32 x 7

Note: Hydro-Gear p/n 51140

$9.49

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER .34 x .88 x .06

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 x 1.00 (PATCH)

Note: Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

50

Gravely 08621500

SPRING, BLOCK

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

51

Gravely 08609400

WASHER-FLAT .59 x .79 x .04

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

55

Gravely 21543773

WASHER 1.23 x 1.56 x .04

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 x 40 x 7

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RETAINING

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

BEARING, THRUST

Note: Hydro-Gear p/n 51462

$29.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

ASS'Y, CYLINDER BLOCK, 16cc

Note: Hydro-Gear p/n 71579

$77.99

$

Usually ships in 4-12 days

0

65

Gravely 21548903

BRG, THRUST PLASTIC CAGE

Note: Hydro-Gear p/n 53502

$

$

Not available

69

Gravely 21548905

ASS'Y, BLOCK 7 PISTON

Note: Hydro-Gear p/n 71971

$86.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63 x 1.0 x .05

Note: Hydro-Gear p/n 44371

$

$

Not available

71

Gravely 21543704

RING, RETAINING_.625

Note: Hydro-Gear p/n 44145

$

$

Not available

72

n/a

GEAR, 13T, STEEL

Note: Hydro-Gear p/n 52342

$

$

Not available

73

n/a

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER .72 x 1.16 x .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER .5 x 1.0 x .03

Note: Hydro-Gear p/n 50132

$

$

Not available

81

n/a

GEAR, 46T

Note: Hydro-Gear p/n 52343

$

$

Not available

82

n/a

GEAR, 11T, STEEL

Note: Hydro-Gear p/n 52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

RING, RET 2.06 INT

Note: Hydro-Gear p/n 50859

$9.49

$

Usually ships in 4-12 days

0

91

n/a

GEAR, 54T

Note: Hydro-Gear p/n 53327

$

$

Not available

92

n/a

SPACER, .750 x 1.320 x .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

n/a

BEARING, BALL, .75 x 40 x 12

Note: Hydro-Gear p/n 44121

$

$

Not available

94

n/a

SHAFT, AXLE

Note: Hydro-Gear p/n 53527

$

$

Not available

95

Gravely 08614000

BRG, BALL 25.4 x 52 x 15

Note: Hydro-Gear p/n 50771

$23.99

$

Usually ships in 4-12 days

0

96

Gravely 08614300

SEAL, LIP 1.000 x 2.049 x .375

Note: Hydro-Gear p/n 50772

$16.99

$

In Stock, only 1 left!

0

97

Gravely 21544023

KIT, HUB, 5 BOLT

Note: Hydro-Gear p/n 71691

$90.99

$

In Stock, only 2 left!

0

97

n/a

HUB, TAPER 3.56, 5 BOLT

Note: n/a

$

$

Not available

97

n/a

STUD, 1/2-20 x 1.5 (RIB NECK)

Note: n/a

$

$

Not available

99

Gravely 08621100

NUT, HEX LOCK 3/4-16

Note: Hydro-Gear p/n 50863

$7.49

$

Usually ships in 4-12 days

0

100

n/a

PAWL, BRAKE

Note: Hydro-Gear p/n 52776

$

$

Not available

101

n/a

SHAFT, BRAKE

Note: Hydro-Gear p/n 52640

$

$

Not available

102

Gravely 21544073

KIT, HANDLE, ACTUATING
(Superseded to 21544037)

Note: Hydro-Gear p/n 71980

$15.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP, RETAINING

Note: Hydro-Gear p/n 52027

$5.99

$

Usually ships in 4-12 days

0

105

n/a

SCREW, HEX FLANGE 1/4-20 x .625

Note: Hydro-Gear p/n 53464

$

$

Not available

106

n/a

GUARD, FILTER, RH

Note: Hydro-Gear p/n 52257

$

$

Not available

121

Gravely 21544051

PULLEY, 4.5 x 1.625
(Superseded to 21544079)

Note: Hydro-Gear p/n 53218

$64.99

$

In Stock, only 2 left!

0

122

Gravely 21543703

NUT,HEX JAM 1/2-20 W/ PATCH

Note: Hydro-Gear p/n 44133

$4.99

$

In Stock, only 4 left!

0

130

n/a

TUBE, CONNECTING

Note: Hydro-Gear p/n 52157

$

$

Not available

131

Gravely 08611500

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: Hydro-Gear p/n 50273

$27.99

$

Usually ships in 4-12 days

0

132

Gravely 21544005

O-RING, -137, 0.103 x 2.050

Note: Hydro-Gear p/n 52250

$5.99

$

Usually ships in 4-12 days

0

133

n/a

COVER, CHARGE PUMP

Note: Hydro-Gear p/n 53468

$

$

Not available

134

n/a

SCREW, HEX FLANGE 1/4-20 x .625

Note: Hydro-Gear p/n 53464

$

$

Not available

140

Gravely 21543870

SPACER .320 x 1.005 x .179

Note: Hydro-Gear p/n 52527

$

$

Not available

141

Gravely 21543866

ARM, NEUTRAL RIGHT

Note: Hydro-Gear p/n 51945

$11.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24 x 1 PATCH

Note: Hydro-Gear p/n 51616

$

$

Not available

146

Gravely 21543871

WASHER, .343 x 1.500 x .062

Note: Hydro-Gear p/n 51950

$6.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, EXTNSN RTN-34LBS

Note: Hydro-Gear p/n 51833

$

$

Not available

157

Gravely 21544001

SEAL, LIP 8 x 12 x 3 VC

Note: Hydro-Gear p/n 53456

$

$

Not available

158

Gravely 21543799

MAGNET, RING

Note: Hydro-Gear p/n 51100

$2.49

$

Usually ships in 4-12 days

0

159

Gravely 21544052

SPRING, TORSION CCW

Note: Hydro-Gear p/n 53429

$11.99

$

Usually ships in 4-12 days

0

165

n/a

TUBE, AXLE 2.04

Note: Hydro-Gear p/n 53496

$

$

Not available

200

Gravely 21544034

KIT, SEAL

Note: Hydro-Gear p/n 71976

$

$

Not available

200

n/a

PIN, .25 x .375

Note: n/a

$

$

Not available

(10)

n/a

O-RING - 111 .103 x 424

Note: n/a

$

$

Not available

(26)

n/a

SEAL, PLUG 1.250 x .250

Note: n/a

$

$

Not available

(30)

n/a

SEAL, LIP .375 x .75 x .25

Note: n/a

$

$

Not available

(31)

n/a

RING, RET .375 EXTRNL

Note: n/a

$

$

Not available

(33)

n/a

RING, RET .750 INTRNL

Note: n/a

$

$

Not available

(35)

n/a

RING, RTNG .375 EXT

Note: n/a

$

$

Not available

(41)

n/a

SEAL, LIP 12 x 32 x 7

Note: n/a

$

$

Not available

(46)

n/a

TWHCS 5/16-24 x 1.00 (PATCH)

Note: n/a

$

$

Not available

54

n/a

RING, RET. WIRE .561

Note: n/a

$

$

Not available

(56)

n/a

SEAL, LIP 17 x 40 x 7

Note: n/a

$

$

Not available

(57)

n/a

RING, RETAINING

Note: n/a

$

$

Not available

(71)

n/a

RING, RETAINING_.625

Note: n/a

$

$

Not available

(90)

n/a

RING, RET 2.06 INT

Note: n/a

$

$

Not available

(96)

n/a

SEAL, LIP 1.000 x 2.049 x .375

Note: n/a

$

$

Not available

(103)

n/a

CLIP, RETAINING

Note: n/a

$

$

Not available

(130)

n/a

TUBE, CONNECTING

Note: n/a

$

$

Not available

(132)

n/a

O-RING, -137, 0.103 x 2.050

Note: n/a

$

$

Not available

(157)

n/a

SEAL, LIP 8 x 12 x 3 VC

Note: n/a

$

$

Not available

201

Gravely 21548910

KIT, CENTER SECTION, RH, CHRG

Note: Hydro-Gear p/n 71972

$

$

Not available

20

n/a

CENTER SECTION, RH, CHRG

Note: n/a

$

$

Not available

(22)

n/a

PLATE, BYPASS

Note: n/a

$

$

Not available

24

n/a

SHOCK VALVE ASSEMBLY 220 BAR

Note: n/a

$

$

Not available

25

n/a

SHOCK VALVE ASSEMBLY 220 BAR

Note: n/a

$

$

Not available

(27)

n/a

HFHCS 3/8-16 x 1.5 (PATCH)

Note: n/a

$

$

Not available

25

n/a

BEARING, JOURNAL .50 x .59 x .50

Note: n/a

$

$

Not available

135

n/a

BALL 7/16

Note: n/a

$

$

Not available

136

n/a

SPRING, RELIEF

Note: n/a

$

$

Not available

137

n/a

PIN, SPRING .125 x .875

Note: n/a

$

$

Not available

202

n/a

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436

$

$

Not available

203

Gravely 21544071

KIT, CHARGE PUMP

Note: Hydro-Gear p/n 71977

$109.99

$

Usually ships in 4-12 days

0

(131)

n/a

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: n/a

$

$

Not available

(133)

n/a

COVER, CHARGE PUMP

Note: n/a

$

$

Not available

(134)

n/a

HFHCS 1/4-20 x .75

Note: n/a

$

$

Not available

209

n/a

HUB PULLER, 5 BOLT

Note: Hydro-Gear p/n 71784

$

$

Not available

210

Gravely 21544039

KIT, INPUT SHAFT

Note: Hydro-Gear p/n 71978

$

$

Not available

52

n/a

SHAFT, INPUT

Note: n/a

$

$

Not available

53

n/a

BRG, BALL 17 x 40 x 12

Note: n/a

$

$

Not available

54

n/a

RING, RET WIRE .561 ID

Note: n/a

$

$

Not available

211

Gravely 21544002

KIT, RTN, CW

Note: Hydro-Gear p/n 71597

$35.99

$

Usually ships in 4-12 days

0

44

n/a

ARM, CONTROL, RH

Note: n/a

$

$

Not available

145

n/a

ASSEMBLY, RTN, CW

Note: n/a

$

$

Not available
