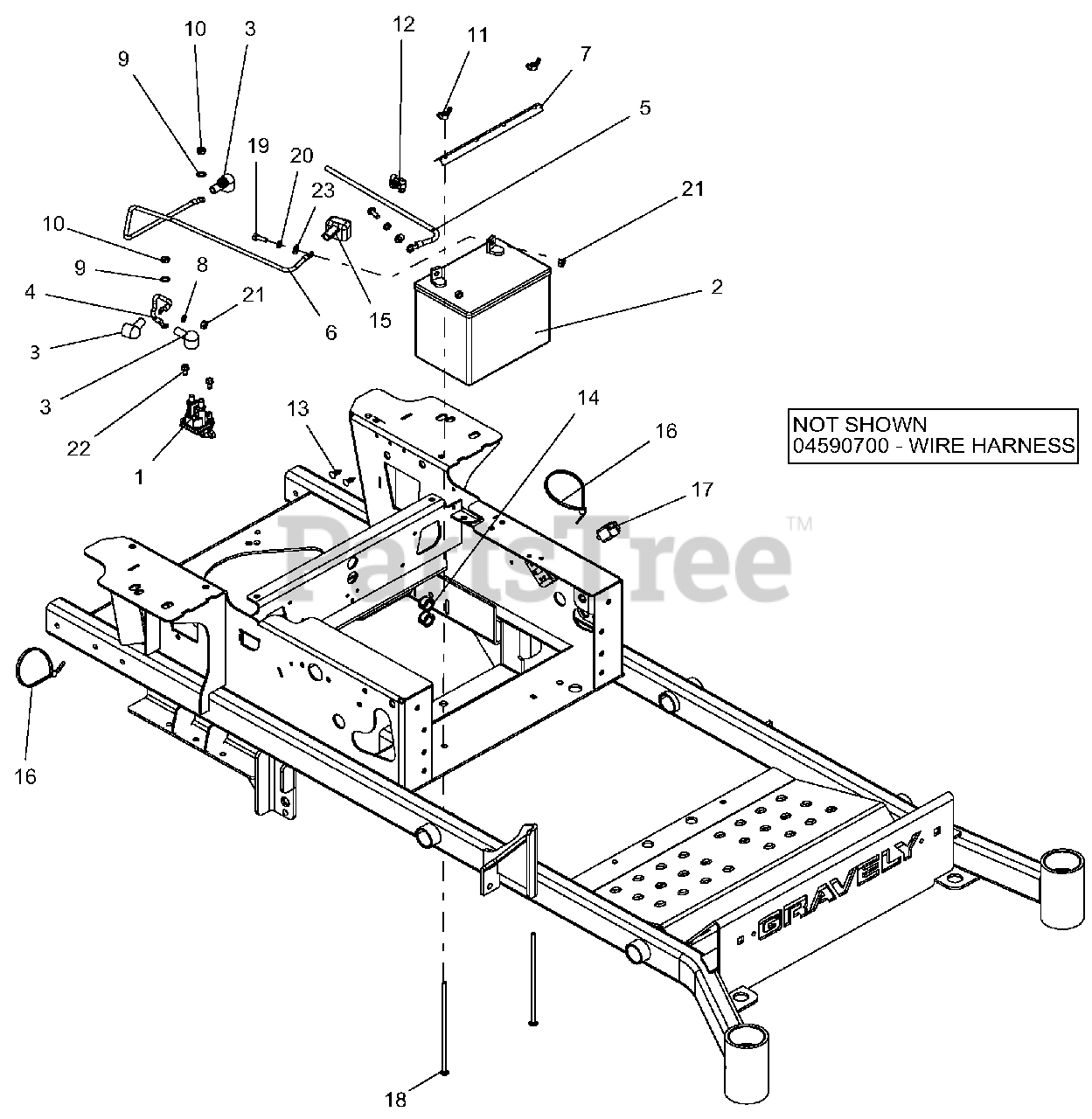

991208 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 030000 - 039999) Electrical Parts Diagram

Pro-Turn 52" Zero-Turn Mower

Electrical Parts Diagram

  • Title
1

Gravely 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

2

Gravely 01554800

BATTERY,

$

$

Not available

3

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

4

Gravely 03286000

CABLE, POSITIVE BATTERY 9.00"

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 03288100

CABLE, NEGATIVE BATTERY 24"

$17.99

$

In Stock, only 2 left!

0

6

Gravely 03492500

CABLE, STARTER .31 X 23.00 X .31

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 03494051

HOLD DOWN - BLK

$11.99

$

In Stock, only 2 left!

0

8

Gravely 06306800

@, WSHR-LK-EXT.262X.502X.026 YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 06307200

WSHR-LK-EXT .326X.599X.031 YWZC REV
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 06536700

NUT-JAM
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

11

Gravely 06537500

NUT-LOCKING WING 1/4-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 07001622

CLIP, T, .31-.38

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 18

0

14

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

15

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

17

Gravely 03252300

SWITCH, SINGLE POLE N.O.

$13.99

$

In Stock, only 1 left!

0

18

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 G2 YWZC
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

22

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 04590700

WIRE HARNESS (NOT SHOWN)

Note: (NOT SHOWN)

$206.99

$

Usually ships in 4-12 days

0
