991208 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 030000 - 039999) Belt Covers - 52 Inch Deck Parts Diagram

Pro-Turn 52" Zero-Turn Mower

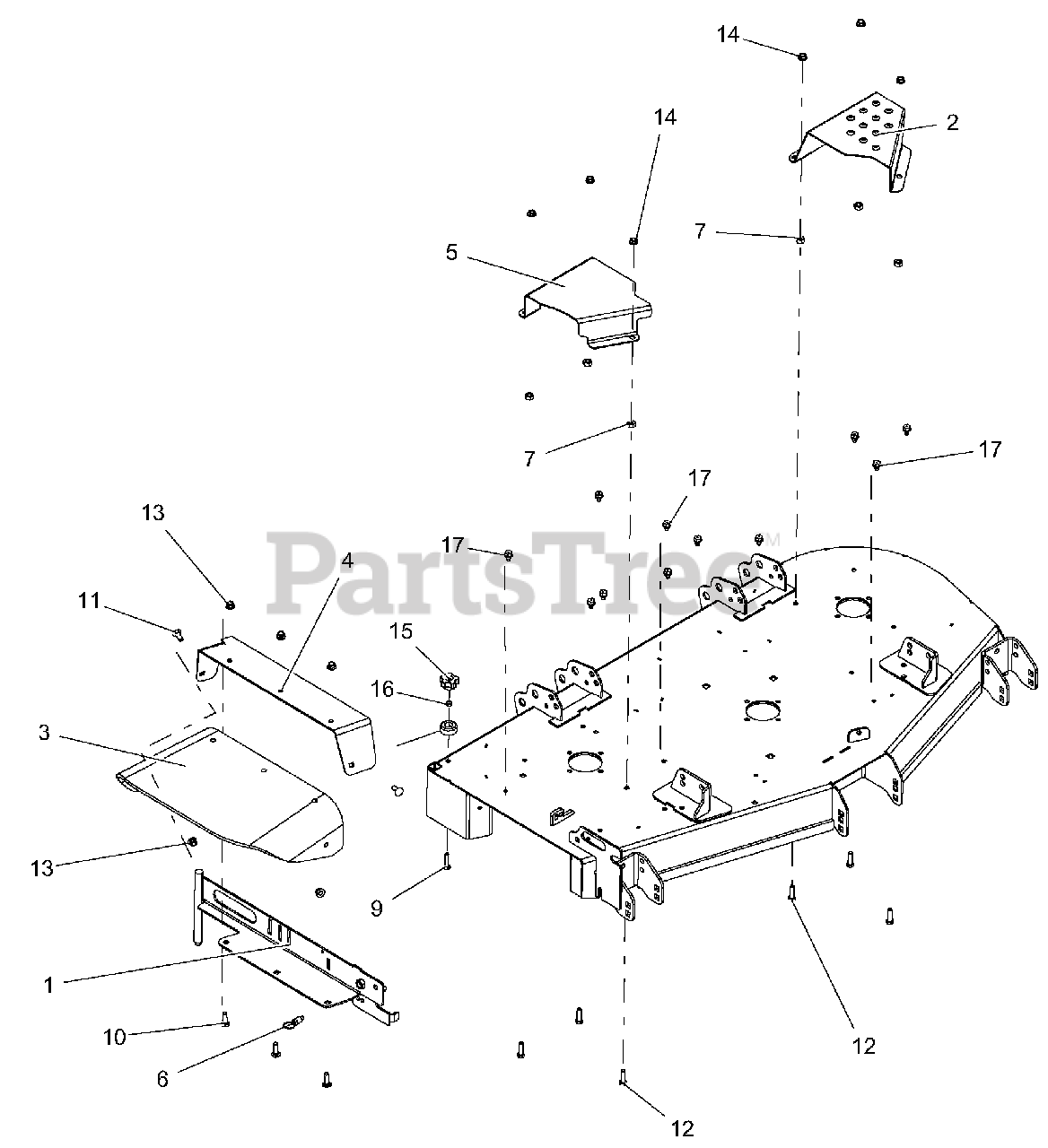

Belt Covers - 52 Inch Deck Parts Diagram

  • Title

1

Gravely 00980553

WLDMT, 52"-60" DISCH CHUTE MTG-RED
(Superseded to 04727953)

$129.99

$

In Stock, only 2 left!

0

2

Gravely 03977151

GUARD, 44-52" LH DECK BELT-BLACK

$90.99

$

In Stock, only 1 left!

0

3

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, Qty 16

0

4

Gravely 59104400

KIT, PT DISCH CHUTE SUPT W/SAFETY DECALS-RED

$

$

Not available

5

Gravely 04590251

GUARD, 48"-52" RH DECK BELT-BLACK

$56.99

$

In Stock, only 2 left!

0

6

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$10.99

$

In Stock, only 1 left!

0

7

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07500009

BUMPER, RECESSED 1.50 X .63 W/.31 HOLE

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

11

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

12

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07534800

KNOB, CLAMPING

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
