991206 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki, CARB (SN: 020000 - 029999) Transmission Drive Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki, CARB

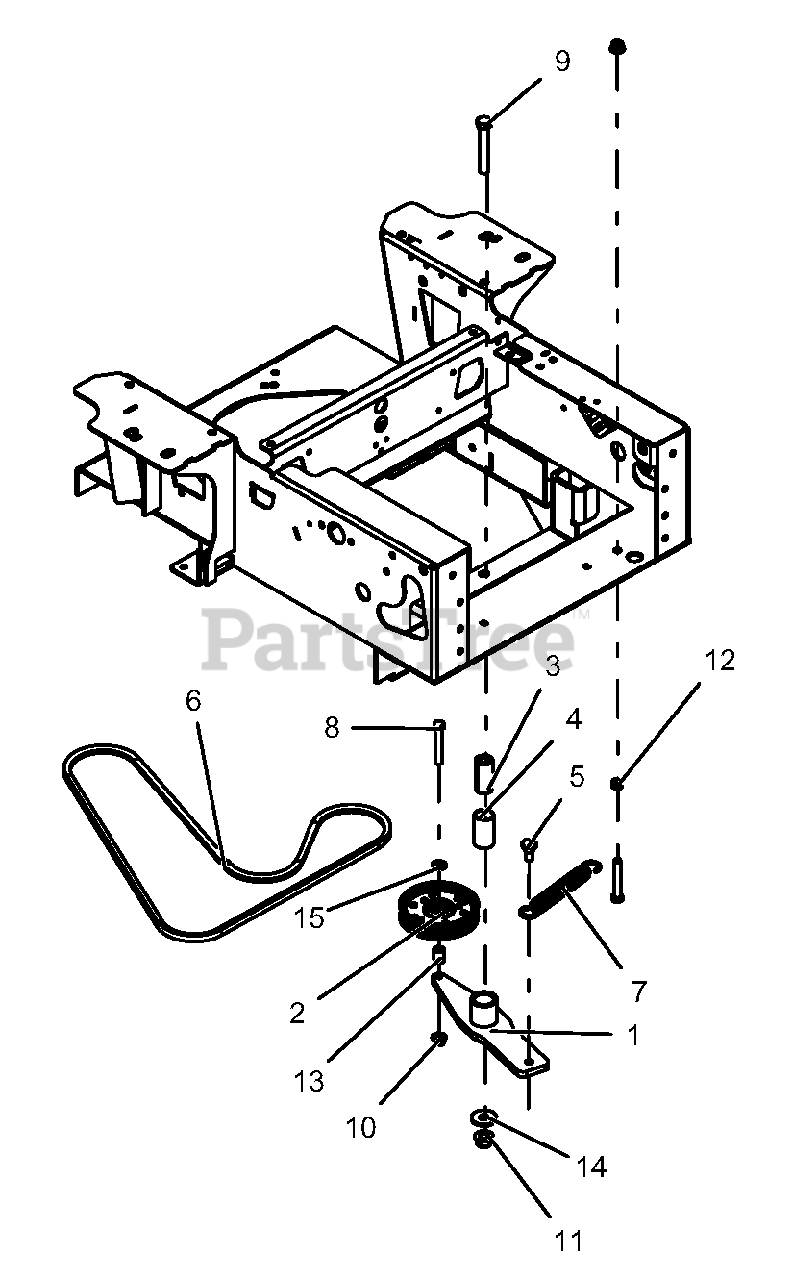

Transmission Drive Parts Diagram

  • Title

1

Gravely 02988651

WLDMT, HYDRO DRIVE IDLER ARM - BLK

$91.99

$

Usually ships in 4-12 days

0

2

Gravely 07300101

ASM, IDLER 4"

$62.99

$

In Stock, Qty 20+

0

3

Gravely 01581700

BSHG, SPCR .502X.997X2.03

$5.99

$

In Stock, Qty 20+

0

4

Gravely 05500123

BSHG, 1.00X1.125X1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

5

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

6

Gravely 07226400

BELT, V-A-COGGED

$52.99

$

In Stock, Qty 10

0

7

Gravely 08300507

SPRG, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

8

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05525700

BSHG-SLV .407X.625X.750

$7.49

$

In Stock, only 1 left!

0

14

Gravely 06436400

WSHR-FL-STL .511X1.441x.125 YWZC
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06436200

WSHR-FL-STL .406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
