991205 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki, CARB (SN: 030000 - 039999) Fuel System - CARB Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki, CARB

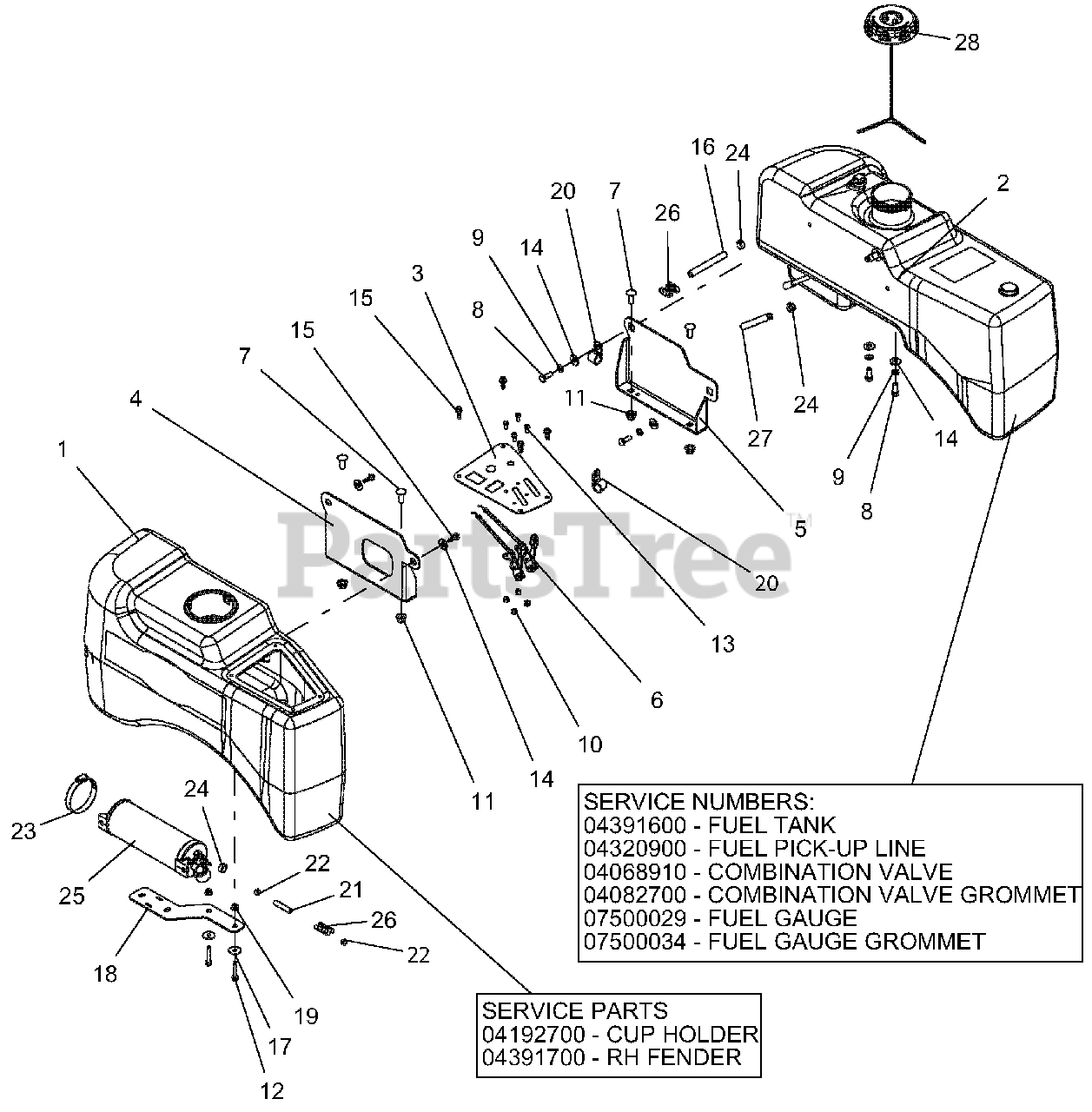

Fuel System - CARB Parts Diagram

  • Title

1

Gravely 04685900

ASM, FENDER W/CUPHOLDER

$339.99

$

Usually ships in 4-12 days

0

1

Gravely 04192700

CUP HOLDER

$

$

Not available

1

Gravely 04391700

RH FENDER
(Superseded to 04685900)

$339.99

$

Usually ships in 4-12 days

0

2

Gravely 04334500

HD, FUEL TANK ASSEMBLY
(Superseded to 04739000)

$594.99

$

Usually ships in 4-12 days

0

2

Gravely 04391600

FUEL TANK
(Superseded to 04739000)

$594.99

$

Usually ships in 4-12 days

0

2

Gravely 04320900

FUEL PICK-UP LINE

$39.99

$

In Stock, Qty 20+

0

2

Gravely 04068910

COMBINATION VALVE
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

2

Gravely 04082700

COMBINATION VALVE GROMMET

$3.49

$

In Stock, Qty 9

0

2

Gravely 07500029

FUEL GAUGE
(Superseded to 07500309)

$

$

Not available

2

Gravely 07500034

FUEL GUAGE GROMMET

$6.49

$

In Stock, Qty 7

0

3

Gravely 04391851

PANEL, INSTRUMENT-BLACK

$

$

Not available

4

Gravely 04538753

BRKT, RH HD FUEL TANK MTG-RED

$

$

Not available

5

Gravely 04538853

BRKT, LH HD FUEL TANK MTG-RED

$

$

Not available

6

Gravely 06900422

CABLE, CONTROL

$39.99

$

In Stock, only 1 left!

0

7

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05947800

BLT-HEX .31-18X.875 GR5 YWZC
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07400007

SCR-TAP .25-20X1.50 HWH TR YZ

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YCWZ
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06100213

SCR-PLASTITE .25-10X.75 YWZC
(Superseded to 06100231)

$1.49

$

In Stock, Qty 6

0

16

Gravely 03278100

.25 LOW-PERM GAS HOSE 40.00" LG - TANK TO CARB CANISTER

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06426600

WSHR-FL-STL .281X1.000X.063 YWZC
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 04546051

PLATE, CANISTER MTG-BLACK

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

20

Gravely 06900036

CLAMP, CUSHIONED STE5EL .7

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 04097700

CLAMP - HOSE, SPRING .188

$

$

Not available

23

Gravely 06940200

CLAMP, HOSE 2.32/3.

$

$

Not available

24

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

25

Gravely 04545900

CANISTER, CARBON 9.3 GAL

$78.99

$

Usually ships in 4-12 days

0

26

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available

27

Gravely 03278100

.25 LOW-PERM GAS HOSE 18.50" LG - TANK TO ENGINE

$1.49

$

In Stock, Qty 20+

0

28

Gravely 04558100

CAP, NON NONVENT AUTOLOCK

$22.99

$

Usually ships in 4-12 days

0
