991203 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 040000 & Above) Fuel System - Non-CARB Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

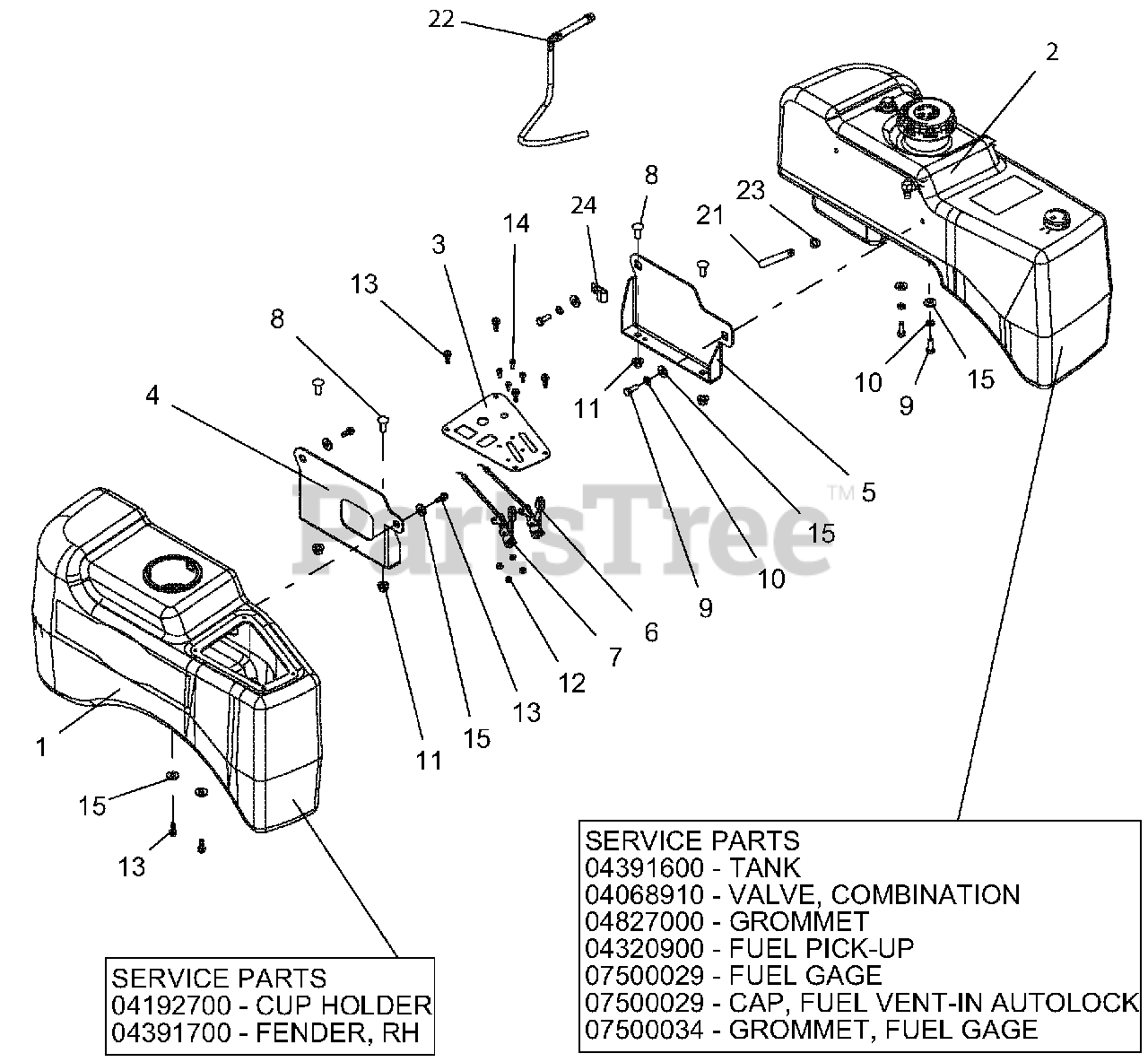

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 04685900

ASM, FENDER W/CUPHOLDER

$339.99

$

Usually ships in 4-12 days

0

1

Gravely 04192700

CUP HOLDER

$

$

Not available

1

Gravely 04391700

FENDER, RH
(Superseded to 04685900)

$339.99

$

Usually ships in 4-12 days

0

2

Gravely 04739000

HD, FUEL TANK ASSEMBLY

$594.99

$

Usually ships in 4-12 days

0

2

Gravely 04391600

TANK
(Superseded to 04739000)

$594.99

$

Usually ships in 4-12 days

0

2

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

2

Gravely 04827000

GROMMET

$27.99

$

Usually ships in 4-12 days

0

2

Gravely 04320900

FUEL PICK-UP

$39.99

$

In Stock, Qty 20+

0

2

Gravely 07500029

FUEL GAGE
(Superseded to 07500309)

$

$

Not available

2

Gravely 07500029

CAP, FUEL VENT-IN AUTOLOCK
(Superseded to 07500309)

$

$

Not available

2

Gravely 07500034

GROMMET, FUEL GAGE

$6.49

$

In Stock, Qty 7

0

3

Gravely 04391851

PANEL, INSTRUMENT-BLACK

$

$

Not available

4

Gravely 04538753

BRKT, RH HD FUEL TANK MTG-RED

$

$

Not available

5

Gravely 04538853

BRKT, LH HD FUEL TANK MTG-RED

$

$

Not available

6

Gravely 06900534

CABLE, CONTROL

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 06900422

CABLE, CONTROL

$39.99

$

In Stock, only 1 left!

0

8

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947800

BLT-HEX .31-18X.875 GR5 YWZC
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

10

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06100213

SCR-PLASTITE .25-10X.75 YWZC
(Superseded to 06100231)

$1.49

$

In Stock, Qty 6

0

14

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 03278100

.25 LOW-PERM GAS HOSE 27.50" LG - TANK TO ENGINE

$1.49

$

In Stock, Qty 20+

0

22

Gravely 04552300

ASM, PTS BRIGGS FUEL TANK VENT HOSE

$

$

Not available

23

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 5

0
