991203 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) Tire Assembly Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

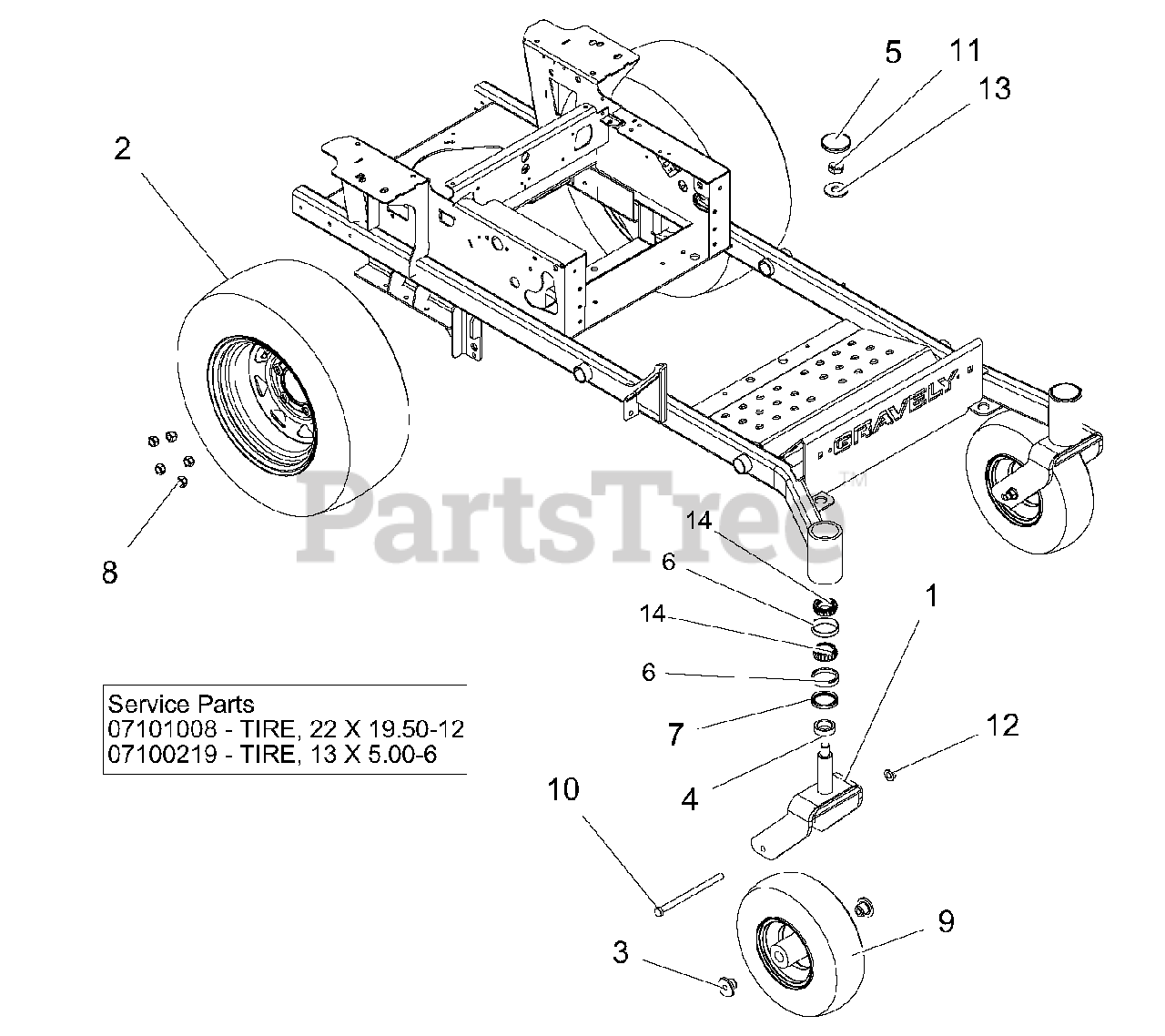

Tire Assembly Parts Diagram

  • Title

1

Gravely 04539353

WLDMT, CASTER FORK-RED

$150.99

$

Usually ships in 4-12 days

0

2

Gravely 07101007

TIRE/WHEEL, ASSEMBLY 22X9.5-12

$239.99

$

Usually ships in 4-12 days

0

3

Gravely 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

4

Gravely 03760300

SPACER-1.258 ID X 1.750 OD X .550

$32.99

$

Usually ships in 4-12 days

0

5

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

6

Gravely 05404600

BRG, CUP 2.328X.465

$13.99

$

In Stock, only 2 left!

0

7

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

8

Gravely 06517600

NUT, 1/2-20 LUG C
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07100835

TIRE/WHEEL, ASM , 13X5-6
(Superseded to 07101111)

$119.99

$

In Stock, Qty 20+

0

10

Gravely 05978200

@BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

11

Gravely 06536900

@NUT-LK-CTR-JAM .75-16 YWZC

$5.99

$

In Stock, only 3 left!

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06439800

@WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

14

Gravely 05404700

BRG, CONE 1.25 X .66

$20.99

$

In Stock, Qty 20+

0
