991192 (Pro-Turn Z 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro (SN: 040000 & Above) Seat Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro

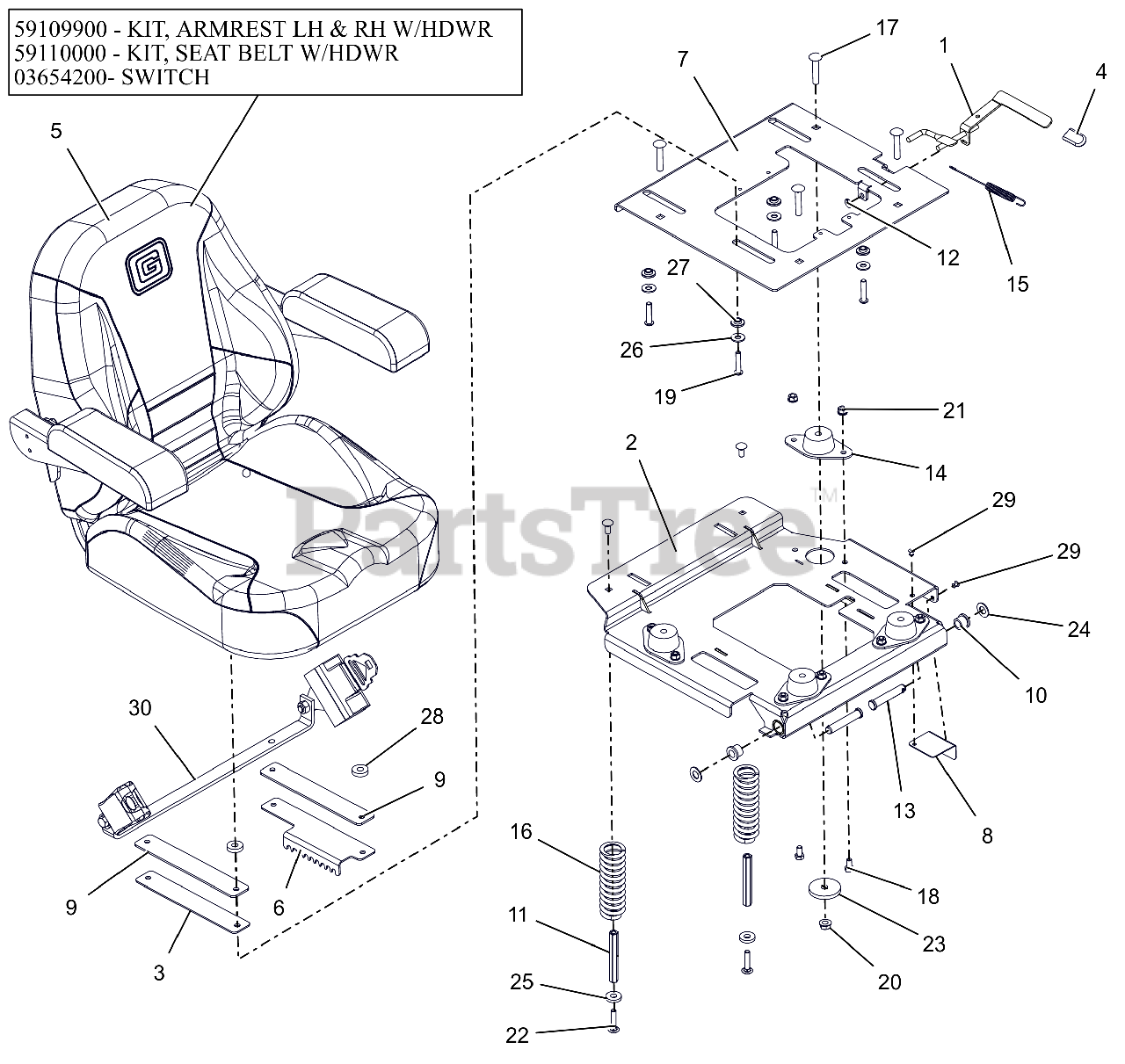

Seat Parts Diagram

  • Title

1

Gravely 05015251

WLDMT, SEAT SLIDE LEVER

$

$

Not available

2

Gravely 05265451

WLDMT, ISO MTG PLATE (BLACK)

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

5

Gravely 05007300

SEAT,HD

$555.99

$

Usually ships in 4-12 days

0

5

Gravely 59109900

KIT, LH&RH ARM REST-05007300

Note: SERVICE PART

$185.99

$

In Stock, only 1 left!

0

5

Gravely 59110000

KIT-SEAT BELT REPLACE-05007300

Note: SERVICE PART

$140.99

$

Usually ships in 4-12 days

0

5

Gravely 03654200

SWITCH- SEAT

Note: SERVICE PART

$

$

Not available

6

Gravely 05015151

PLATE, HD SEAT ADJUSTMENT

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 05133553

PLATE, SEAT MOUNTING (ISO KIT) (RED)

$68.99

$

Usually ships in 4-12 days

0

8

Gravely 05265551

GUARD, SEAT FAN (SH)(BLACK)

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 05158051

SPCR, SEAT

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$5.99

$

In Stock, only 2 left!

0

11

Gravely 06500828

NUT, COUPLING 5/16X18 X 3.75

$12.99

$

In Stock, only 2 left!

0

12

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06800202

PIN, SLIC-.500X42.70X2.31 -ZC

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 07500237

MOUNT, FAIL-SAFE COMPRESSION

$34.99

$

Usually ships in 4-12 days

0

15

Gravely 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 12

0

16

Gravely 08300704

SPRING, COMPRESSION SEAT 224LB

$

$

Not available

17

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

18

Gravely 05901832

BLT, HEX .31-18X.625 G5 ZCC

$

$

Not available

19

Gravely 05901727

SCR,BTNHD .31-18X1.50 ZCC

$3.99

$

In Stock, only 2 left!

0

20

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

23

Gravely 06401212

WSHR-FL-STL 0.406X2X0.25 ZCC

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06401125

WSHR, FLT .390X1.00X.250 ZCC

$2.99

$

In Stock, only 2 left!

0

29

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available

30

Gravely 59110000

KIT-SEAT BELT REPLACE-05007300

$140.99

$

Usually ships in 4-12 days

0
