991190 (Pro-Turn Z 60) - Gravely Pro-Turn 60" Zero-Turn Mower, 764cc Loncin (SN: 000101 - 024999) ROPS Parts Diagram

Pro-Turn 60" Zero-Turn Mower, 764cc Loncin

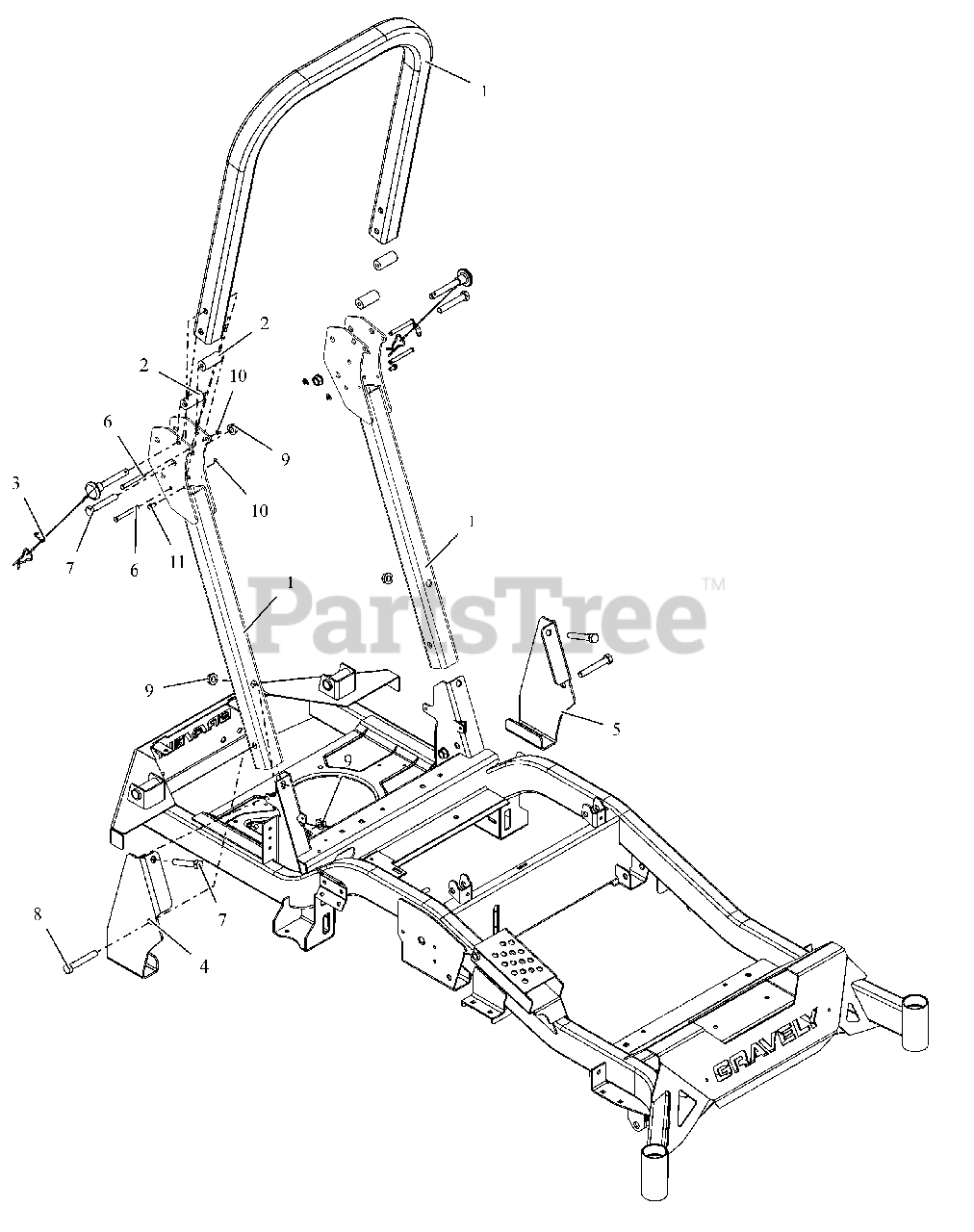

ROPS Parts Diagram

  • Title
1

Gravely 59113900

ROPS, REPLACEMENT
(Superseded to 59114400)

$678.99

$

Usually ships in 4-12 days

0

2

Gravely 04884200

BUMPER, ROPS ANTI-VIBRATION

$

$

Not available

3

Gravely 04898200

PIN, ROPS W/LANYARD

$19.99

$

In Stock, only 1 left!

0

4

Gravely 05116451

BRKT, ROPS SUPPORT - RH

$38.99

$

Usually ships in 4-12 days

0

5

Gravely 05116551

BRKT, ROPS SUPPORT -LH

$38.99

$

Usually ships in 4-12 days

0

6

Gravely 06800127

PIN, 5/16 X 2-9/16 WITH GROOVE
(Superseded to 07001826)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

8

Gravely 05901634

BLT,HEX .50-13X3.25 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05700222

RING, RETAINING-E .312 X .025

$

$

Not available

11

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
