991190 (Pro-Turn Z 60) - Gravely Pro-Turn 60" Zero-Turn Mower, 764cc Loncin (SN: 000101 - 024999) Parking Brake Parts Diagram

Pro-Turn 60" Zero-Turn Mower, 764cc Loncin

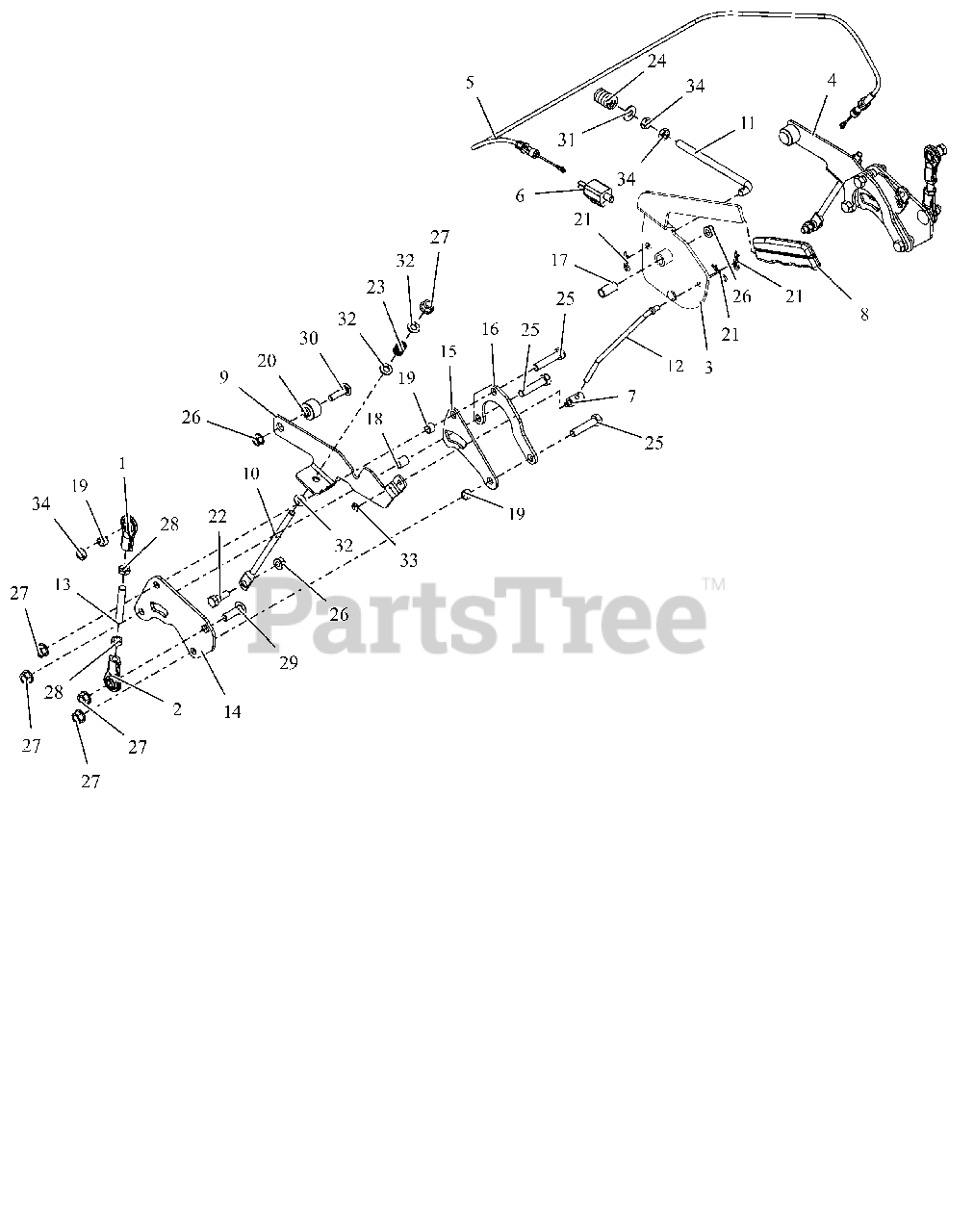

Parking Brake Parts Diagram

  • Title

1

Gravely 03563100

ROD END, .38 RH

$15.99

$

In Stock, only 2 left!

0

2

Gravely 03668700

END, ROD-.38 LH

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 04998551

LEVER, PARKING BRAKE

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 04998600

ARM, BRAKE - LH (W/PIN)

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 06900640

CABLE, BRAKE
(Superseded to 06900706)

$26.99

$

In Stock, Qty 20+

0

6

Gravely 03252300

SWITCH, SINGLE POLE N.O.

$13.99

$

In Stock, only 1 left!

0

7

Gravely 03764800

TRUNION, 1/4-20

$13.99

$

In Stock, Qty 20+

0

8

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 04998700

ARM, BRAKE-RH

$30.99

$

In Stock, only 1 left!

0

10

Gravely 04999000

ROD, LINK - TRANSMISSION BRAKE

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 04999100

ROD, OVER CENTER

$10.99

$

In Stock, only 4 left!

0

12

Gravely 05000600

ROD, BRAKE LINK

$12.99

$

In Stock, Qty 20+

0

13

Gravely 05001000

ROD, STEERING LINK

$8.49

$

Usually ships in 4-12 days

0

14

Gravely 05019951

BRKT, TRANSAXLE STEERING

$25.99

$

Usually ships in 4-12 days

0

15

Gravely 05067751

BRKT-SPACER

$

$

Not available

16

Gravely 05104951

PLATE, REAR REINFORCING

$

$

Not available

17

Gravely 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

18

Gravely 05501226

SPCR, SLV .385X.500X.652

$3.49

$

In Stock, only 2 left!

0

19

Gravely 05501235

SPCR, SLV .385X.500X.350

$1.49

$

In Stock, Qty 11

0

20

Gravely 05501315

SPCR, FLANGE

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07001734

BOLT,SHLDR .38X.25 -.31-18X.75

$

$

Not available

23

Gravely 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 6

0

24

Gravely 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 17

0

25

Gravely 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06500739

NUT, HEX-JAM .38-24 ZCC

$2.49

$

In Stock, only 1 left!

0

29

Gravely 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

30

Gravely 06200310

BTL,RHSSN .313-18 X 1.25 G5 ZCC

$1.49

$

In Stock, Qty 5

0

31

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

33

Gravely 05700125

RG-RTNG-EXT .250X.025

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0
