991190 (Pro-Turn Z 60) - Gravely Pro-Turn 60" Zero-Turn Mower, 764cc Loncin (SN: 000101 - 024999) Engine Guard And Fenders Parts Diagram

Pro-Turn 60" Zero-Turn Mower, 764cc Loncin

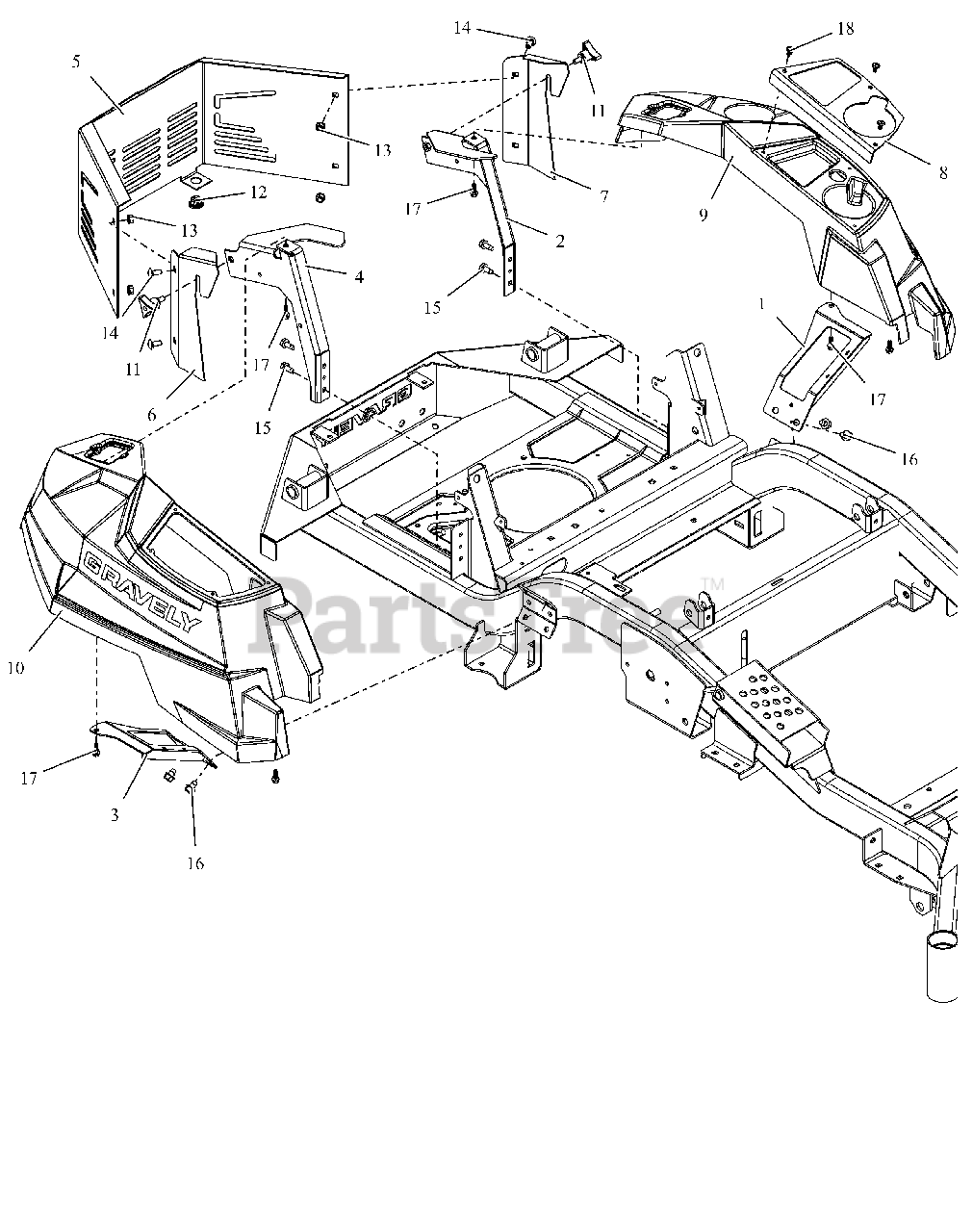

Engine Guard And Fenders Parts Diagram

  • Title

1

Gravely 05095151

WLDMT, LH FENDER MOUNT

$20.99

$

Usually ships in 4-12 days

0

2

Gravely 05074353

BRKT, LH FENDER MTG

$82.99

$

Usually ships in 4-12 days

0

3

Gravely 05105151

WLDMT, RH FENDER MOUNT

$23.99

$

Usually ships in 4-12 days

0

4

Gravely 05074253

BRKT, RH FENDER MTG

$37.99

$

Usually ships in 4-12 days

0

5

Gravely 05073151

GUARD, HD ENGINE

$90.99

$

Usually ships in 4-12 days

0

6

Gravely 05073253

TRIM, HOOD STYLE (RIGHT)

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 05073353

TRIM, HOOD STYLE (LEFT)

$29.99

$

Usually ships in 4-12 days

0

8

Gravely 05077853

PANEL, HD

$38.99

$

Usually ships in 4-12 days

0

9

Gravely 59113700

KIT, FENDER W/FUEL DECAL-HD

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 05138800

FENDER, RH HD (2017) SHRT BOSS

$40.99

$

Usually ships in 4-12 days

0

11

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

12

Gravely 07500407

GROMMET, 10MM BOLLHOFF

$5.99

$

In Stock, only 2 left!

0

13

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

15

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

16

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06100231

SCR, PLASTITE-HWH 0.25 X 0.75 ZC120

$1.49

$

In Stock, Qty 6

0

18

Gravely 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.49

$

In Stock, only 3 left!

0
