991188 (Pro-Turn Z 52) - Gravely Pro-Turn 52" Zero-Turn Mower, 764cc Loncin (SN: 025000 - 029999) Deck Lift - RH Parts Diagram

Pro-Turn 52" Zero-Turn Mower, 764cc Loncin

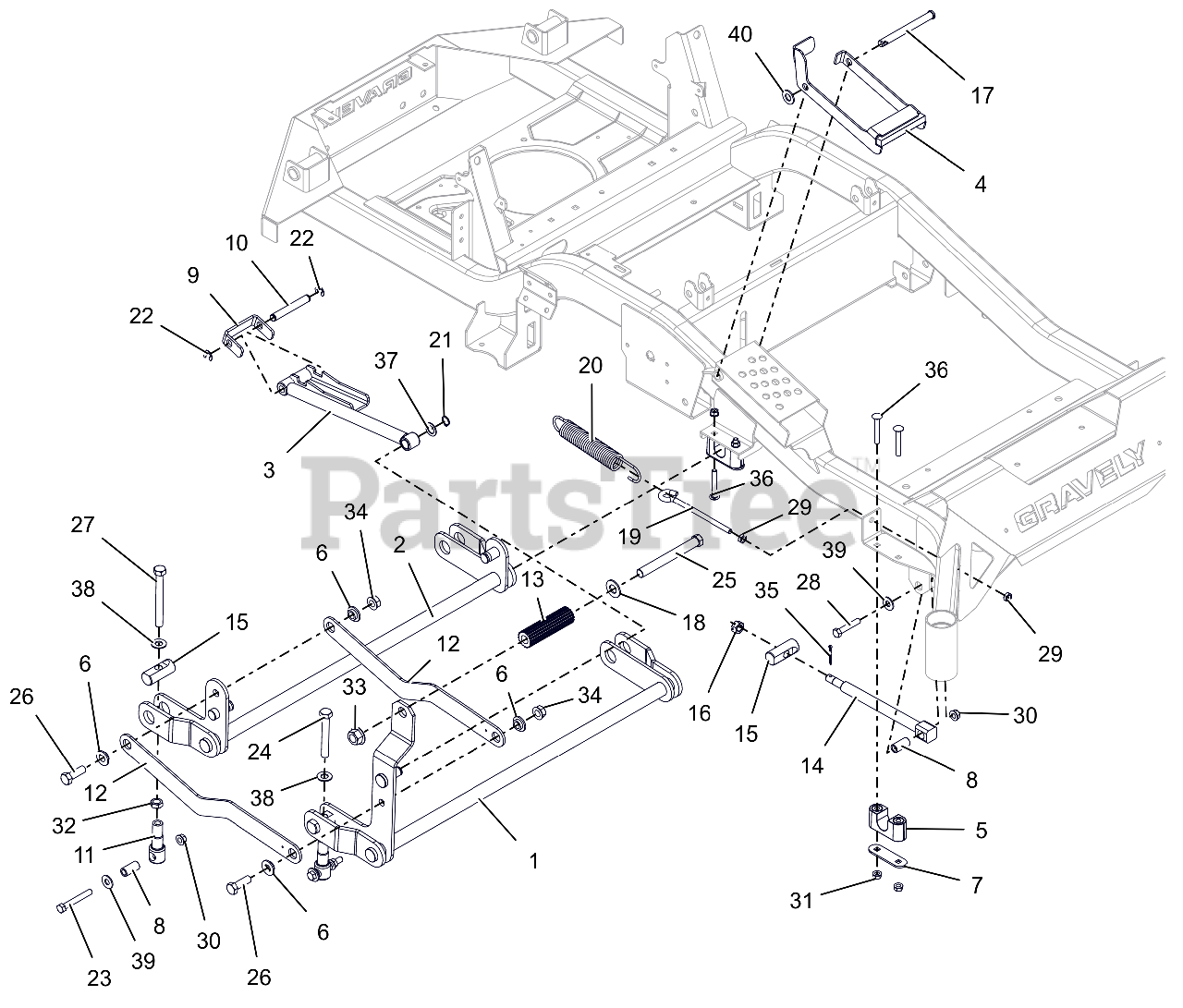

Deck Lift - RH Parts Diagram

  • Title

1

Gravely 05019653

WLDMT, FRONT DECK LIFT PIVOT

$140.99

$

In Stock, only 1 left!

0

2

Gravely 05019753

WLDMT, REAR DECK LIFT PIVOT

$131.99

$

Usually ships in 4-12 days

0

3

Gravely 05186353

WLDMT, HOC ARM

$

$

Not available

4

Gravely 05025253

BRKT, HOC TRANSFER LOCK

$

$

Not available

5

Gravely 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 1 left!

0

6

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

7

Gravely 04766551

PLATE, BEARING SUPPORT

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05077551

BRKT, HOC LINE

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 05077700

ROD, HOC PIVOT
(Superseded to 05800210)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 10

0

12

Gravely 05083953

LINK, DECK LIFT

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 05120951

ROD, FOOT PEDAL (BLACK)

$

$

Not available

14

Gravely 05126700

DRAG,LINK-HD

$18.99

$

In Stock, only 1 left!

0

15

Gravely 05149500

PIN, DECK LIFT

$15.99

$

In Stock, Qty 20+

0

16

Gravely 06505000

NUT-SL .50-13

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06800201

PIN, SLIC-.500X4.97X4.55 -ZC

$7.99

$

In Stock, only 3 left!

0

18

Gravely 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 07001814

BOLT,.38-16 X 5.25-.62 DIA EYE

$13.99

$

Usually ships in 4-12 days

0

20

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

21

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05901735

BLT, HEX 0.5-13X3.5F GR5 ZCC

$5.99

$

In Stock, only 2 left!

0

25

Gravely 05901730

BLT, HEX .62-11X5.50 G5 FBP

$6.99

$

Usually ships in 4-12 days

0

26

Gravely 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 05901736

BLT, HEX .50-13X4.50F G8 ZCC

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

29

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06500835

NUT,FLG-TOP LK .625-11 FBP

$6.99

$

Usually ships in 4-12 days

0

34

Gravely 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0
