991186 (ZT HD 60) - Gravely 60" Zero-Turn Mower, 24hp Kawasaki FR, CARB (SN: 000101 - 000103) Electrical Parts Diagram

60" Zero-Turn Mower, 24hp Kawasaki FR, CARB

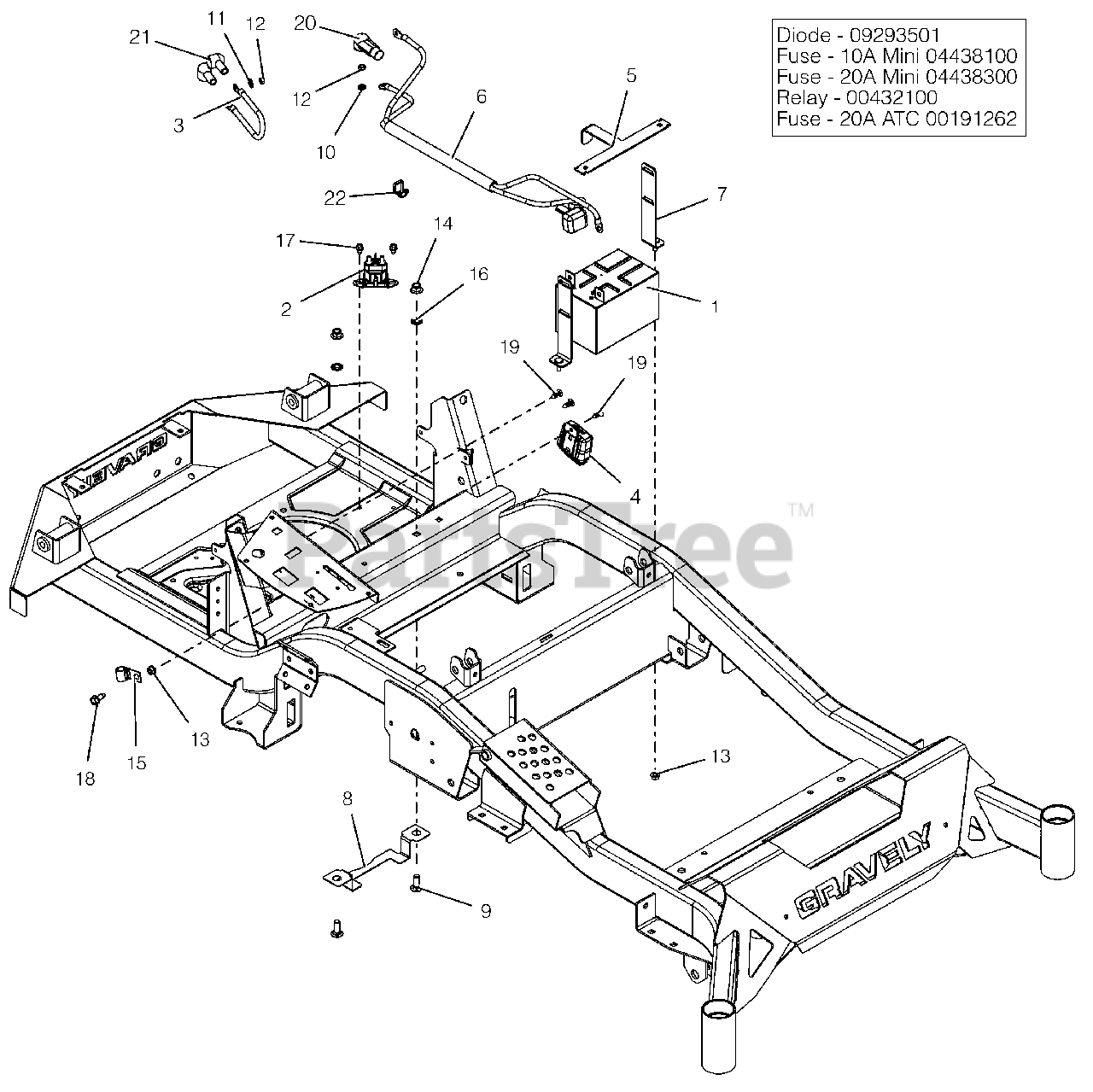

Electrical Parts Diagram

  • Title
1

Gravely 04738800

BATTERY, 12V 12A-190CCA

$122.99

$

In Stock, Qty 20+

0

2

Gravely 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 2 left!

0

3

Gravely 04783300

CABLE, POS W/(2)1/4 RING 9.0LG

$5.99

$

In Stock, only 1 left!

0

4

Gravely 05011700

HARNESS, WIRE

$148.99

$

Usually ships in 4-12 days

0

4

Gravely 09293501

DIODE, CONNECTOR SHELL

Note: SERVICE PART

$11.99

$

In Stock, only 2 left!

0

4

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: SERVICE PART

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: SERVICE PART

$

$

Not available

4

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: SERVICE PART

$22.99

$

In Stock, Qty 20+

0

4

Gravely 00191262

FUSE, 20 AMP BLADE S/O

Note: SERVICE PART

$14.99

$

In Stock, only 1 left!

0

5

Gravely 05031551

BRKT, BATTERY TIE DOWN
(Superseded to 05031500)

$12.99

$

In Stock, only 1 left!

0

6

Gravely 05074100

HARNESS, BATTERY HD

$56.99

$

Usually ships in 4-12 days

0

7

Gravely 05107451

WMT,BATTERY MOUNT HOLD DOWN
(Superseded to 05107400)

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 05111451

GUARD, ELECTRICAL HARNESS

$10.99

$

In Stock, only 1 left!

0

9

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

10

Gravely 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06539800

NUT-HEX M6X1.0 YWZC
(Superseded to 06500925)

$

$

Not available

13

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 07009900

NUT-PUSH .38 DIA. PAL ZINC

$1.99

$

In Stock, only 1 left!

0

17

Gravely 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

19

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 16

0

20

Gravely 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

22

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0
