991182 (ZT HD 48) - Gravely 48" Zero-Turn Mower, 23hp Kawasaki FR, CARB (SN: 015000 & Above) Rear Tires And Transaxles - 44" And 48" Parts Diagram

48" Zero-Turn Mower, 23hp Kawasaki FR, CARB

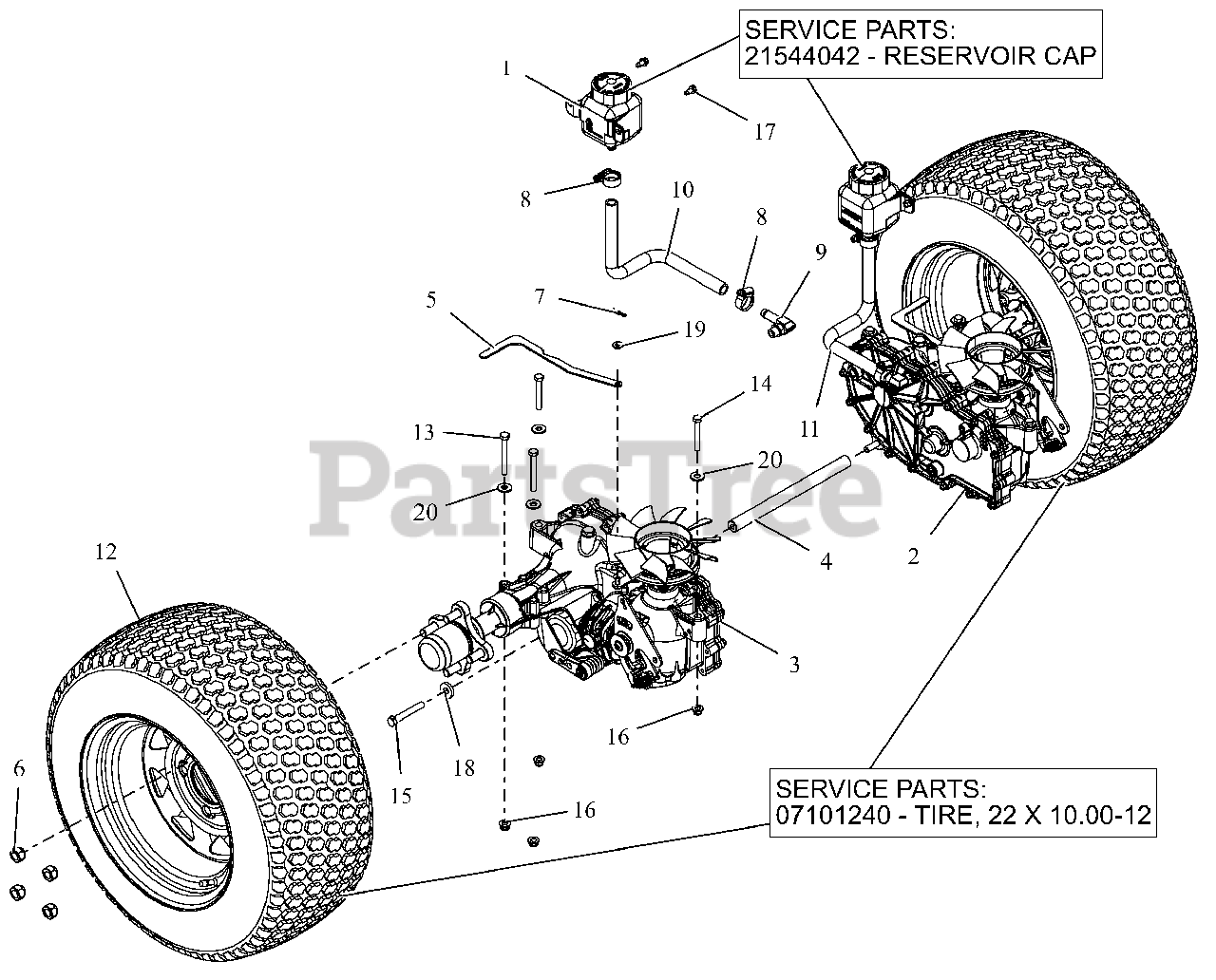

Rear Tires And Transaxles - 44" And 48" Parts Diagram

  • Title
1

Gravely 02970200

TANK, EXPANSION

$34.99

$

In Stock, only 2 left!

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 05002900

TRANSAXLE, ZT3100 LH
(Superseded to 09158700)

$1568.99

$

Usually ships in 4-12 days

0

3

Gravely 05003000

TRANSAXLE, ZT3100 RH
(Superseded to 09158800)

$1564.99

$

Usually ships in 4-12 days

0

4

Gravely 05012900

SHAFT, TRANSAXLE SUPPORT

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 05076751

BRKT, VALVE DUM

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

9

Gravely 07001528

FITTING, HYD (90 DEG)

$

$

Not available

10

Gravely 07001803

HOSE, FORMED EXPANSION -HD RH

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 07001804

HOSE, FORMED EXPANSION -HD LH

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 07101224

ASM, WHL/TIRE 22X10.00-12 K500

$273.99

$

Usually ships in 4-12 days

0

12

Gravely 07101240

TIRE, 22X10.00-12

Note: SERVICE PART

$136.99

$

In Stock, only 1 left!

0

13

Gravely 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
