991175 - Ariens Apex 52" Zero-Turn Mower, Kohler, CARB (SN: 015000 & Above) Deck, Belts, Blades And Spindles - 52" Parts Diagram

Apex 52" Zero-Turn Mower, Kohler, CARB

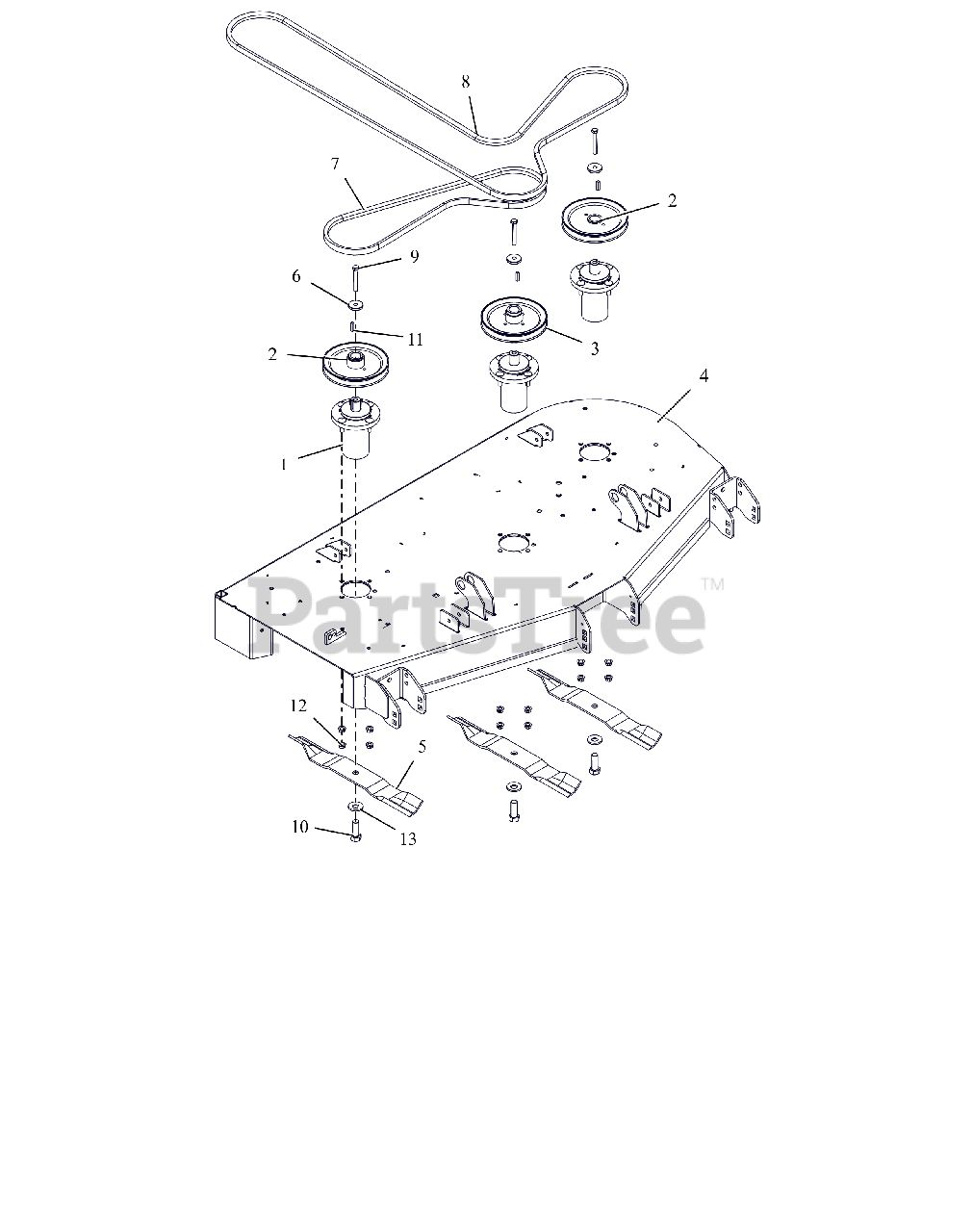

Deck, Belts, Blades And Spindles - 52" Parts Diagram

  • Title

1

Ariens 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

2

Ariens 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 13

0

3

Ariens 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

4

Ariens 59108000

KIT,DECK-52" W/DECALS - ARIENS

$

$

Not available

5

Ariens 03253800

BLADE, 18"

$28.99

$

In Stock, Qty 20+

0

6

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Ariens 07200806

V-BELT, B-COGGED

$40.99

$

Usually ships in 4-12 days

0

8

Ariens 07200816

V-BELT, HB SECTION

$119.99

$

In Stock, Qty 12

0

9

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

11

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 20+

0

12

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0
