991173 - Ariens Apex 48" Zero-Turn Mower, Kohler, CARB (SN: 015000 & Above) Belt Guards - 48" Parts Diagram

Apex 48" Zero-Turn Mower, Kohler, CARB

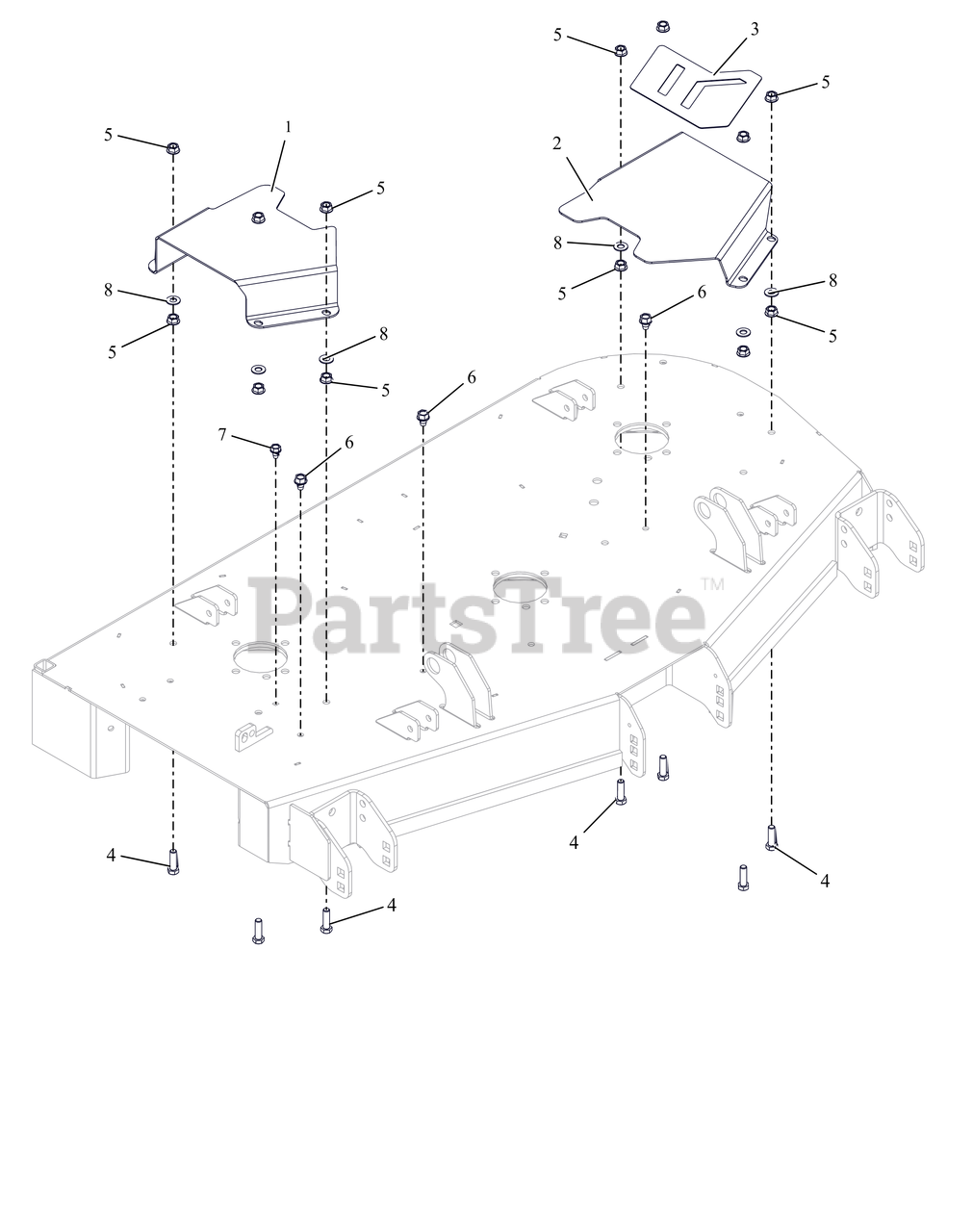

Belt Guards - 48" Parts Diagram

  • Title

1

Ariens 05075959

COVER, BELT 48" RIGHT

$

$

Not available

2

Ariens 05076059

COVER, BELT 48" LEFT

$59.99

$

Usually ships in 4-12 days

0

3

Ariens 05160000

GRIP TAPE 48 BELT COVER

$10.99

$

Usually ships in 4-12 days

0

4

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
