991166 (ZT HD 60) - Gravely 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 003696 - 014999) Deck, Belts, Blades And Spindles - 60" Parts Diagram

60" Zero-Turn Mower, 24hp Kawasaki FR

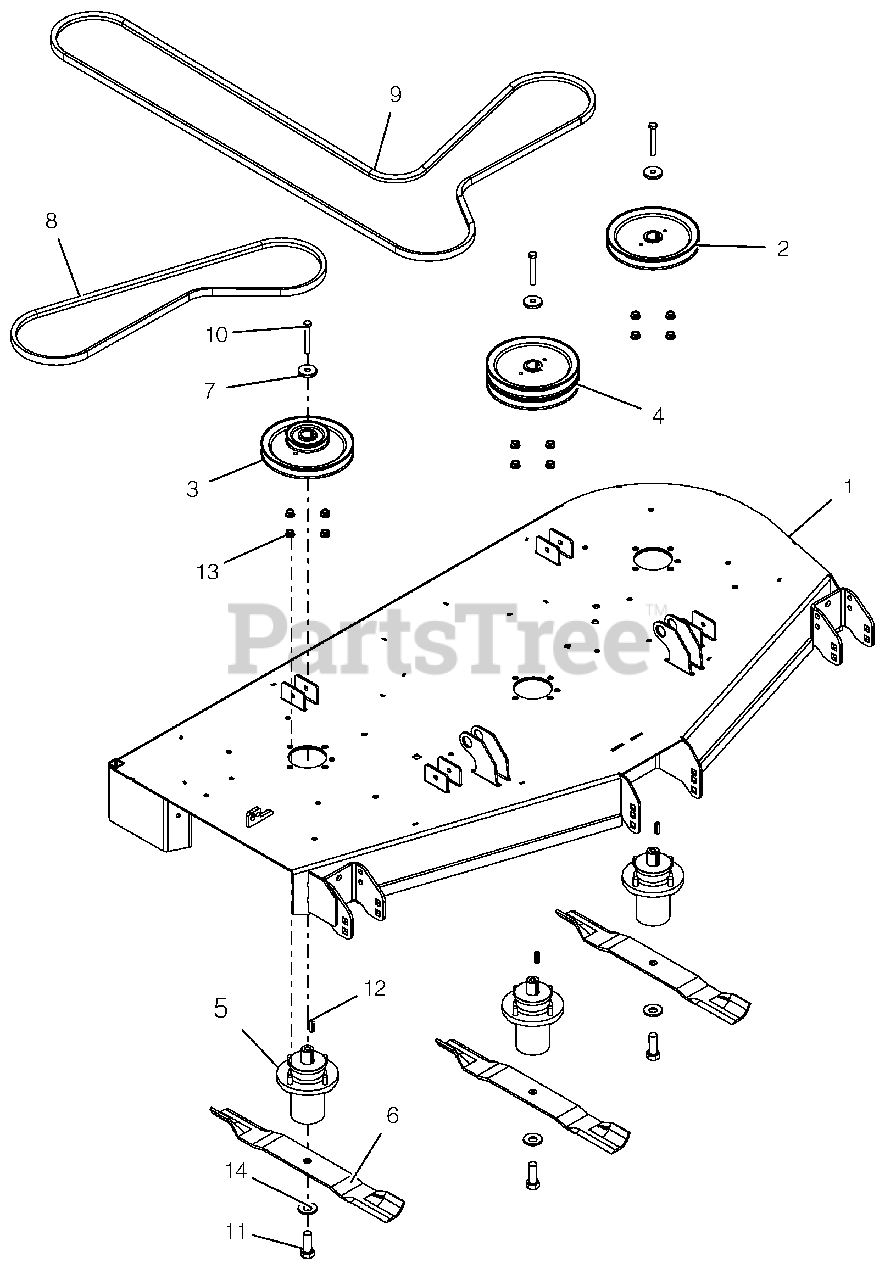

Deck, Belts, Blades And Spindles - 60" Parts Diagram

  • Title

1

Gravely 59108300

KIT,DECK-60" W/DECALS-GRAVELY

$

$

Not available

2

Gravely 07345967

PULLEY, V-7.50 OD X 1"ID
(Superseded to 07345900)

$70.99

$

In Stock, only 1 left!

0

3

Gravely 07346567

PULLEY, DOUBLE 1"ID X 7.50"OD & 3.50"OD (BLACK)

$103.99

$

In Stock, only 1 left!

0

4

Gravely 07346667

PULLEY, DOUBLE 1"X7.50"&7.50" (BLACK)
(Superseded to 07346600)

$91.99

$

In Stock, only 1 left!

0

5

Gravely 59109800

ASM, MAINT FREE SPINDLE ALUM
(Superseded to 58810800)

$239.99

$

In Stock, Qty 20+

0

6

Gravely 03253900

BLADE, 20.5"

$31.99

$

In Stock, Qty 20+

0

7

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

8

Gravely 07200807

V-BELT, B-COGGED

$48.99

$

In Stock, only 1 left!

0

9

Gravely 07200817

V-BELT, HB SECTION

$126.99

$

In Stock, only 2 left!

0

10

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

13

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0
