991164 (ZT HD 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 - 004199) Deck Lift - LH Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

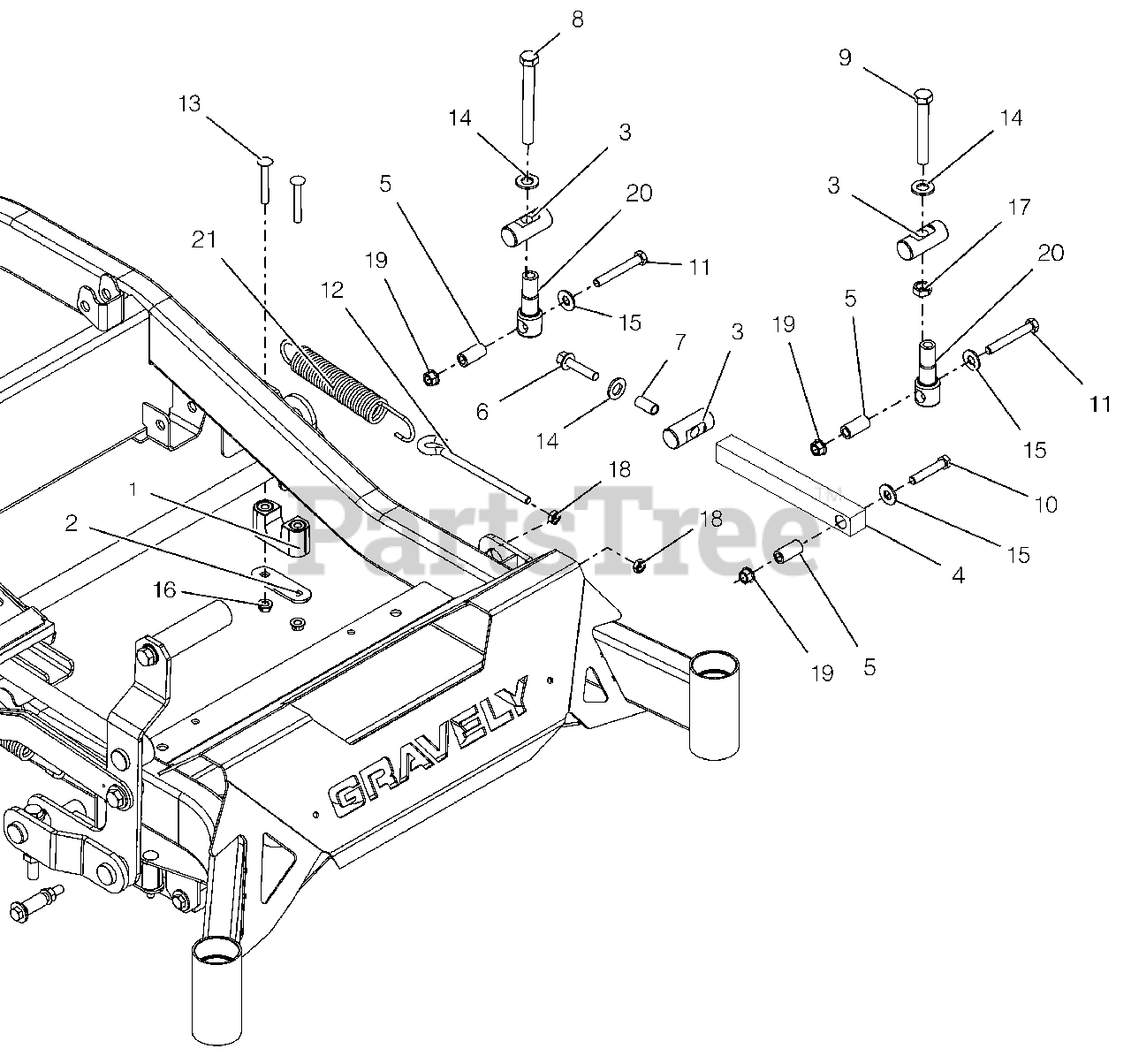

Deck Lift - LH Parts Diagram

  • Title
1

Gravely 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 1 left!

0

2

Gravely 04766551

PLATE, BEARING SUPPORT

$7.99

$

Usually ships in 4-12 days

0

3

Gravely 04877700

PIN, DECK LIFT
(Superseded to 05149500)

$15.99

$

In Stock, Qty 20+

0

4

Gravely 05090400

LINK, DRAG

$131.99

$

Usually ships in 4-12 days

0

5

Gravely 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

6

Gravely 05901719

BLT,HEX-FLG .38-16X1.75 G5 ZCC

$3.99

$

In Stock, only 4 left!

0

7

Gravely 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05900102

@BLT-HEX .5-13-4.5GR8 FULL THD
(Superseded to 05901736)

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 05901336

BLT-HEX .50-13X3.50 GR5 FTH

$

$

Not available

10

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

11

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07001814

BOLT,.38-16 X 5.25-.62 DIA EYE

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 06200226

BLT-RDHDSQSHNK .31-18X2.25 YWZ
(Superseded to 06200311)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 10

0

21

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0
