991163 - Ariens Apex 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 040000 - 049999) Engine - Kawasaki FR730 Parts Diagram

Apex 60" Zero-Turn Mower, 24hp Kawasaki FR

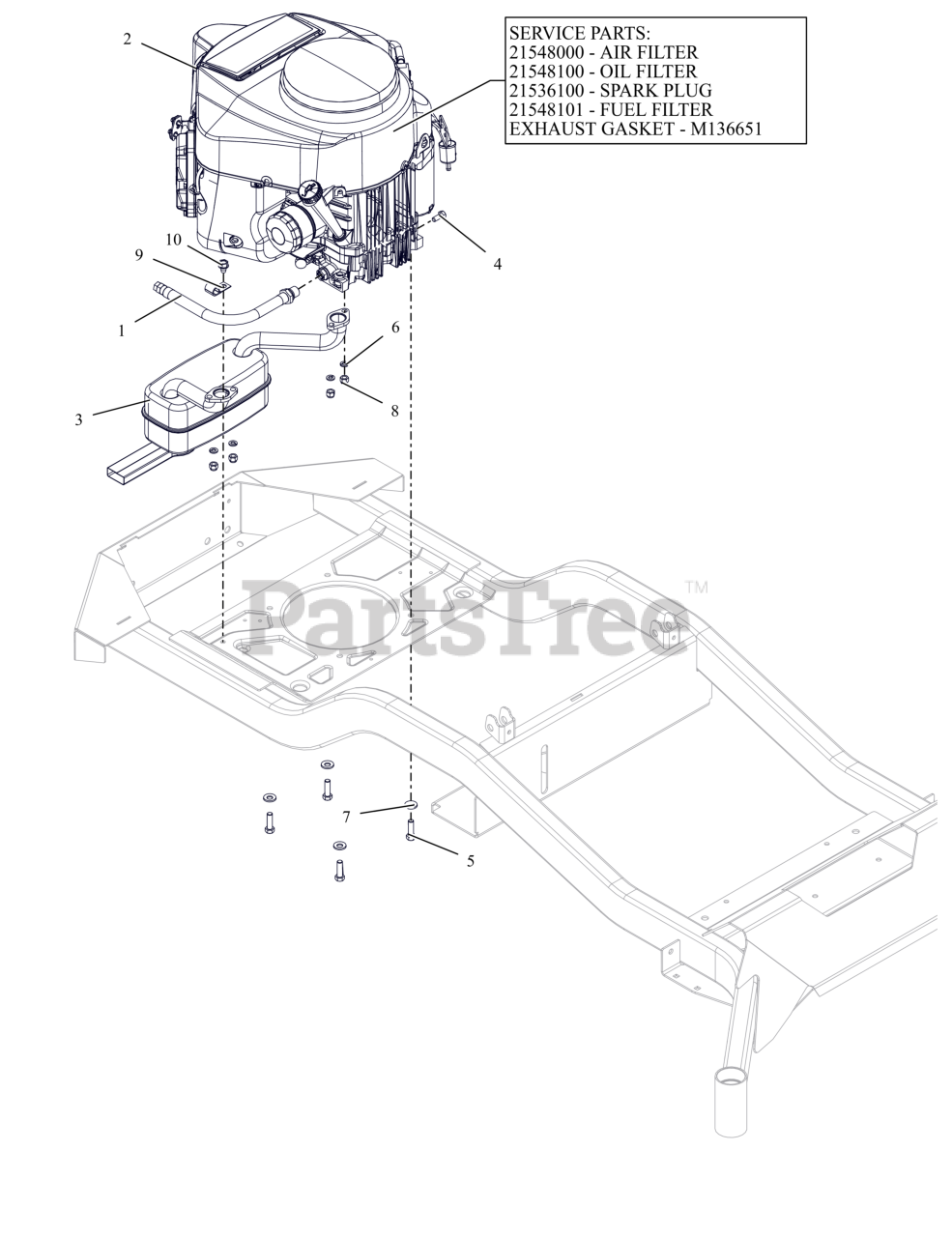

Engine - Kawasaki FR730 Parts Diagram

  • Title

1

Ariens 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

1

Ariens 21548000

AIR FILTER, KAWASAKI FR

Note: Service Part Component

$17.99

$

In Stock, Qty 20+

0

1

Ariens 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Service Part Component

$18.99

$

In Stock, Qty 20+

0

1

Ariens 21536100

PLUG, SPARK

Note: Service Part Component

$3.49

$

In Stock, only 2 left!

0

1

Ariens 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Service Part Component

$

$

Not available

1

Ariens M136651

GASKET, MUFFLER #
(Superseded to 00191627)

Note: Service Part Component

$7.99

$

In Stock, only 2 left!

0

2

Ariens 08200718

ENGINE, KAWASAKI FR730 24HP

$

$

Not available

3

Ariens 04754300

MUFFLER, KAWASAKI

$96.99

$

In Stock, only 1 left!

0

4

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

5

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

6

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

8

Ariens 06500817

NUT, LK-CTR-JAM M8-1.25 GR8.8 ZC120

$1.49

$

Usually ships in 4-12 days

0

9

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
