991163 - Ariens Apex 60" Zero-Turn Mower, 24hp Kawasaki FR (SN: 040000 - 049999) Anti-Scalp Wheels and Baffles- 60" Parts Diagram

Apex 60" Zero-Turn Mower, 24hp Kawasaki FR

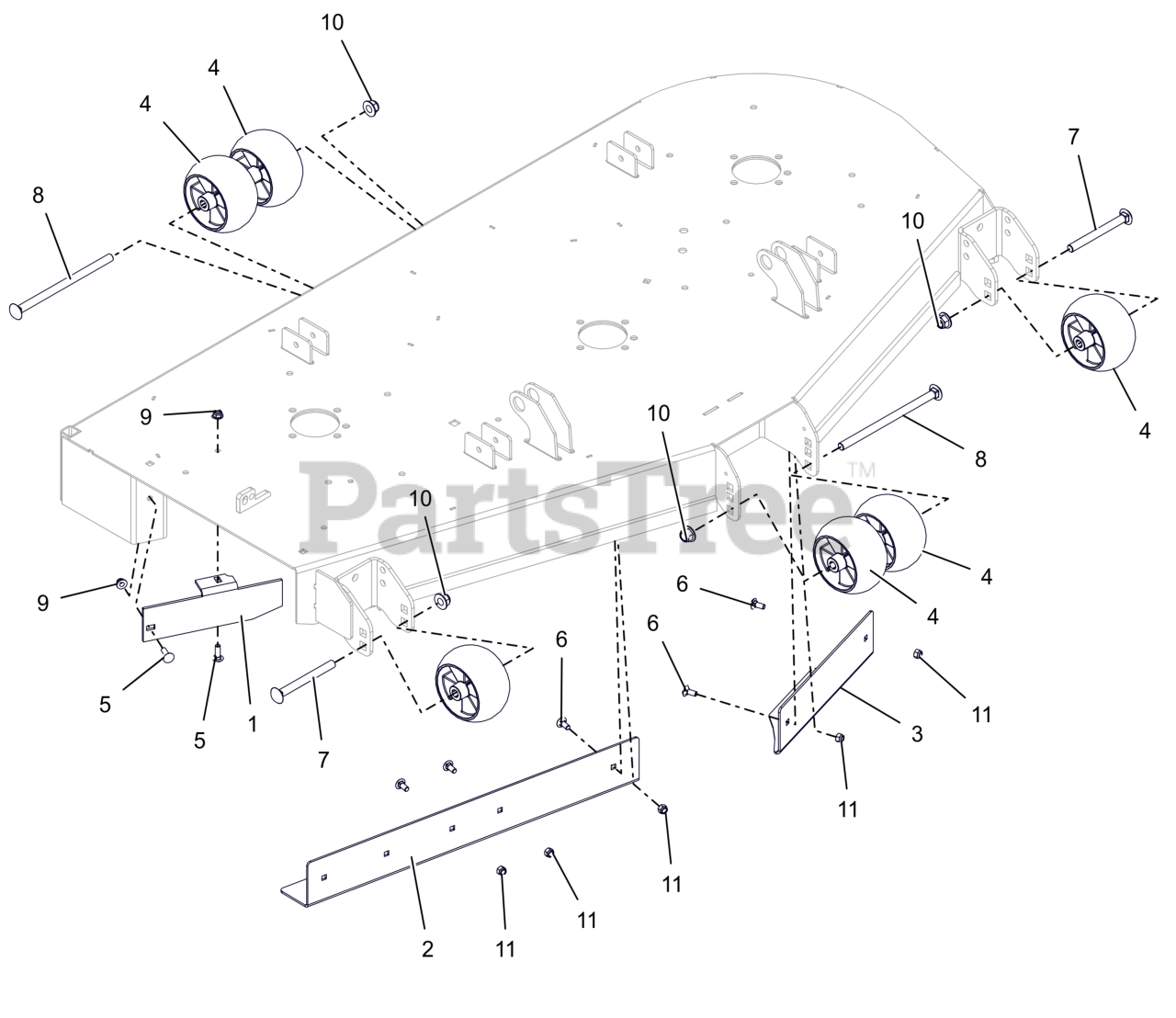

Anti-Scalp Wheels and Baffles- 60" Parts Diagram

  • Title
1

Ariens 00374159

BAFFLE, 60" DISCHARGE

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 05251959

BAFFLE, 60" RH VACUUM (ORANGE)

$45.99

$

In Stock, only 1 left!

0

3

Ariens 05252059

BAFFLE, 60" LH VACUUM (ORANGE)

$28.99

$

Usually ships in 4-12 days

0

4

Ariens 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$11.99

$

In Stock, Qty 20+

0

5

Ariens 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06200318

BLT, RHSN .50-13X5.00 G5 ZCC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 06200436

BTL,RHSN .500-13 X 8.5S G5 ZCC
(Superseded to 06200506)

$6.99

$

Usually ships in 4-12 days

0

9

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500820

NUT,NYL .31-18 G5 ZCC

$0.99

$

In Stock, Qty 20+

0
