991162 (ZT HD 48) - Gravely 48" Zero-Turn Mower, 23hp Kawasaki FR (SN: 015000 - 024999) Engine - Kawasaki FR691 Parts Diagram

48" Zero-Turn Mower, 23hp Kawasaki FR

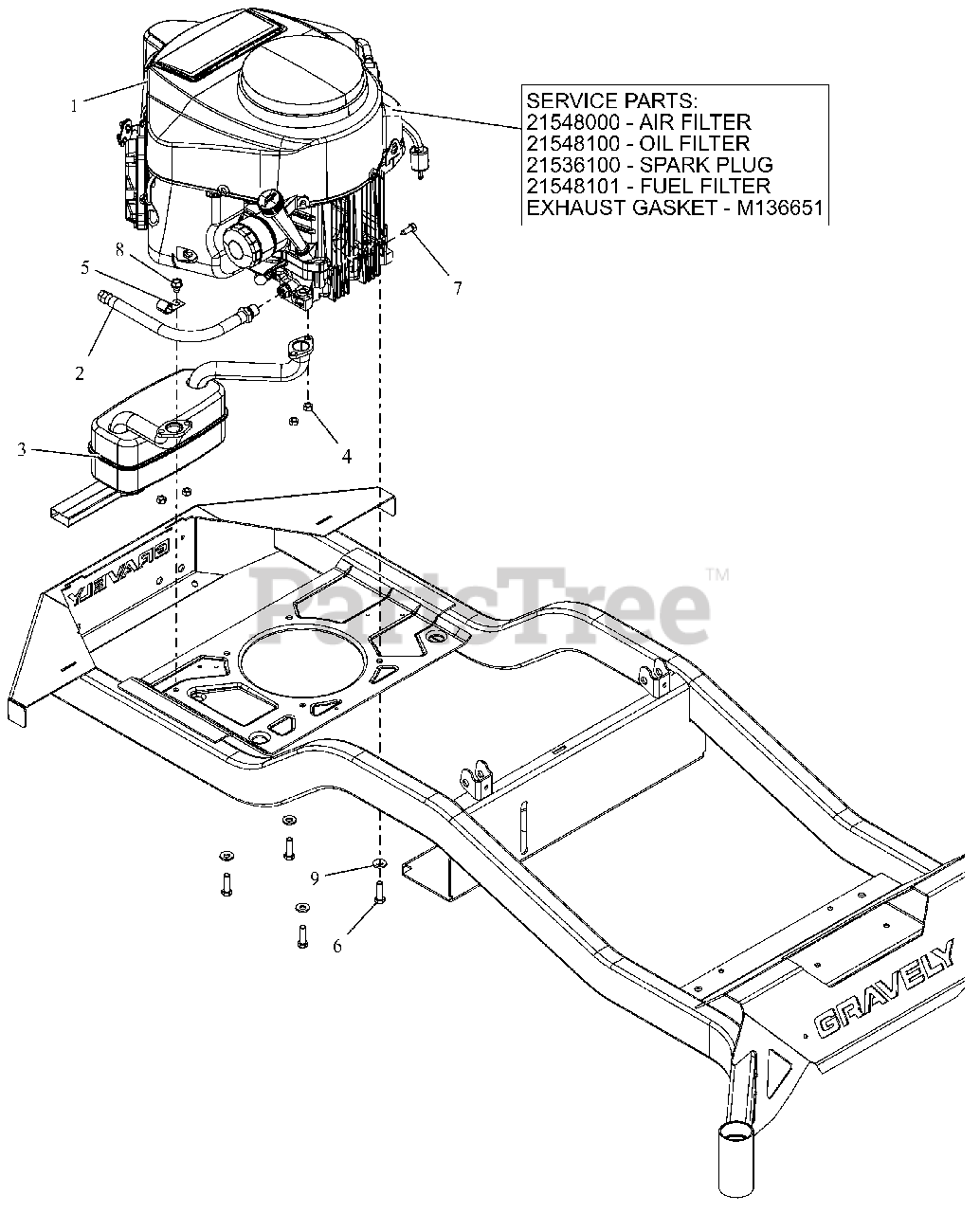

Engine - Kawasaki FR691 Parts Diagram

  • Title

1

Gravely 08200717

ENGINE, KAWASAKI FR691 23HP

$

$

Not available

1

Gravely 21548000

AIR FILTER, KAWASAKI FR

Note: SERVICE PART

$17.99

$

In Stock, Qty 20+

0

1

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21536100

PLUG, SPARK

Note: SERVICE PART

$3.49

$

In Stock, only 1 left!

0

1

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: SERVICE PART

$

$

Not available

1

Gravely M136651

GASKET, MUFFLER #
(Superseded to 00191627)

Note: SERVICE PART

$7.99

$

In Stock, only 2 left!

0

2

Gravely 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

3

Gravely 04754300

MUFFLER, KAWASAKI

$96.99

$

In Stock, only 1 left!

0

4

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

5

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

7

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

8

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0
