991162 (ZT HD 48) - Gravely 48" Zero-Turn Mower, 23hp Kawasaki FR (SN: 015000 - 024999) Deck, Belts, Blades And Spindles - 48" Parts Diagram

48" Zero-Turn Mower, 23hp Kawasaki FR

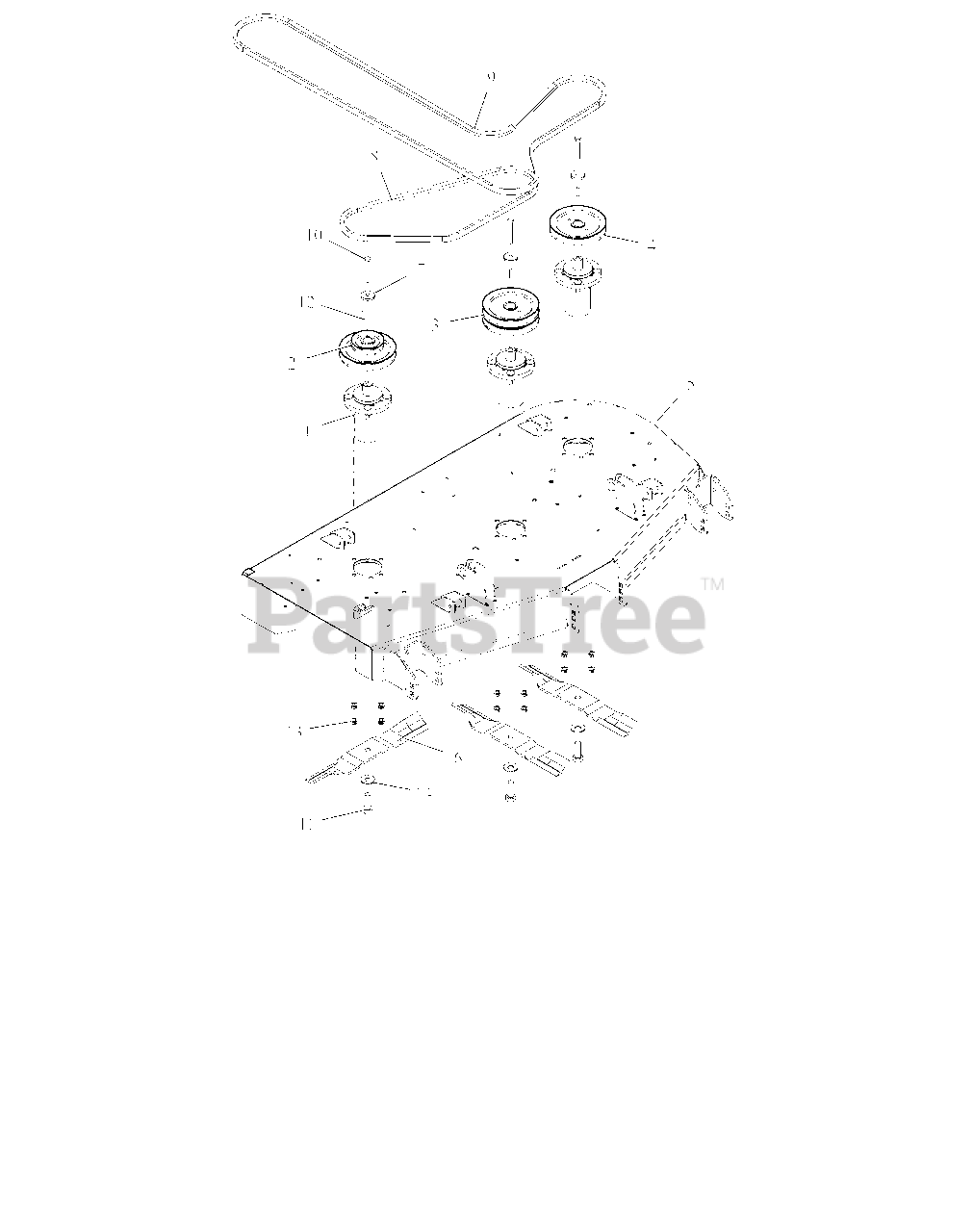

Deck, Belts, Blades And Spindles - 48" Parts Diagram

  • Title

1

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

2

Gravely 07332267

PULLEY, DOUBLE-1"IDX3.50"&6.0

$79.99

$

In Stock, only 1 left!

0

3

Gravely 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

$77.99

$

In Stock, Qty 16

0

4

Gravely 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

$82.99

$

In Stock, only 1 left!

0

5

Gravely 59107900

KIT,DECK-48" W/DECALS-GRAVELY

$

$

Not available

6

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

7

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

8

Gravely 07200805

V-BELT, B-COGGED

$42.99

$

In Stock, Qty 15

0

9

Gravely 07200815

V-BELT, HB SECTION

$108.99

$

In Stock, only 2 left!

0

10

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

13

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0
