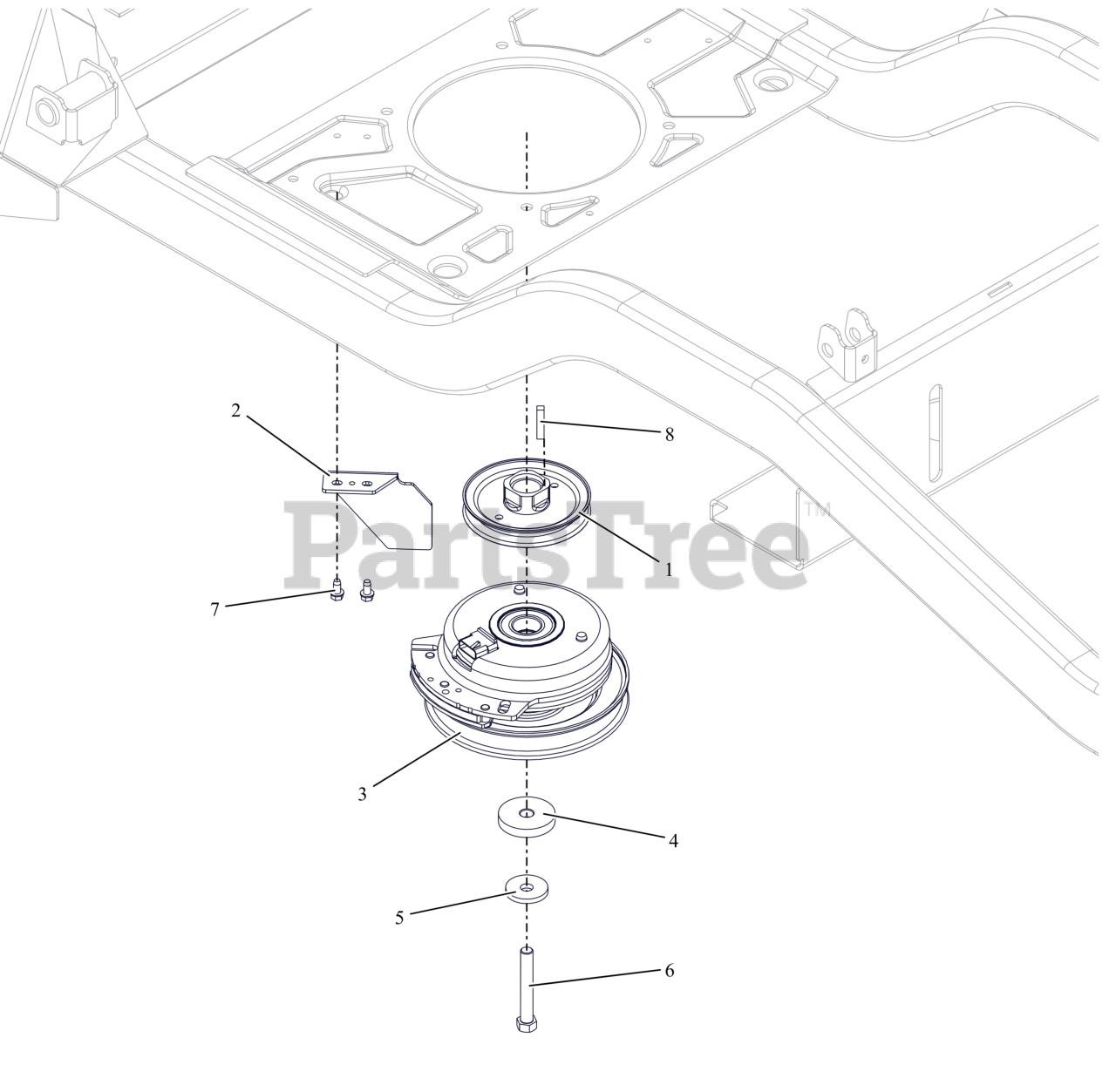

991161 - Ariens Apex 48" Zero-Turn Mower, 23hp Kohler (SN: 095000 & Above) Clutch - Apex Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kohler

Clutch - Apex Parts Diagram

  • Title
1

Ariens 07346400

PULLEY, 4.50 OD X 1.003 ENGINE

$43.99

$

Usually ships in 4-12 days

0

2

Ariens 09449951

BRKT, CLUTCH
(Superseded to 09656751)

$

$

Not available

3

Ariens 09444200

CLUTCH, WARNER 1.00 HD,PTZ

$245.99

$

Usually ships in 4-12 days

0

4

Ariens 05501240

SPACER, .474/.459X2.00X.350

$14.99

$

In Stock, only 1 left!

0

5

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

6

Ariens 05901819

BLT, HEX .44-20X3.00 G8 ZCC NT

$5.99

$

In Stock, only 1 left!

0

7

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0
