991161 - Ariens Apex 48" Zero-Turn Mower, 23hp Kohler (SN: 060000 - 094999) Seat - Apex Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kohler

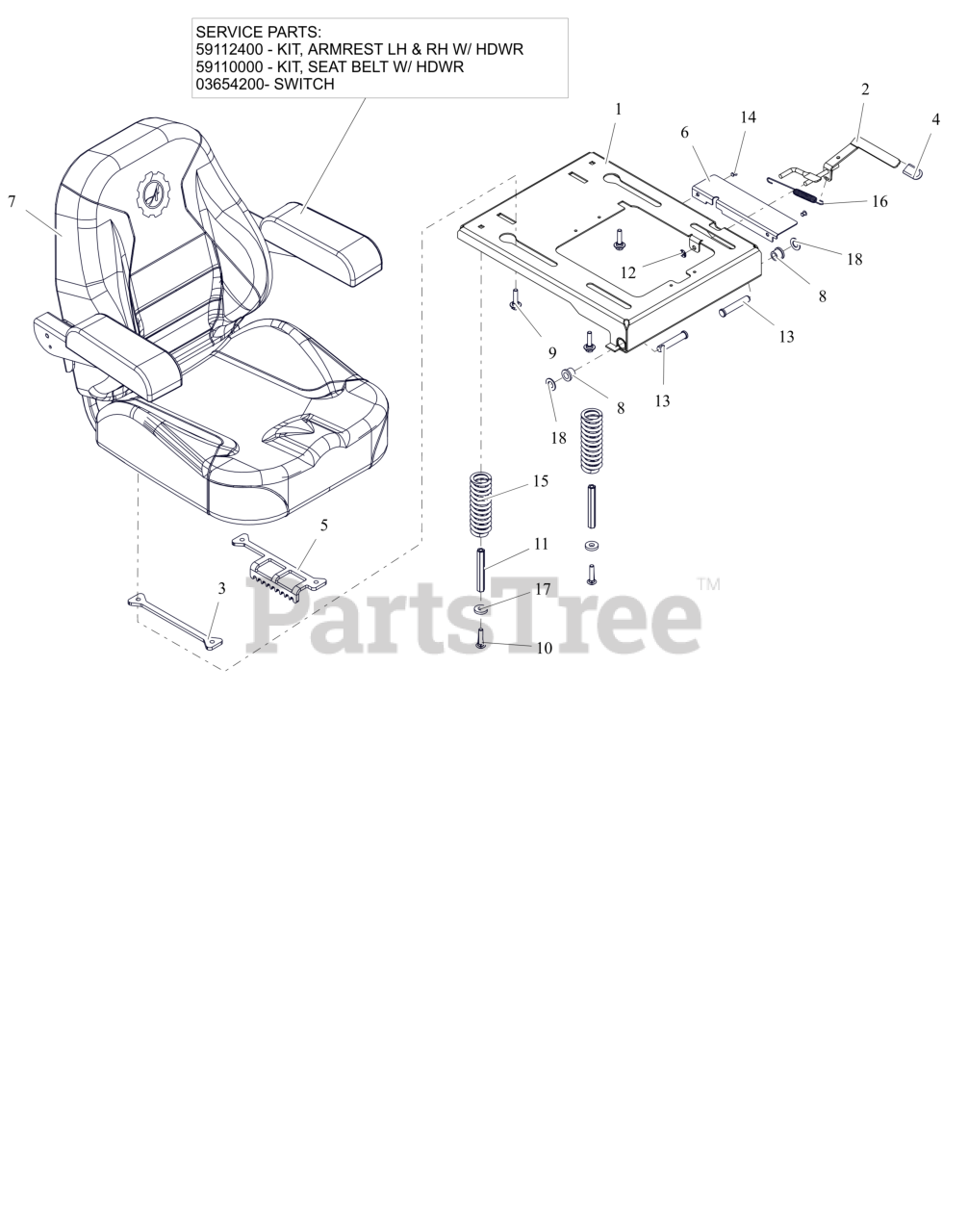

Seat - Apex Parts Diagram

  • Title

1

Ariens 04995659

WLDMT, SEAT PLATE HD

$102.99

$

Usually ships in 4-12 days

0

2

Ariens 05015251

WLDMT, SEAT SLIDE LEVER

$

$

Not available

3

Ariens 09363451

PLATE, ADJ SEAT SLIDE (BLACK)

$

$

Not available

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

5

Ariens 09363551

PLATE, SEAT ADJ (BLACK)

$

$

Not available

6

Ariens 05108459

GUARD, SEAT PLATE

$

$

Not available

7

Ariens 05124700

SEAT, APEX

$555.99

$

Usually ships in 4-12 days

0

7

Ariens 59112400

KIT-LH & RH ARM REST-05124700

Note: Component Service Part

$232.99

$

In Stock, only 1 left!

0

7

Ariens 59110000

KIT-SEAT BELT REPLACE-05007300

Note: Optional Component Service Part

$140.99

$

Usually ships in 4-12 days

0

7

Ariens 03654200

SWITCH- SEAT

Note: Component Service Part

$

$

Not available

8

Ariens 05500901

BSHG, FLG .516X.750X.625X.937

$5.99

$

In Stock, only 2 left!

0

9

Ariens 07001929

BOLT SHLDR .31-18 X .175

$2.49

$

In Stock, only 3 left!

0

10

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

11

Ariens 06500828

NUT, COUPLING 5/16X18 X 3.75

$12.99

$

In Stock, only 2 left!

0

12

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06800202

PIN-CLIC .50X2.70X2.31 -ZCC

$7.99

$

Usually ships in 4-12 days

0

14

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available

15

Ariens 08300704

SPRING, COMPRESSION SEAT 224LB

$

$

Not available

16

Ariens 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 20+

0

17

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

18

Ariens 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 20+

0
