991161 - Ariens Apex 48" Zero-Turn Mower, 23hp Kohler (SN: 060000 - 094999) Engine - Kohler LT730 Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kohler

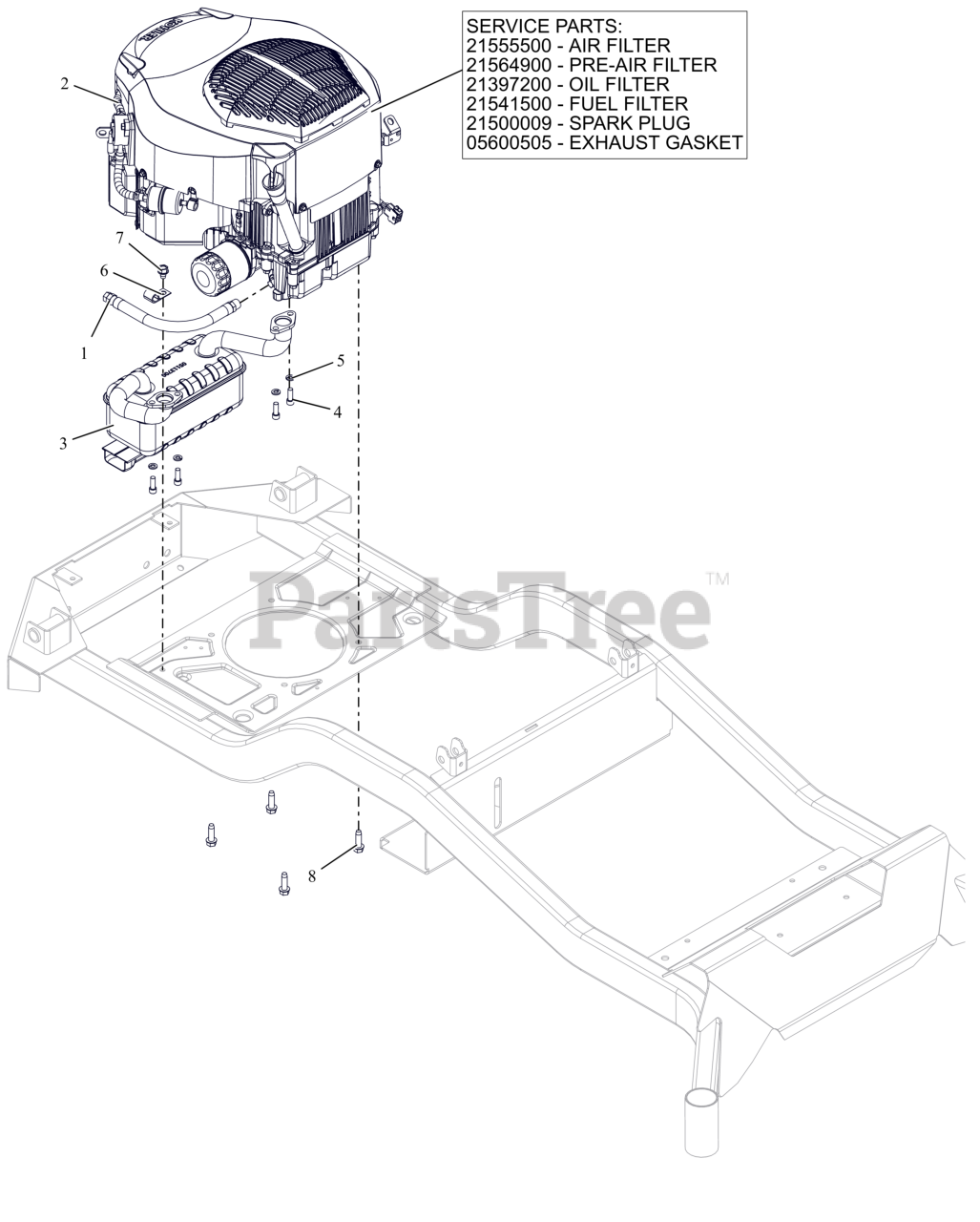

Engine - Kohler LT730 Parts Diagram

  • Title

1

Ariens 07001829

Hose, Oil Drain

$18.99

$

Usually ships in 4-12 days

0

2

Ariens 08201307

ENGINE, KOHLER - KT730

$

$

Currently unavailable

2

Ariens 21555500

AIR CLEANER, KOHLER

Note: Component Service Part

$29.99

$

In Stock, only 1 left!

0

2

Ariens 21564900

PRE-CLEANER, KOHLER

Note: Component Service Part

$11.99

$

Usually ships in 4-12 days

0

2

Ariens 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: Component Service Part

$18.99

$

In Stock, only 4 left!

0

2

Ariens 21541500

FILTER, FUEL

Note: Component Service Part

$8.99

$

In Stock, Qty 20+

0

2

Ariens 21500009

PLUG, SPARK KOHLER

Note: Component Service Part

$10.99

$

Usually ships in 4-12 days

0

2

Ariens 05600505

GASKET, MUFFLER COURAGE TWIN

Note: Component Service Part

$9.99

$

Usually ships in 4-12 days

0

3

Ariens 05113700

MUFFLER, KOHLER

$82.99

$

In Stock, only 1 left!

0

4

Ariens 05901839

SCR-CAP .31-18X.88 S/HD G8 ZCC

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 3 left!

0
