991161 - Ariens Apex 48" Zero-Turn Mower, 23hp Kohler (SN: 050000 - 059999) Belt Guards - 48" Parts Diagram

Apex 48" Zero-Turn Mower, 23hp Kohler

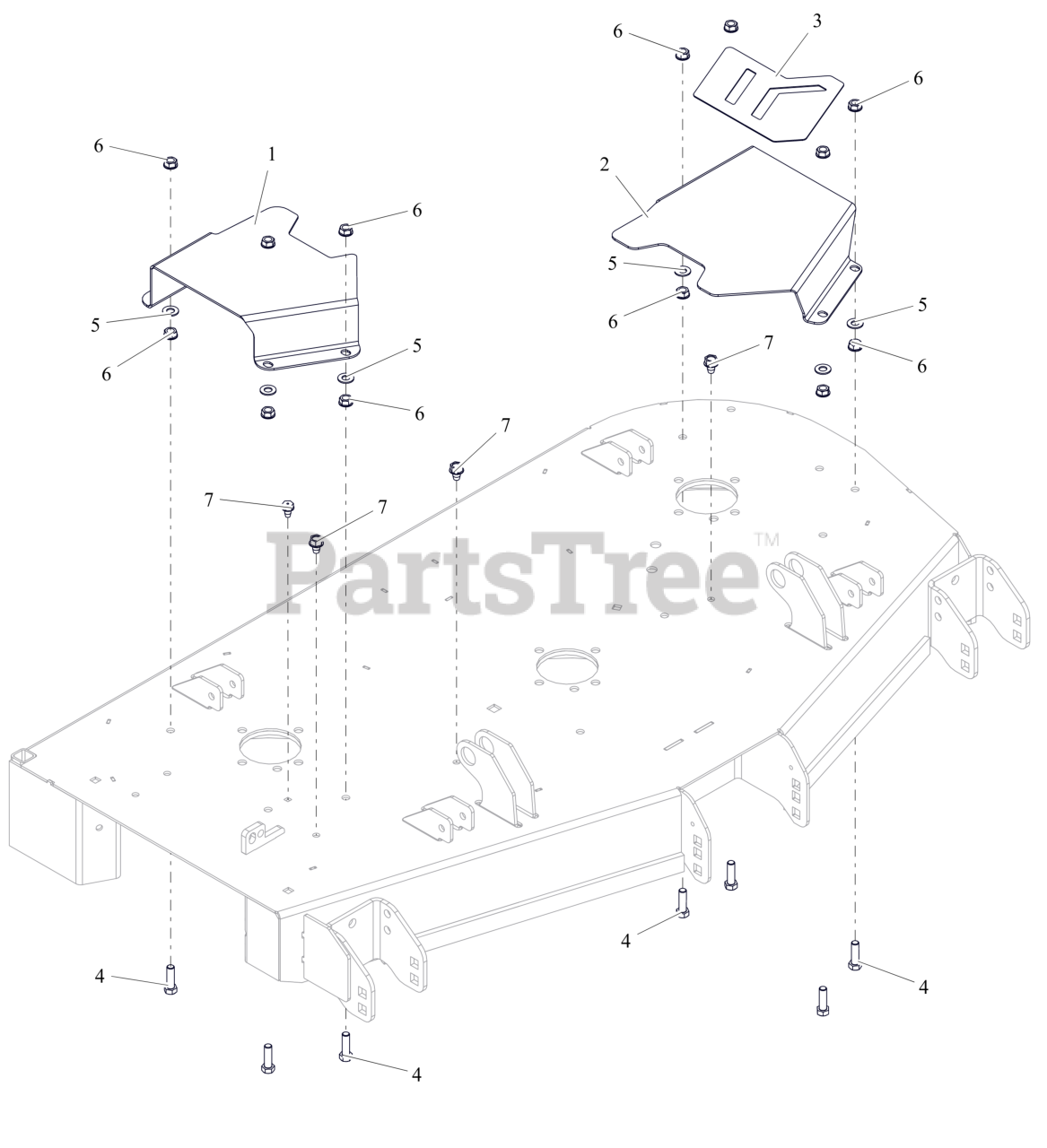

Belt Guards - 48" Parts Diagram

  • Title
1

Ariens 05075959

COVER, BELT 48" RIGHT

$

$

Not available

2

Ariens 05076059

COVER, BELT 48" LEFT

$59.99

$

Usually ships in 4-12 days

0

3

Ariens 05160000

GRIP TAPE 48 BELT COVER

$10.99

$

Usually ships in 4-12 days

0

4

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 0740012

SCR-TAP .

$

$

Currently unavailable
