991160 (ZT HD 44) - Gravely 44" Zero-Turn Mower, Kawasaki FR (SN: 000944 - 014999) Parking Brake Parts Diagram

44" Zero-Turn Mower, Kawasaki FR

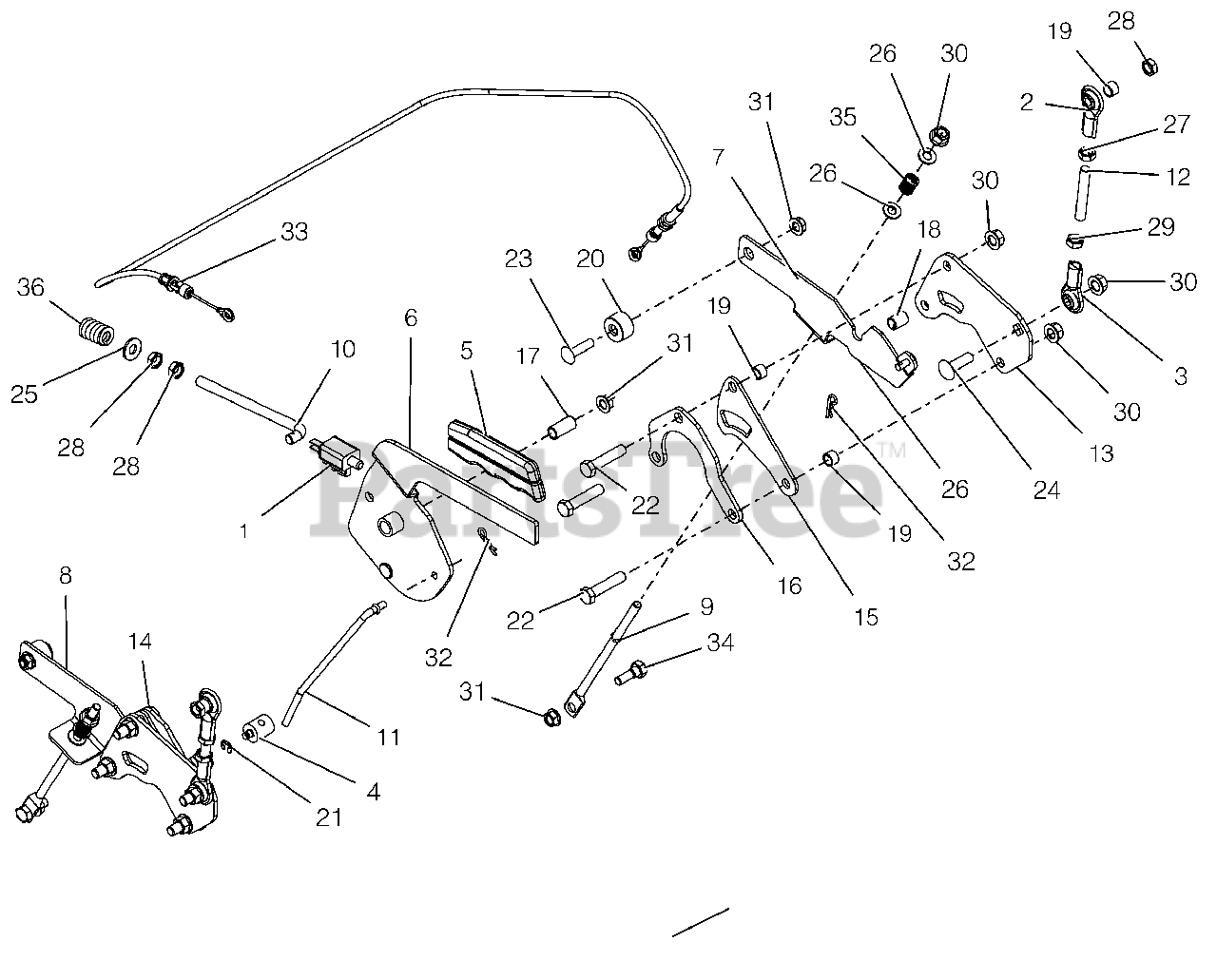

Parking Brake Parts Diagram

  • Title

1

Gravely 03252300

SWITCH, SINGLE POLE N.O.

$13.99

$

In Stock, only 1 left!

0

2

Gravely 03563100

ROD END, .38 RH

$15.99

$

In Stock, only 2 left!

0

3

Gravely 03668700

END, ROD-.38 LH

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 03764800

TRUNION, 1/4-20

$13.99

$

In Stock, Qty 20+

0

5

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 04998551

LEVER, PARKING BRAKE

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 04998600

ARM, BRAKE - LH (W/PIN)

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 04998700

ARM, BRAKE-RH

$30.99

$

In Stock, only 1 left!

0

9

Gravely 04999000

ROD, LINK - TRANSMISSION BRAKE

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 04999100

ROD, OVER CENTER

$10.99

$

In Stock, only 4 left!

0

11

Gravely 05000600

ROD, BRAKE LINK

$12.99

$

In Stock, Qty 20+

0

12

Gravely 05001000

ROD, STEERING LINK

$8.49

$

Usually ships in 4-12 days

0

13

Gravely 05019951

BRKT, TRANSAXLE STEERING

$25.99

$

Usually ships in 4-12 days

0

14

Gravely 05067700

BRKT, SPACER

$12.99

$

Usually ships in 4-12 days

0

15

Gravely 05067751

BRKT-SPACER

$

$

Not available

16

Gravely 05104951

PLATE, REAR REINFORCING

$

$

Not available

17

Gravely 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

18

Gravely 05501226

SPCR, SLV .385X.500X.652

$3.49

$

In Stock, only 2 left!

0

19

Gravely 05501235

SPCR, SLV .385X.500X.350

$1.49

$

In Stock, Qty 11

0

20

Gravely 05501315

SPCR, FLANGE

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 05700125

RG-RTNG-EXT .250X.025

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06200008

BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

24

Gravely 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

28

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06537400

NUT-JAM .375-24 LH YWZC
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06900640

CABLE, BRAKE
(Superseded to 06900706)

$26.99

$

In Stock, Qty 20+

0

34

Gravely 07001734

BOLT,SHLDR .38X.25 -.31-18X.75

$

$

Not available

35

Gravely 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 6

0

36

Gravely 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 17

0
