991159 - Ariens Apex 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 060000 - 094999) Frame - 48" And 52" Parts Diagram

Apex 52" Zero-Turn Mower, 23hp Kawasaki FR

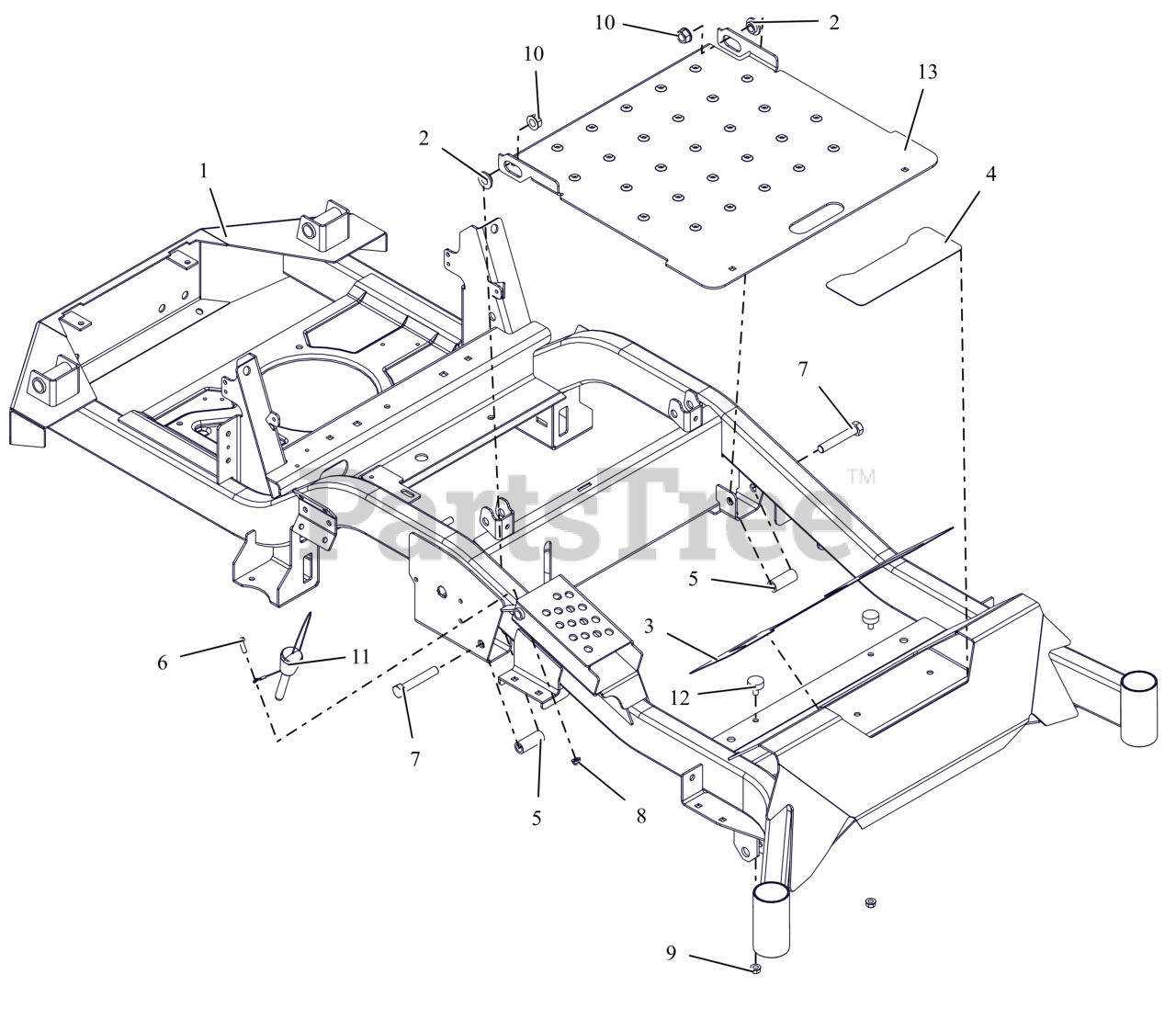

Frame - 48" And 52" Parts Diagram

  • Title

1

Ariens 59117700

WLDMT, MAIN FRAME -APEX 44-52 (ORANGE)

$969.99

$

Usually ships in 4-12 days

0

2

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.49

$

In Stock, Qty 20+

0

3

Ariens 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

4

Ariens 05109100

GRIP, STEP

$

$

Not available

5

Ariens 05501319

SPACER, .515X.75X1.83

$4.99

$

Usually ships in 4-12 days

0

6

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

8

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

9

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06800203

PIN, MAGNETIC .50X2.50
(Superseded to 06800218)

$22.99

$

Usually ships in 4-12 days

0

12

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

13

Ariens 59113600

PANEL, ACCESS

$135.99

$

Usually ships in 4-12 days

0
