991158 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX (SN: 060000 - 094999) Transaxle Drive Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX

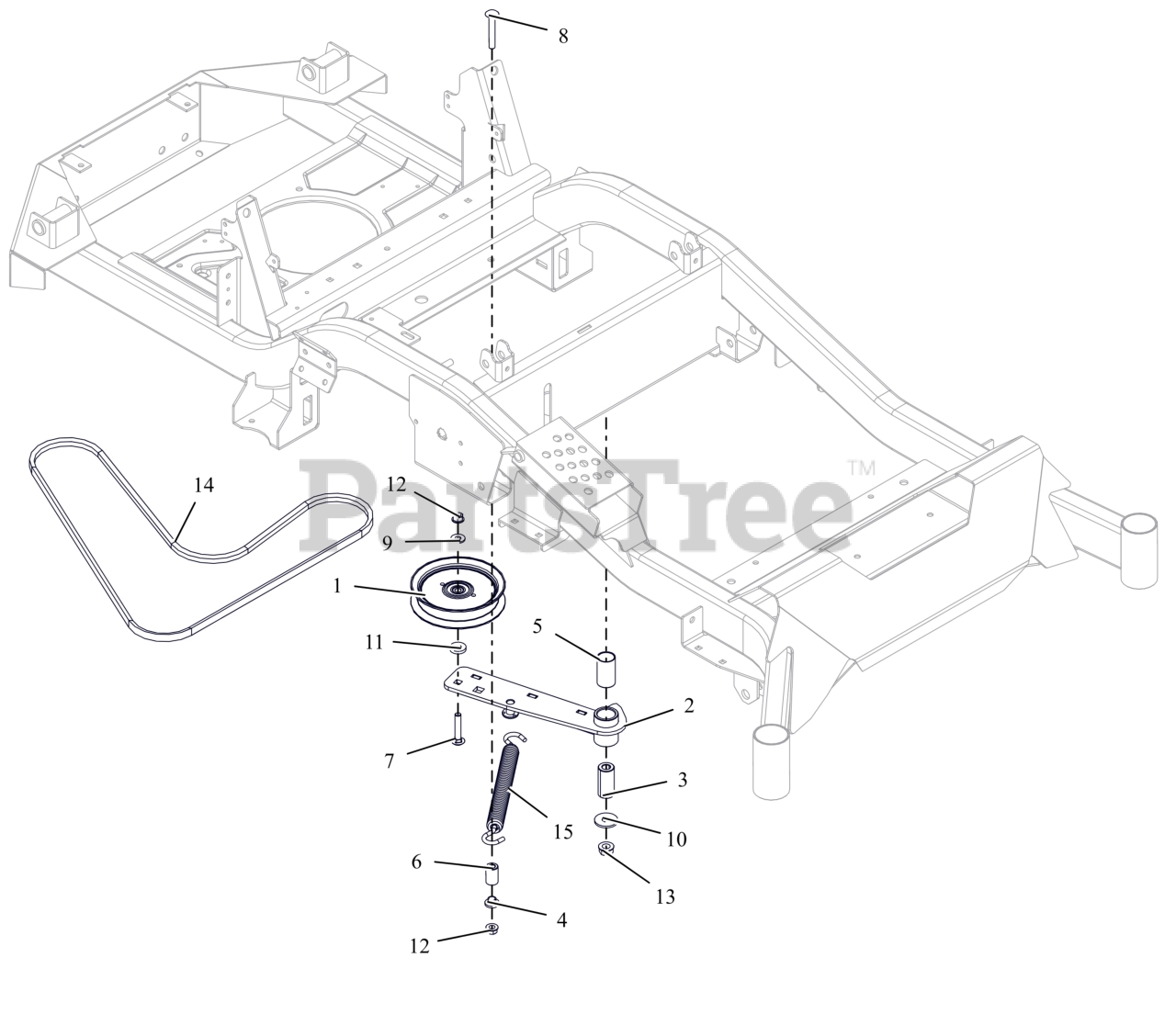

Transaxle Drive Parts Diagram

  • Title

1

Ariens 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$40.99

$

In Stock, Qty 16

0

2

Ariens 59116700

WLDMT, HYDRO DRIVE IDLER ARM (BLACK)

$68.99

$

In Stock, only 1 left!

0

3

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

4

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

5

Ariens 05501234

BSHG, 1.00X1.125X1.937

$10.99

$

In Stock, Qty 20+

0

6

Ariens 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

In Stock, Qty 19

0

7

Ariens 06200314

BLT, RHSN .38-16X2.00 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

8

Ariens 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

9

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06401022

WSHR-FL-STL.511X1.44X.125ZC120

$2.99

$

In Stock, Qty 20+

0

11

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07225600

V-BELT, 4L-WRAPPED

$48.99

$

In Stock, Qty 20+

0

15

Ariens 08300711

SPRING, EXTENSION

$37.99

$

In Stock, only 1 left!

0
