991158 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX (SN: 060000 - 094999) ROPS Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX

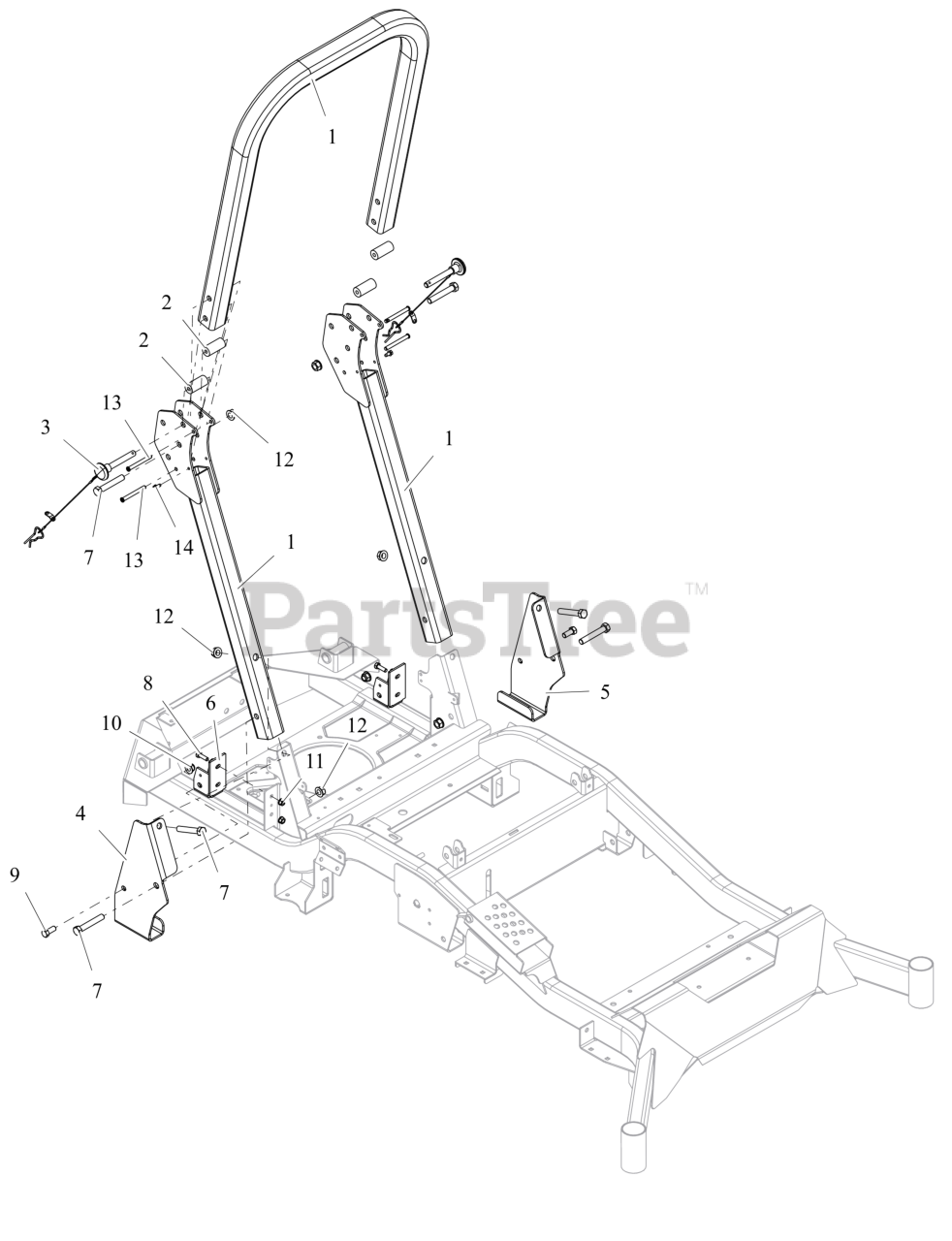

ROPS Parts Diagram

  • Title

1

Ariens 59113900

ROPS, REPLACEMENT
(Superseded to 59114400)

$678.99

$

Usually ships in 4-12 days

0

2

Ariens 04884200

BUMPER, ROPS ANTI-VIBRATION

$

$

Not available

3

Ariens 04898200

PIN, ROPS W/LANYARD

$19.99

$

Usually ships in 4-12 days

0

4

Ariens 05116451

BRKT, ROPS SUPPORT - RH

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 05116551

BRKT, ROPS SUPPORT -LH

$38.99

$

Usually ships in 4-12 days

0

6

Ariens 05248051

BRKT, ROPS SUPPORT (BLACK)

$

$

Not available

7

Ariens 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

8

Ariens 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.49

$

In Stock, Qty 6

0

9

Ariens 05901913

BLT, HEX .44-14X1.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

10

Ariens 06500811

NUT, LK-NYL-FLG .44-14 GR5 ZC120

$5.99

$

In Stock, only 1 left!

0

11

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07001826

PIN, SLIC .312 X 2.57

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
