991158 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX (SN: 060000 - 094999) Control Panel Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX

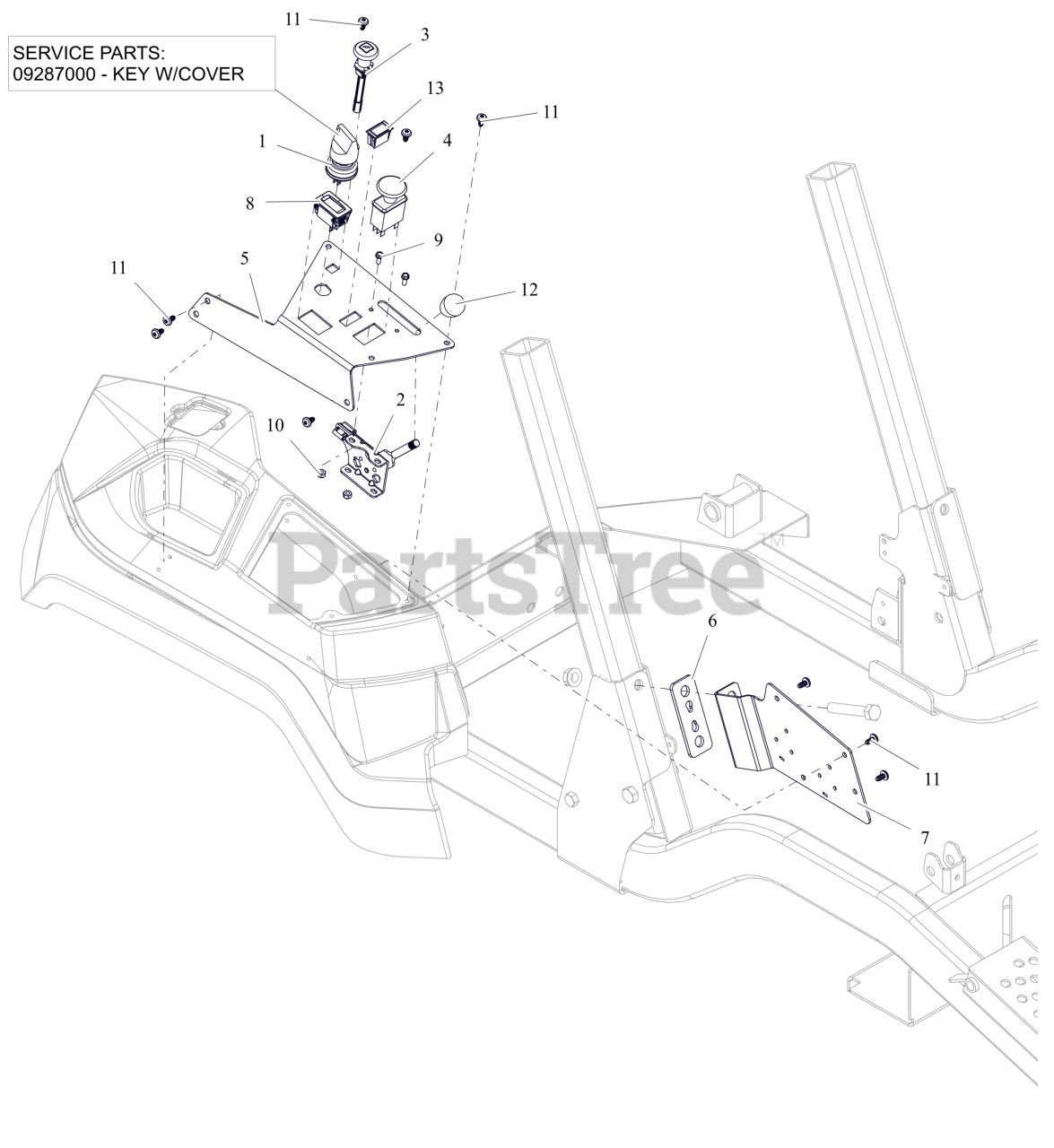

Control Panel Parts Diagram

  • Title

1

Ariens 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

2

Ariens 06900619

CABLE, PRO THROTTLE CONTROL

$42.99

$

In Stock, only 1 left!

0

3

Ariens 06900621

CABLE - CHOKE, SNAP-IN

$28.99

$

In Stock, only 1 left!

0

4

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

5

Ariens 05108759

PLATE, APEX CONTROL PANEL

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 05117459

PLATE, CONTROL PANEL SPACER

$3.49

$

Usually ships in 4-12 days

0

7

Ariens 05126951

BRKT, FENDER/RELAY MOUNTING

$

$

Not available

8

Ariens 05254800

HOUR METER
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

9

Ariens 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.49

$

In Stock, only 3 left!

0

12

Ariens 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 8

0

13

Ariens 09003300

SWITCH,BLANK

$4.99

$

Usually ships in 4-12 days

0
