991158 - Ariens Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX (SN: 050000 - 059999) Seat Latch Parts Diagram

Zenith 60" Zero-Turn Mower, 23.5hp Kawasaki FX

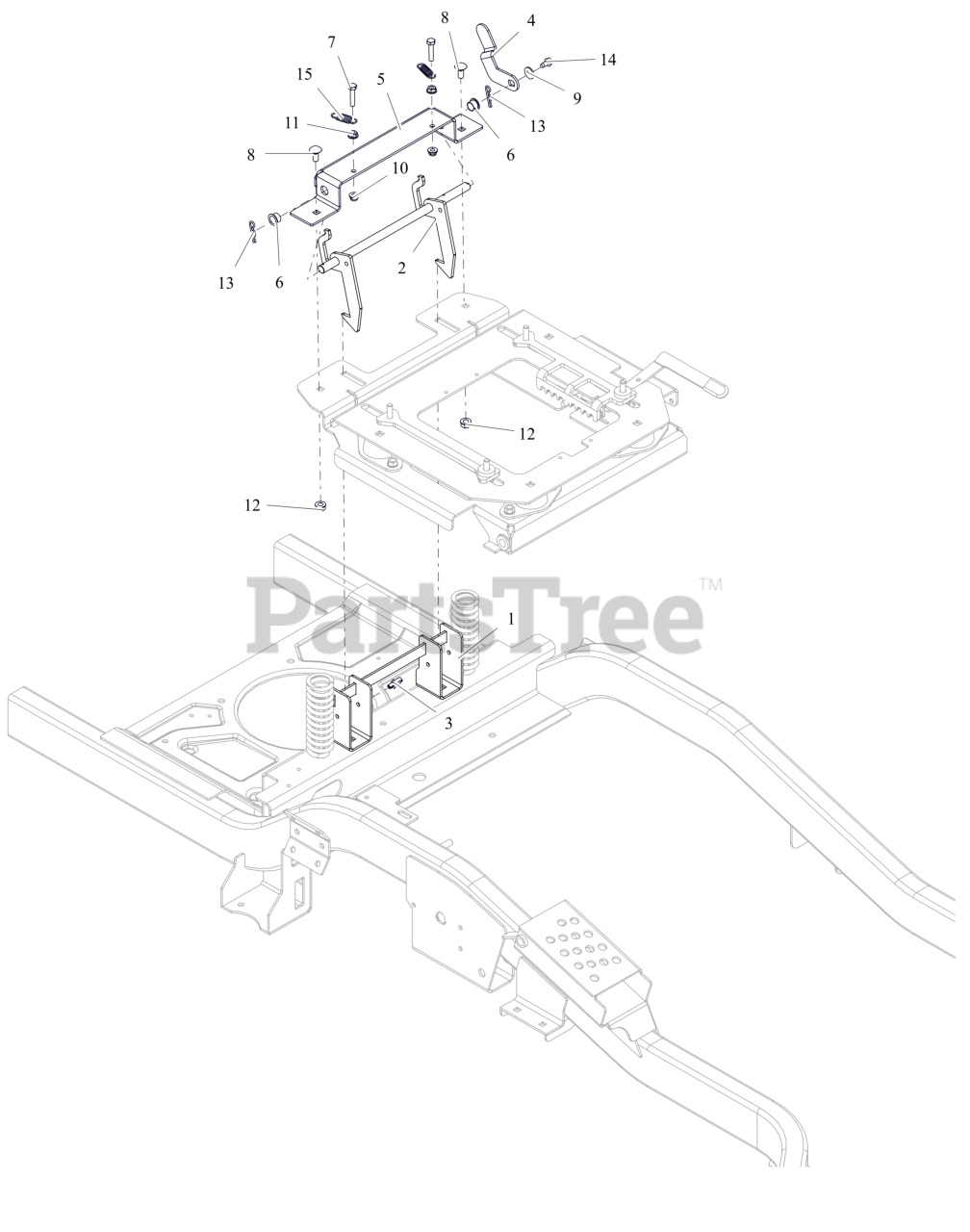

Seat Latch Parts Diagram

  • Title

1

Ariens 05118451

WLDMT, LATCH RECEIVER

$45.99

$

Usually ships in 4-12 days

0

2

Ariens 05118651

WLDMT, SEAT LATCH

$51.99

$

Usually ships in 4-12 days

0

3

Ariens 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

4

Ariens 05118751

LEVER, SEAT LATCH RELEASE

$

$

Not available

5

Ariens 05118851

BRKT, SEAT HOOK MTG.

$

$

Not available

6

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

7

Ariens 05901738

BLT, HEX .25-20X1.25 G5 ZCC

$1.99

$

In Stock, Qty 5

0

8

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

11

Ariens 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06700224

PIN, HAIR .08X.38X1.42 ZCC

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 8

0
