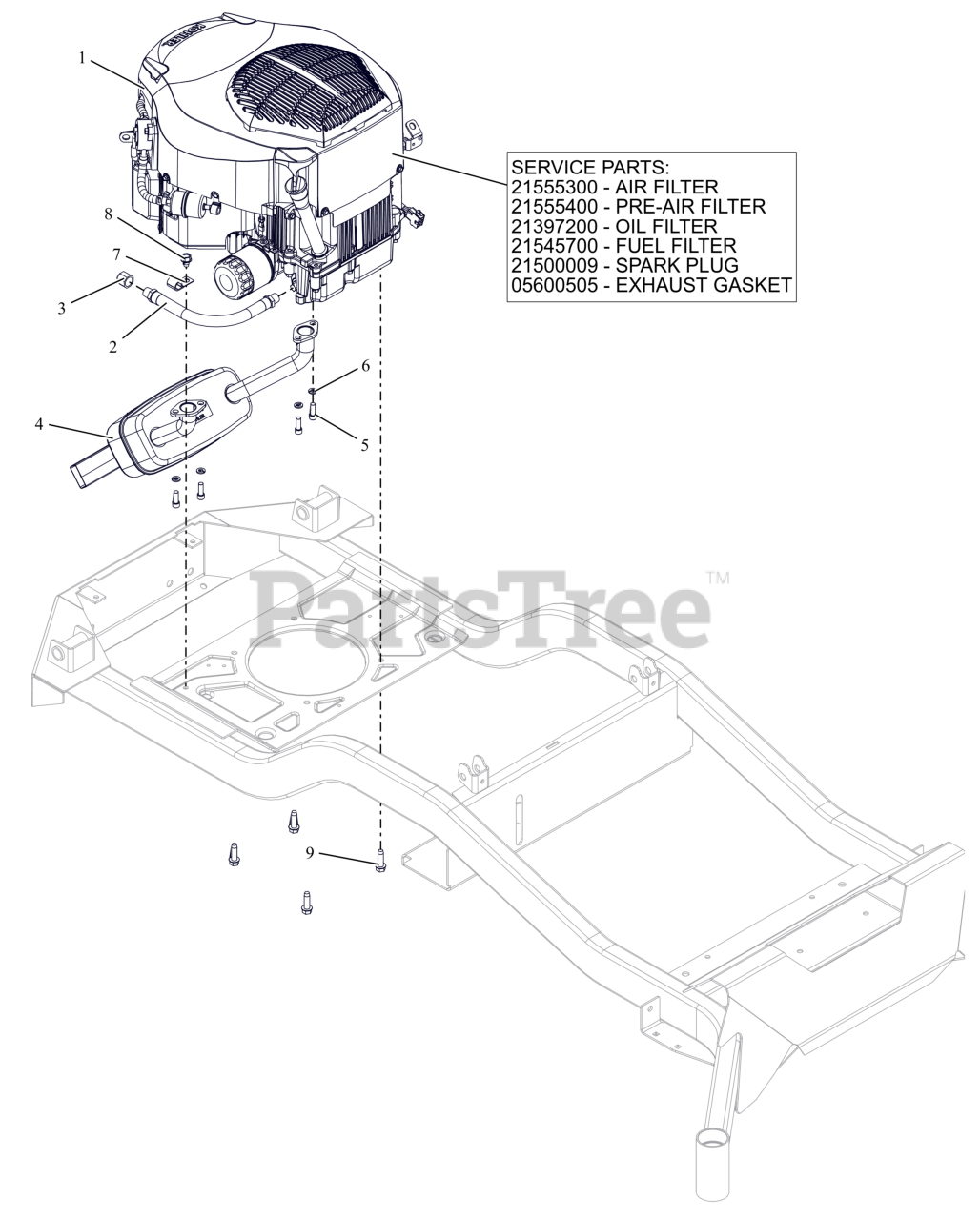

991157 - Ariens Apex 60" Zero-Turn Mower, Kohler (SN: 040000 & Above) Engine - Kohler KT740 Parts Diagram

Apex 60" Zero-Turn Mower, Kohler

Engine - Kohler KT740 Parts Diagram

  • Title

1

Ariens 08201308

ENGINE, KOHLER - KT740

$

$

Currently unavailable

1

Ariens 21555300

AIR FILTER, KOHLER

$26.99

$

In Stock, Qty 10

0

1

Ariens 21555400

PRE CLEANER, KOHLER

$6.99

$

In Stock, only 4 left!

0

1

Ariens 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

$18.99

$

In Stock, only 4 left!

0

1

Ariens 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

$12.99

$

In Stock, Qty 20+

0

1

Ariens 21500009

PLUG, SPARK KOHLER

$10.99

$

Usually ships in 4-12 days

0

1

Ariens 05600505

GASKET, MUFFLER COURAGE TWIN

$9.99

$

Usually ships in 4-12 days

0

2

Ariens 03873100

HOSE,HYD .38-11-0K M6NO-M6N0
(Superseded to 07001829)

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

4

Ariens 04825200

MUFFLER, KOHLER

$110.99

$

In Stock, only 1 left!

0

5

Ariens 05901839

SCR-CAP .31-18X.88 S/HD G8 ZCC

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 3 left!

0
