991157 - Ariens Apex 60" Zero-Turn Mower, Kohler (SN: 000303 - 014999) Deck Lift - RH Parts Diagram

Apex 60" Zero-Turn Mower, Kohler

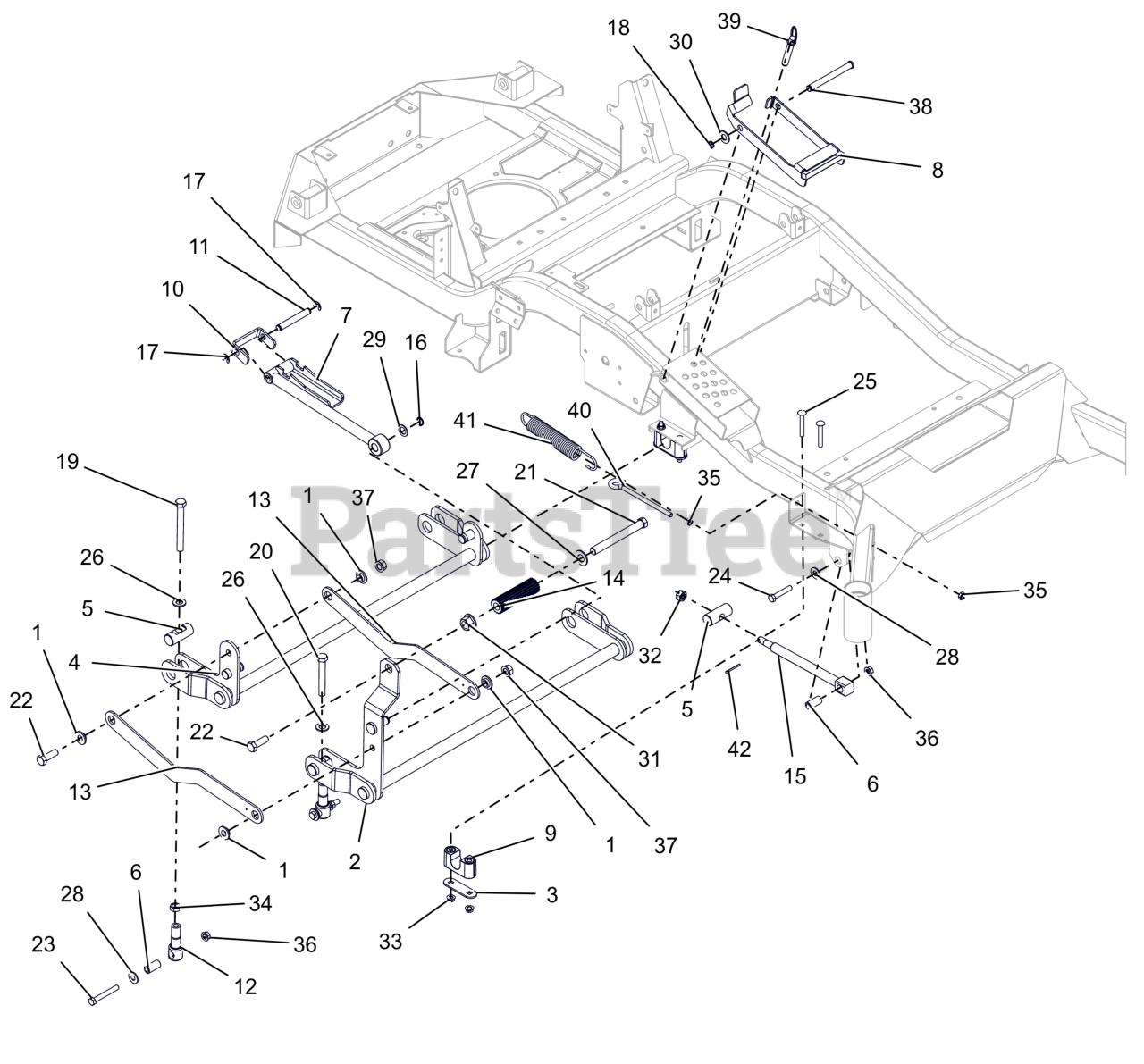

Deck Lift - RH Parts Diagram

  • Title

1

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.49

$

In Stock, Qty 20+

0

2

Ariens 05019659

WLDMT, FRONT DECK LIFT PIVOT

$140.99

$

Usually ships in 4-12 days

0

3

Ariens 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

4

Ariens 05019759

WLDMT, REAR DECK LIFT PIVOT

$115.99

$

Usually ships in 4-12 days

0

5

Ariens 04877700

PIN, DECK LIFT
(Superseded to 05149500)

$15.99

$

In Stock, Qty 20+

0

6

Ariens 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

7

Ariens 05022059

WLDMT, HOC ARM
(Superseded to 05186359)

$85.99

$

Usually ships in 4-12 days

0

8

Ariens 05025259

BRKT, HOC TRANSFER LOCK

$36.99

$

Usually ships in 4-12 days

0

9

Ariens 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 2 left!

0

10

Ariens 05077551

BRKT, HOC LINE

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 05077700

ROD, HOC PIVOT
(Superseded to 05800210)

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 11

0

13

Ariens 05083959

LINK, DECK LIFT

$11.99

$

Usually ships in 4-12 days

0

14

Ariens 05120951

ROD, FOOT PEDAL (BLACK)

$

$

Not available

15

Ariens 05126700

DRAG,LINK-HD

$18.99

$

In Stock, only 1 left!

0

16

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

19

Ariens 05900102

@BLT-HEX .5-13-4.5GR8 FULL THD
(Superseded to 05901736)

$9.49

$

In Stock, only 1 left!

0

20

Ariens 05901336

BLT-HEX .50-13X3.50 GR5 FTH

$

$

Not available

21

Ariens 05901730

BLT, HEX .62-11X5.50 G5 FBP

$6.99

$

Usually ships in 4-12 days

0

22

Ariens 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

23

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

25

Ariens 06200226

BLT-RDHDSQSHNK .31-18X2.25 YWZ
(Superseded to 06200311)

$3.99

$

In Stock, only 2 left!

0

26

Ariens 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06500835

NUT,FLG-TOP LK .625-11 FBP

$6.99

$

Usually ships in 4-12 days

0

32

Ariens 06505000

NUT-SL .50-13

$3.49

$

In Stock, Qty 20+

0

33

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06800132

PIN-CLEV .50X4.75X4.55
(Superseded to 06800201)

$7.99

$

In Stock, only 3 left!

0

39

Ariens 06800136

PIN, .50 X 2.20 USABLE LG BALL

$13.99

$

Usually ships in 4-12 days

0

40

Ariens 07001814

BOLT,.38-16 X 5.25-.62 DIA EYE

$13.99

$

Usually ships in 4-12 days

0

41

Ariens 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

42

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0
