991156 (ZT HD 60) - Gravely 60" Zero-Turn Mower, 26hp Kohler KT (SN: 035000 - 039999) Anti-Scalp Wheels And Baffles - 60" Parts Diagram

60" Zero-Turn Mower, 26hp Kohler KT

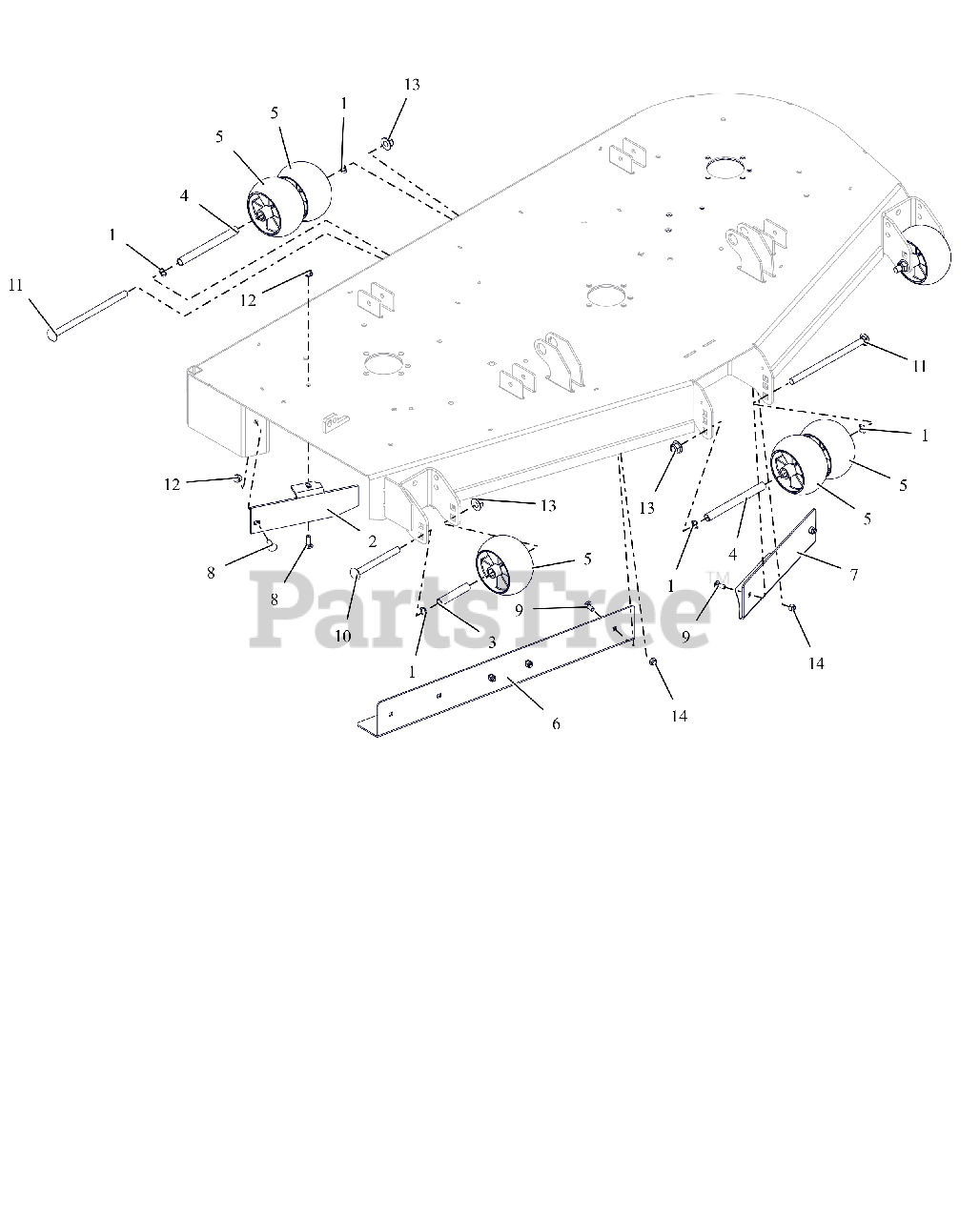

Anti-Scalp Wheels And Baffles - 60" Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

2

Gravely 00374153

60" DISCHARGE BAFFLE - RED

$28.99

$

In Stock, only 1 left!

0

3

Gravely 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

4

Gravely 00473800

SPACER, .510X.625X6.50

$21.99

$

In Stock, Qty 20+

0

5

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

6

Gravely 05251953

BAFFLE, 60" RH VACUUM (RED)

$60.99

$

Usually ships in 4-12 days

0

7

Gravely 05252053

BAFFLE, 60" LH VACUUM (RED)

$29.99

$

In Stock, only 1 left!

0

8

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06200318

BLT, RHSN .50-13X5.00 G5 ZCC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06200321

BLT, RHSN .50-13X8.50 G5 ZCC

$6.99

$

In Stock, Qty 20+

0

12

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500820

NUT,NYL .31-18 G5 ZCC

$0.99

$

In Stock, Qty 20+

0
