991156 (ZT HD 60) - Gravely 60" Zero-Turn Mower, 26hp Kohler KT (SN: 001031 - 014999) Heat Shield Parts Diagram

60" Zero-Turn Mower, 26hp Kohler KT

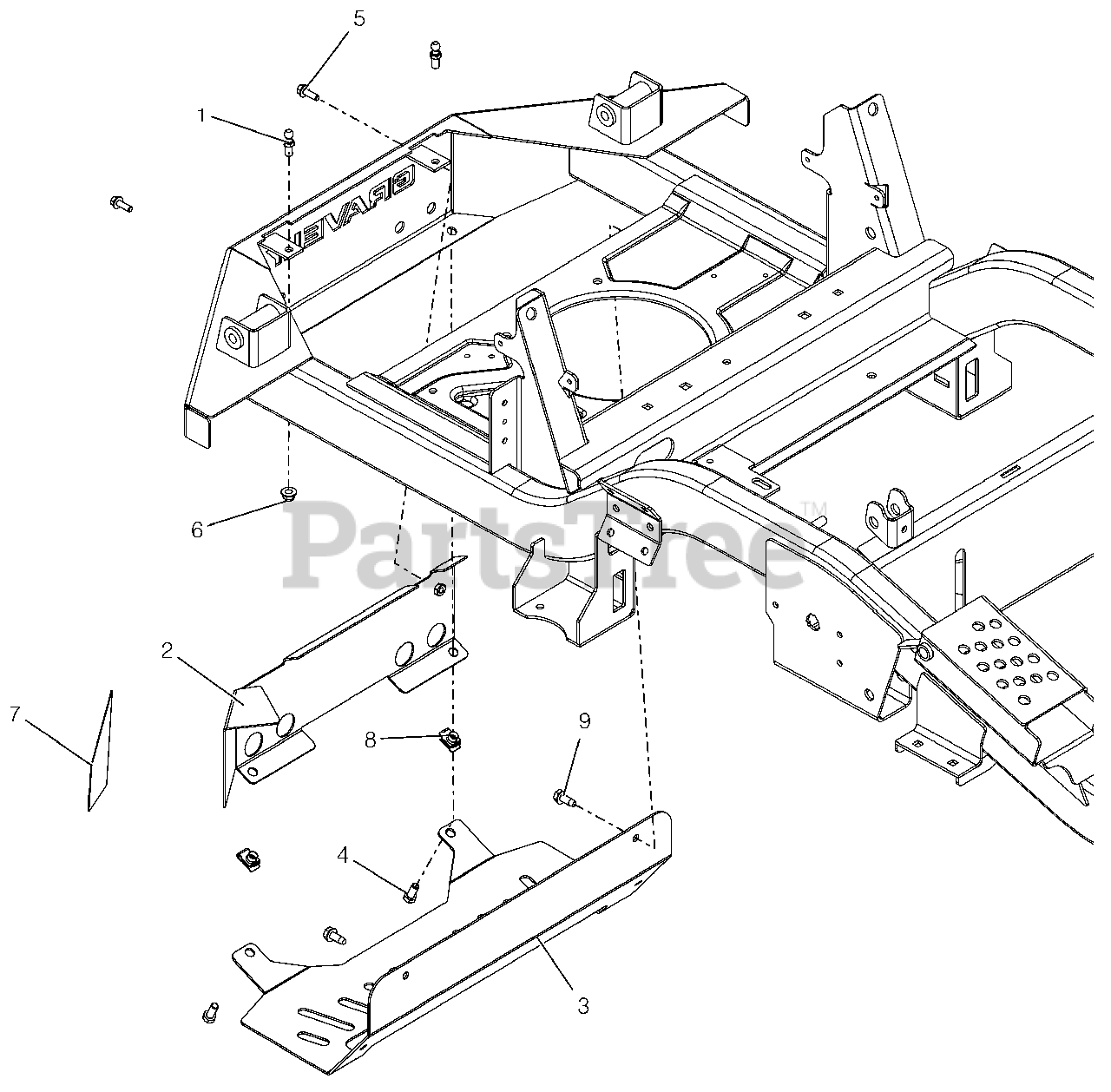

Heat Shield Parts Diagram

  • Title
1

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

2

Gravely 05116751

WMT, HEAT BAFFLE

$31.99

$

Usually ships in 4-12 days

0

3

Gravely 05082851

SHIELD, HEAT (HD)

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$

$

Not available

6

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05116800

TAPE, HEAT DEFLECTOR

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

9

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0
