991155 - Ariens Apex 52" Zero-Turn Mower, Kohler (SN: 015000 - 024999) Controls Parts Diagram

Apex 52" Zero-Turn Mower, Kohler

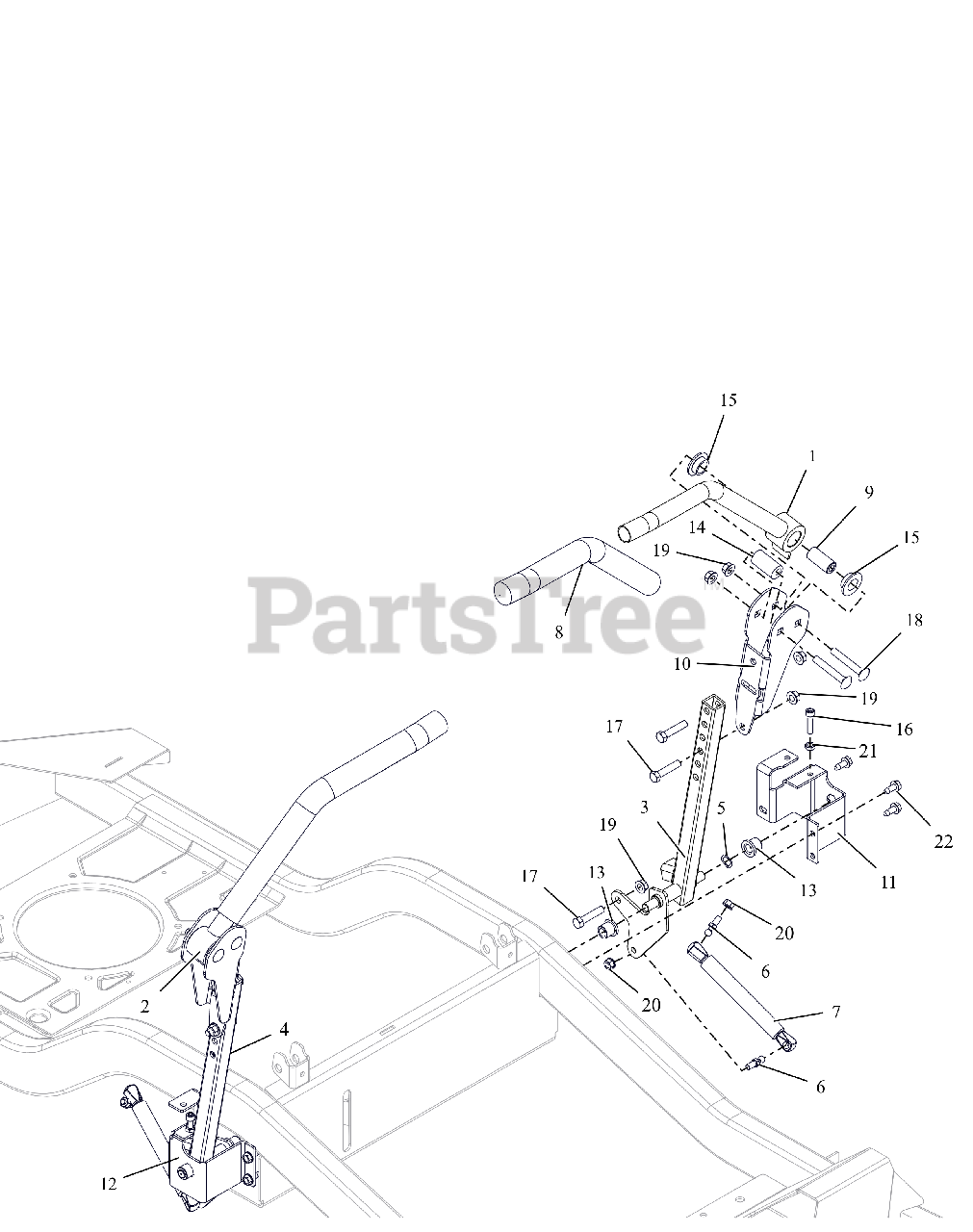

Controls Parts Diagram

  • Title
1

Ariens 05068551

WLDMT, CONTROL HANDLE- BLK
(Superseded to 05262151)

$76.99

$

In Stock, only 1 left!

0

2

Ariens 05068651

WLDMT, CONTROL HANDLE- BLK
(Superseded to 05261851)

$72.99

$

Usually ships in 4-12 days

0

3

Ariens 05011951

WLDMT, STEERING LH
(Superseded to 05244051)

$62.99

$

Usually ships in 4-12 days

0

4

Ariens 05011851

WLDMT, STEERING RH
(Superseded to 05243951)

$56.99

$

Usually ships in 4-12 days

0

5

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

7

Ariens 03769800

DAMPER
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0

8

Ariens 04383600

GRIP, HANDLEBAR

$35.99

$

In Stock, only 2 left!

0

9

Ariens 04413600

SPACER, STEERING ARM

$6.49

$

Usually ships in 4-12 days

0

10

Ariens 05068751

ADJ UPPER CONTROL ARM BRKT-BLK

$39.99

$

Usually ships in 4-12 days

0

11

Ariens 05120459

BRKT, STEERING ARM MOUNT -LH

$37.99

$

Usually ships in 4-12 days

0

12

Ariens 05120559

BRKT, STEERING ARM MOUNT -RH

$41.99

$

Usually ships in 4-12 days

0

13

Ariens 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

14

Ariens 05501223

BSHG, ECCENTRIC.406X.875X1.625

$4.99

$

In Stock, only 4 left!

0

15

Ariens 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

16

Ariens 05901320

SHCS .312-18 X 1.25 GR8 YWZC

$

$

Not available

17

Ariens 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

19

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06500909

NUT-JAM .312-18 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0
