991155 - Ariens Apex 52" Zero-Turn Mower, Kohler (SN: 000413 - 014999) Deck, Belt, Blades And Spindles - 52" Parts Diagram

Apex 52" Zero-Turn Mower, Kohler

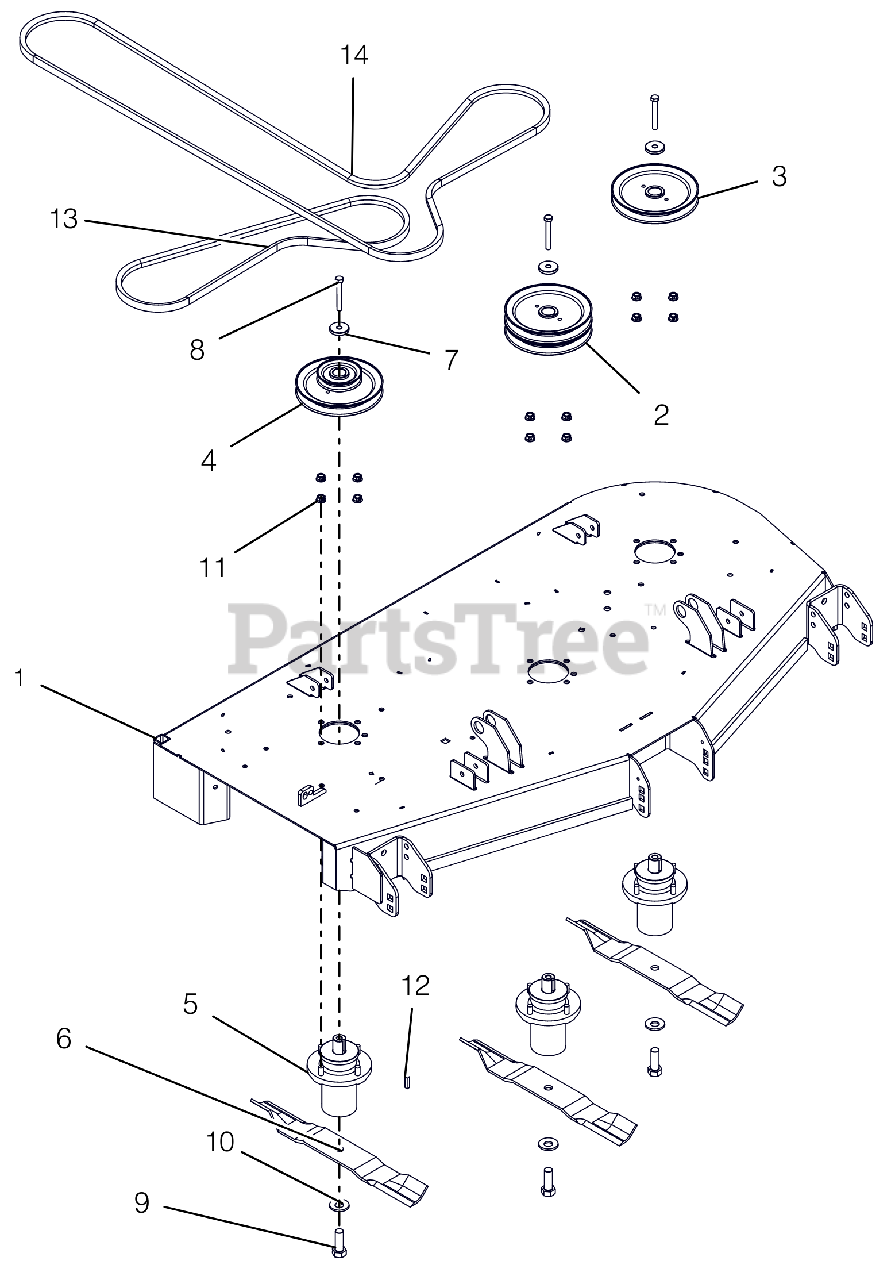

Deck, Belt, Blades And Spindles - 52" Parts Diagram

  • Title

1

Ariens 05002759

WLDMT, 52" SIDE DISCHARGE DECK

$

$

Not available

2

Ariens 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

3

Ariens 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

4

Ariens 07346267

PULLEY, DOUBLE-1"IDX3.50"&6.75

$91.99

$

Usually ships in 4-12 days

0

5

Ariens 59109800

ASM, MAINT FREE SPINDLE ALUM
(Superseded to 58810800)

$239.99

$

In Stock, Qty 20+

0

6

Ariens 03253800

BLADE, 18"

$28.99

$

In Stock, Qty 20+

0

7

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

8

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

10

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

11

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

13

Ariens 07200806

V-BELT, B-COGGED

$40.99

$

In Stock, only 1 left!

0

14

Ariens 07200816

V-BELT, HB SECTION

$119.99

$

In Stock, Qty 10

0
