991155 - Ariens Apex 52" Zero-Turn Mower, Kohler (SN: 000101 - 000412) Anti-Scalp Wheels And Baffle - 52" Parts Diagram

Apex 52" Zero-Turn Mower, Kohler

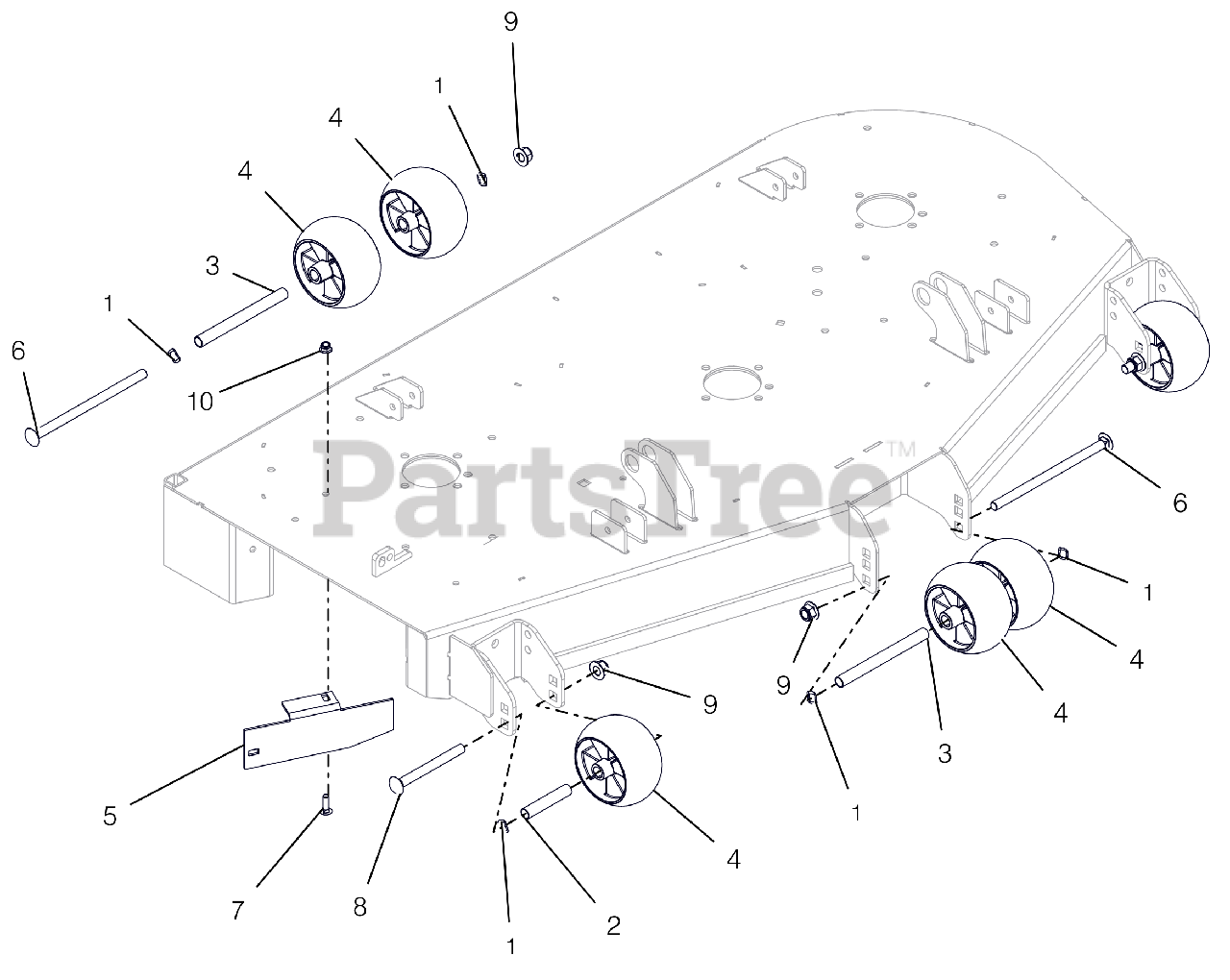

Anti-Scalp Wheels And Baffle - 52" Parts Diagram

  • Title
1

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

2

Ariens 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

3

Ariens 00473800

SPACER, .510X.625X6.50

$21.99

$

In Stock, Qty 20+

0

4

Ariens 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

5

Ariens 04389459

BAFFLE, DISCHARGE, 52"

$25.99

$

Usually ships in 4-12 days

0

6

Ariens 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

7

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
