991154 (ZT HD 52) - Gravely 52" Zero-Turn Mower, 25hp Kohler KT (SN: 035000 - 039999) Fuel System - Kohler Parts Diagram

52" Zero-Turn Mower, 25hp Kohler KT

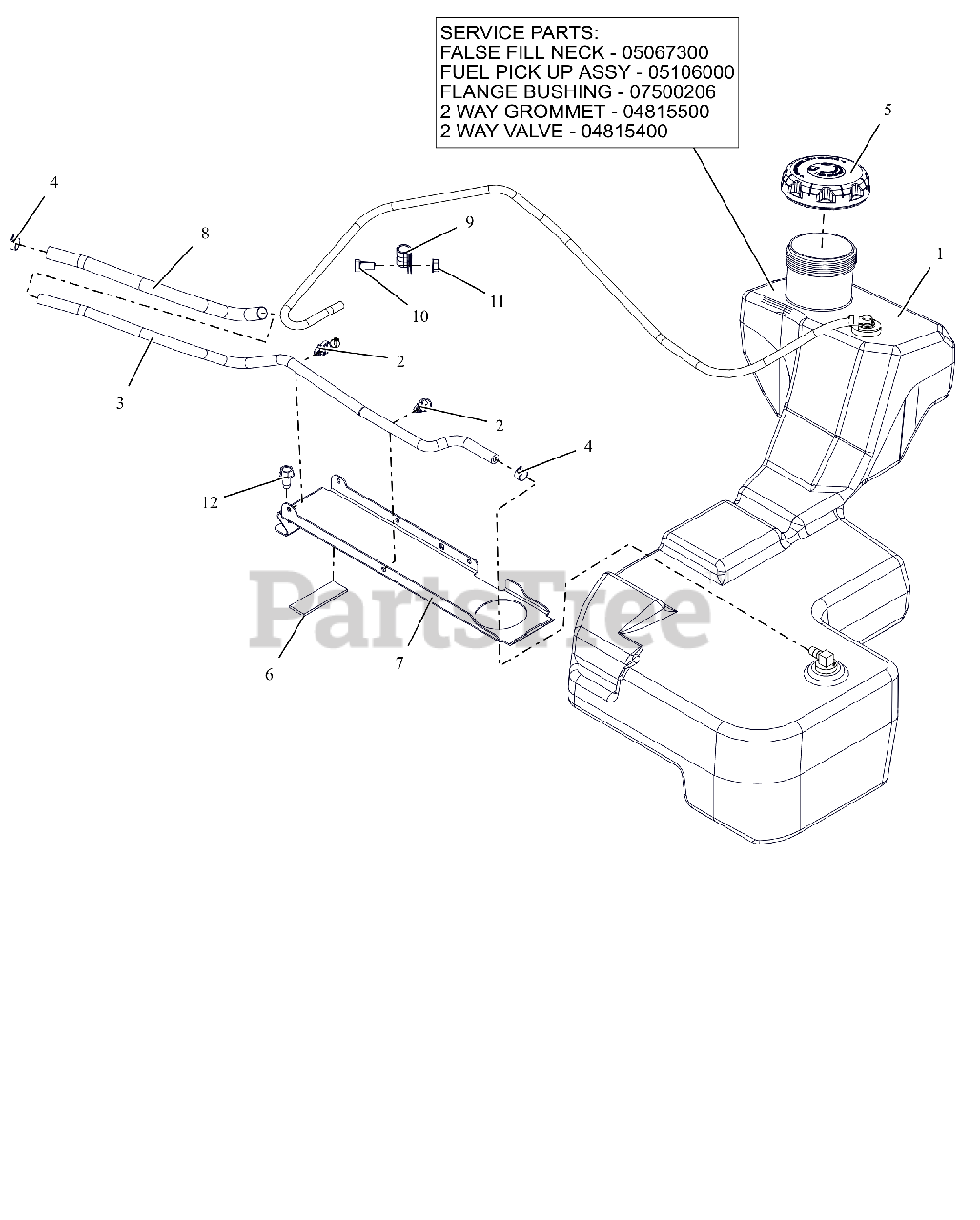

Fuel System - Kohler Parts Diagram

  • Title

1

Gravely 05183700

ASSY, FUEL TANK-HD
(Superseded to 09167300)

$245.99

$

Usually ships in 4-12 days

0

1

Gravely 05067300

INSERT, FUEL NECK FALSE FILL

$

$

Not available

1

Gravely 05106000

ASM, HD FUEL PICK-UP

$56.99

$

In Stock, only 1 left!

0

1

Gravely 07500206

BSHG-FLG .375X1.062X.625 NITR

$2.49

$

In Stock, Qty 20+

0

1

Gravely 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

$3.49

$

In Stock, Qty 8

0

1

Gravely 04815400

VALVE, 2-WAY

$19.99

$

In Stock, Qty 7

0

2

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: 27.00" Length

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$34.99

$

In Stock, Qty 20+

0

6

Gravely 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 05024151

BRKT, FUEL TANK HOLD DOWN

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 05133700

SLEEVE, THERMAL 12"

$12.99

$

Usually ships in 4-12 days

0

9

Gravely 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
