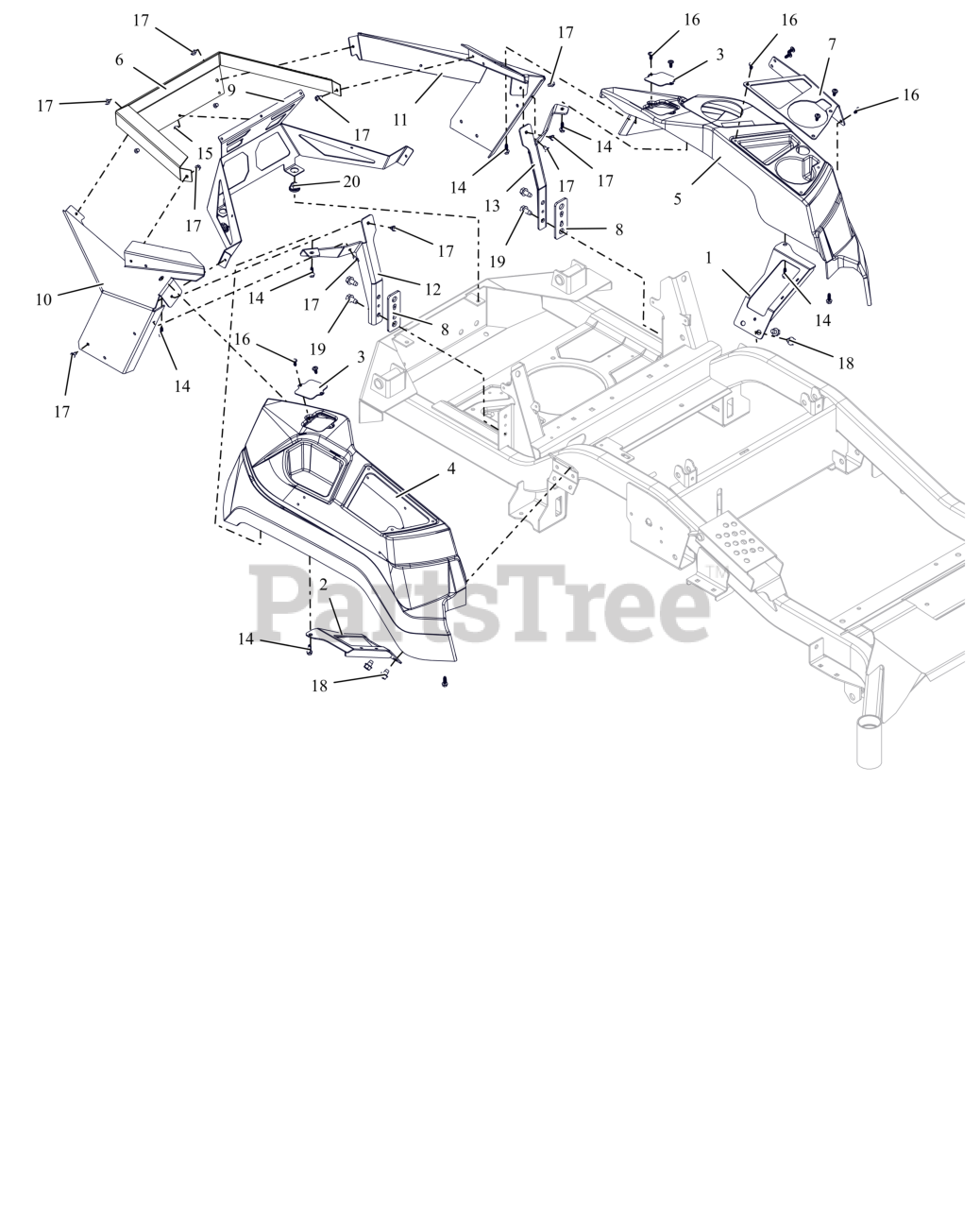

991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 040000 & Above) Engine Guard and Fenders Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

Engine Guard and Fenders Parts Diagram

  • Title

1

Ariens 05095151

WLDMT, LH FENDER MOUNT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 05105151

WLDMT, RH FENDER MOUNT

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 05078051

PLATE, ROPS HOLE-HD

$21.99

$

Usually ships in 4-12 days

0

4

Ariens 05100400

FENDER, RH APEX - 2017

$58.99

$

Usually ships in 4-12 days

0

5

Ariens 59113800

FENDER, LH APEX

$77.99

$

In Stock, only 2 left!

0

6

Ariens 05103559

GUARD,ENGINE WRAP

$35.99

$

Usually ships in 4-12 days

0

7

Ariens 05108859

PLATE, APEX CUP HOLDER COVER

$25.99

$

Usually ships in 4-12 days

0

8

Ariens 05117459

PLATE, CONTROL PANEL SPACER

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 05196751

GUARD, ENGINE

$29.99

$

Usually ships in 4-12 days

0

10

Ariens 05196859

PANEL, RH REAR FENDER MOUNT

$47.99

$

Usually ships in 4-12 days

0

11

Ariens 05196959

PANEL, LH REAR FENDER MOUNT

$51.99

$

Usually ships in 4-12 days

0

12

Ariens 05244459

BRKT, RH FENDER MTG (ORANGE)

$54.99

$

Usually ships in 4-12 days

0

13

Ariens 05244559

BRKT, LH FENDER MOUNT (ORANGE)

$47.99

$

Usually ships in 4-12 days

0

14

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.49

$

In Stock, Qty 6

0

15

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$1.49

$

Usually ships in 4-12 days

0

16

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.49

$

In Stock, only 3 left!

0

17

Ariens 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07500407

GROMMET, 10MM BOLLHOFF

$5.99

$

In Stock, only 2 left!

0
