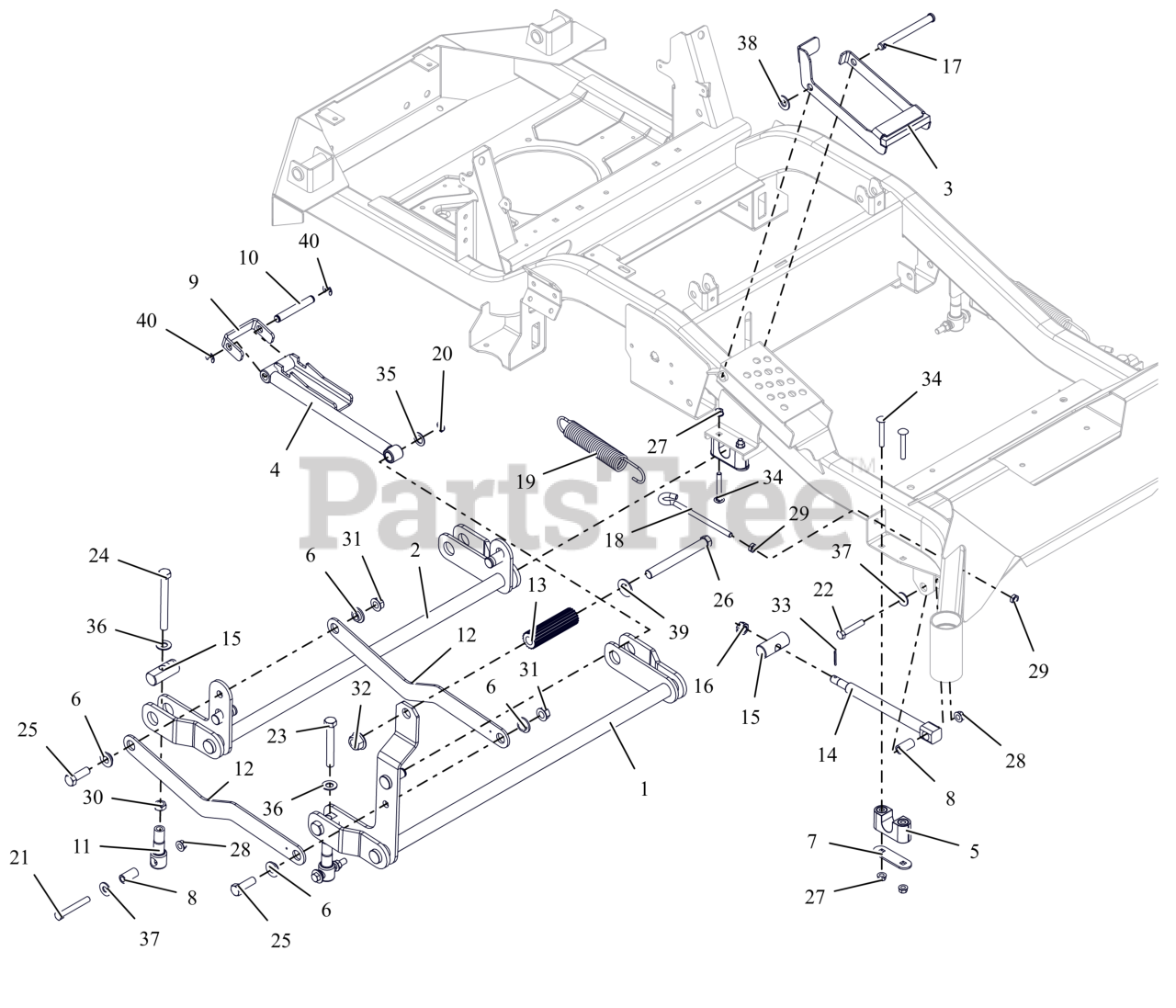

991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 035000 - 039999) Deck Lift - RH Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

Deck Lift - RH Parts Diagram

  • Title

1

Ariens 05019659

WLDMT, FRONT DECK LIFT PIVOT

$140.99

$

Usually ships in 4-12 days

0

2

Ariens 05019759

WLDMT, REAR DECK LIFT PIVOT

$115.99

$

Usually ships in 4-12 days

0

3

Ariens 05025259

BRKT, HOC TRANSFER LOCK

$36.99

$

Usually ships in 4-12 days

0

4

Ariens 05186359

WLDMT, HOC ARM

$85.99

$

Usually ships in 4-12 days

0

5

Ariens 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 1 left!

0

6

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.49

$

In Stock, Qty 20+

0

7

Ariens 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

8

Ariens 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

9

Ariens 05077551

BRKT, HOC LINE

$14.99

$

Usually ships in 4-12 days

0

10

Ariens 05077700

ROD, HOC PIVOT
(Superseded to 05800210)

$4.99

$

Usually ships in 4-12 days

0

11

Ariens 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 10

0

12

Ariens 05083959

LINK, DECK LIFT

$11.99

$

Usually ships in 4-12 days

0

13

Ariens 05120951

ROD, FOOT PEDAL (BLACK)

$

$

Not available

14

Ariens 05126700

DRAG,LINK-HD

$18.99

$

In Stock, only 1 left!

0

15

Ariens 05149500

PIN, DECK LIFT

$15.99

$

In Stock, Qty 20+

0

16

Ariens 06505000

NUT-SL .50-13

$3.49

$

In Stock, Qty 20+

0

17

Ariens 06800201

PIN-SLIC .50X4.97X4.55 -ZCC

$7.99

$

In Stock, only 3 left!

0

18

Ariens 07001814

BOLT,.38-16 X 5.25-.62 DIA EYE

$13.99

$

Usually ships in 4-12 days

0

19

Ariens 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

20

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

23

Ariens 05901735

BLT, HEX .50-13X3.50F G5 ZCC

$5.99

$

In Stock, only 2 left!

0

24

Ariens 05901736

BLT, HEX .50-13X4.50F G8 ZCC

$9.49

$

In Stock, only 1 left!

0

25

Ariens 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

26

Ariens 05901730

BLT, HEX .62-11X5.50 G5 FBP

$6.99

$

Usually ships in 4-12 days

0

27

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06500911

NUT-JAM .500-13 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06500835

NUT,FLG-TOP LK .625-11 FBP

$6.99

$

Usually ships in 4-12 days

0

33

Ariens 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

35

Ariens 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0
