991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 035000 - 039999) Clutch Parts Diagram
Apex 48" Zero-Turn Mower, Kohler

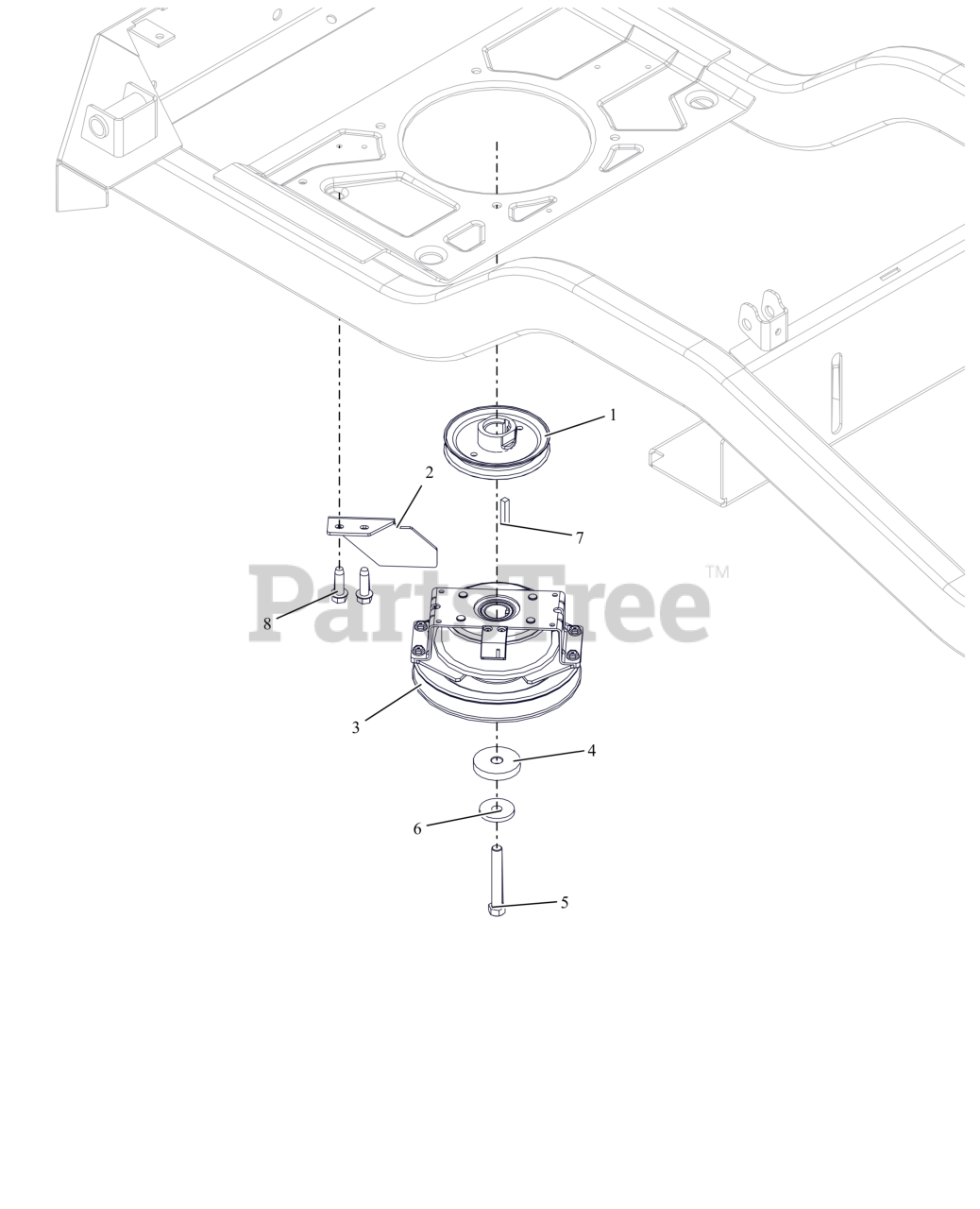

Clutch Parts Diagram
Ariens 07346000
WLDMT,PULLEY-4.50ODX1.003
$67.99
$
Usually ships in 4-12 days
Ariens 05016151
BRKT, CLUTCH STOP HD
$14.99
$
Usually ships in 4-12 days
$336.99
$
In Stock, only 1 left!
Ariens 05501240
SPACER, .474/.459X2.00X.350
$14.99
$
In Stock, only 1 left!
Ariens 05901819
BLT, HEX .44-20X3.00 G8 ZCC NT
$5.99
$
In Stock, only 1 left!
Ariens 06400936
WASHER, 7/16" SPRING DISK
$11.99
$
In Stock, only 1 left!
Ariens 06603400
KEY-SQ .25 X 1.25 X .25 SAE
$3.99
$
In Stock, Qty 11
Ariens 07400128
SCR,TAP .375-16X1.25HWH TR ZCC
$2.99
$
In Stock, only 3 left!
