991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 015000 - 024999) Fuel System - Kohler Non-CARB Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

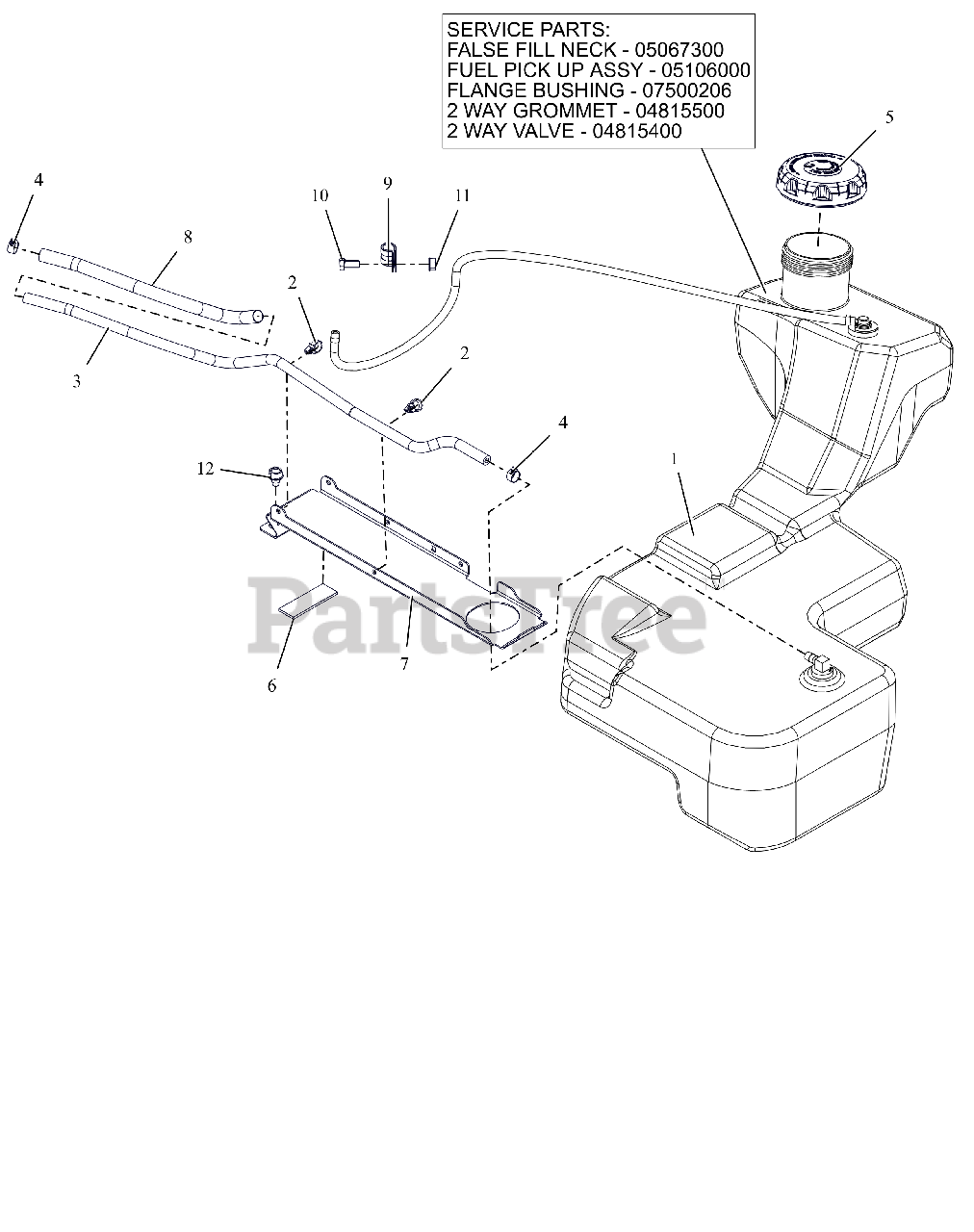

Fuel System - Kohler Non-CARB Parts Diagram

  • Title

1

Ariens 05018100

ASM, HD FUEL TANK
(Superseded to 09167300)

$219.99

$

Usually ships in 4-12 days

0

1

Ariens 05067300

INSERT, FUEL NECK FALSE FILL

Note: SERVICE PART

$

$

Not available

1

Ariens 05106000

ASM, HD FUEL PICK-UP

Note: SERVICE PART

$51.99

$

In Stock, only 1 left!

0

1

Ariens 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: SERVICE PART

$2.49

$

In Stock, Qty 20+

0

1

Ariens 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: SERVICE PART

$3.49

$

In Stock, Qty 9

0

1

Ariens 04815400

VALVE, 2-WAY

Note: SERVICE PART

$19.99

$

In Stock, Qty 8

0

2

Ariens 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

3

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Ariens 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

6

Ariens 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$

$

Not available

7

Ariens 05024151

BRKT, FUEL TANK HOLD DOWN

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 05133700

SLEEVE, THERMAL 12"

$12.99

$

Usually ships in 4-12 days

0

9

Ariens 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
