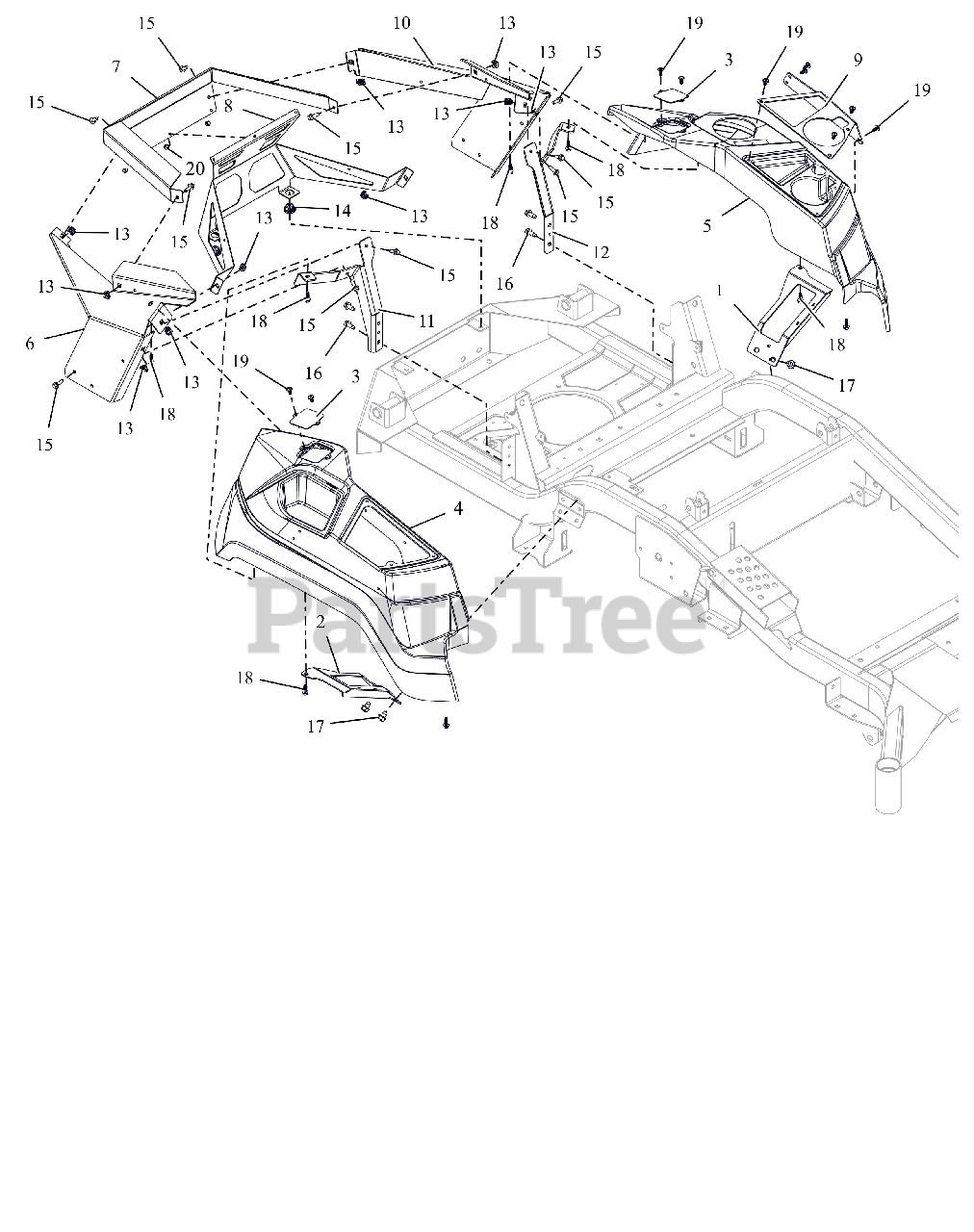

991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 015000 - 024999) Engine Guard And Fenders Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

Engine Guard And Fenders Parts Diagram

  • Title

1

Ariens 05095151

WLDMT, LH FENDER MOUNT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 05105151

WLDMT, RH FENDER MOUNT

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 05078051

PLATE, ROPS HOLE-HD

$21.99

$

Usually ships in 4-12 days

0

4

Ariens 05100400

FENDER, RH APEX - 2017

$58.99

$

Usually ships in 4-12 days

0

5

Ariens 59113800

FENDER, LH APEX

$77.99

$

In Stock, only 2 left!

0

6

Ariens 05103359

PANEL,RIGHT REAR FENDER MOUNT

$74.99

$

Usually ships in 4-12 days

0

7

Ariens 05103559

GUARD,ENGINE WRAP

$

$

Not available

8

Ariens 05103651

GUARD,ENGINE

$109.99

$

Usually ships in 4-12 days

0

9

Ariens 05108859

PLATE, APEX CUP HOLDER COVER

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 05119359

PANEL,LEFT REAR FENDER MOUNT

$

$

Not available

11

Ariens 05122359

BRKT, RH FENDER MTG. APEX

$64.99

$

Usually ships in 4-12 days

0

12

Ariens 05122459

BRKT, LH FENDER MTG -APEX

$

$

Not available

13

Ariens 07009300

NUT RETNR .25-20

$

$

Not available

14

Ariens 07500407

GROMMET, 10MM BOLLHOFF

$5.99

$

In Stock, only 1 left!

0

15

Ariens 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$

$

Not available

16

Ariens 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

17

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06100231

SCR, PLASTITE .25-10X.75 ZCC

$1.49

$

In Stock, Qty 6

0

19

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.49

$

In Stock, only 3 left!

0

20

Ariens 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available
