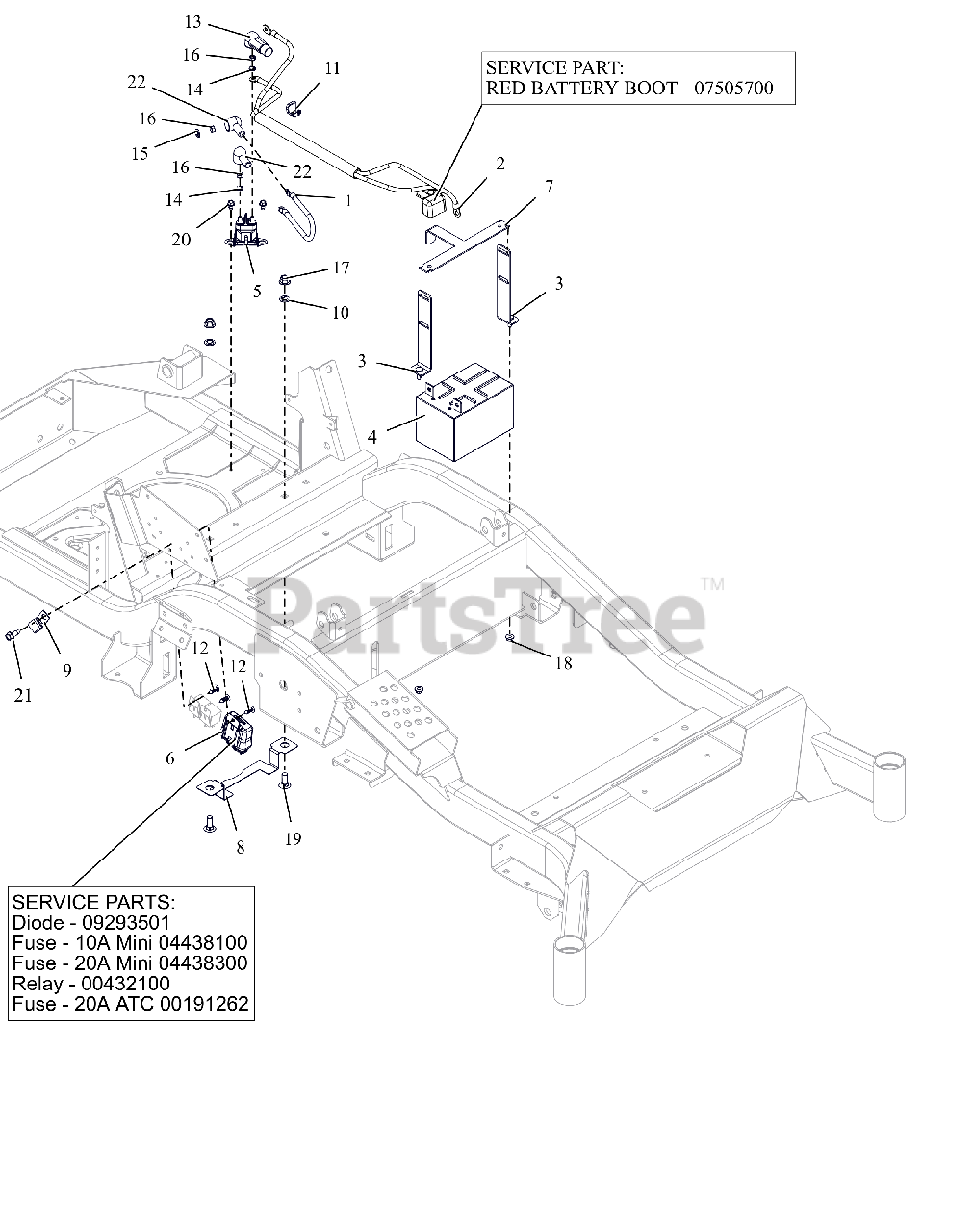

991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 015000 - 024999) Electrical Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

Electrical Parts Diagram

  • Title

1

Ariens 04783300

CABLE, POS W/(2)1/4 RING 9.0LG

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 05074100

HARNESS, BATTERY HD

$56.99

$

Usually ships in 4-12 days

0

3

Ariens 05107451

WMT,BATTERY MOUNT HOLD DOWN
(Superseded to 05107400)

$11.99

$

Usually ships in 4-12 days

0

4

Ariens 04738800

BATTERY, 12V 12A-190CCA

$122.99

$

In Stock, Qty 20+

0

5

Ariens 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 1 left!

0

6

Ariens 05011700

HARNESS, WIRE

$148.99

$

In Stock, only 1 left!

0

6

Ariens 09293501

DIODE, CONNECTOR SHELL

Note: SERVICE PART

$11.99

$

In Stock, only 2 left!

0

6

Ariens 04438100

FUSE,10 AMP MINI-ATC

Note: SERVICE PART

$4.99

$

Usually ships in 4-12 days

0

6

Ariens 04438300

FUSE,20 AMP MINI ATC

Note: SERVICE PART

$

$

Not available

6

Ariens 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: SERVICE PART

$22.99

$

In Stock, Qty 20+

0

6

Ariens 00191262

FUSE, 20 AMP BLADE S/O

Note: SERVICE PART

$14.99

$

In Stock, only 1 left!

0

7

Ariens 05031551

BRKT, BATTERY TIE DOWN
(Superseded to 05031500)

$12.99

$

In Stock, only 1 left!

0

8

Ariens 05111451

GUARD, ELECTRICAL HARNESS

$10.99

$

Usually ships in 4-12 days

0

9

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 07009900

NUT-PUSH .38 DIA. PAL ZINC

$1.99

$

In Stock, only 1 left!

0

11

Ariens 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

12

Ariens 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 16

0

13

Ariens 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06500925

NUT-STD M6-1.0 ZCC

$

$

Not available

17

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

20

Ariens 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

22

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

23

Ariens 07505700

INSULATOR

Note: SERVICE PART

$9.49

$

Usually ships in 4-12 days

0
