991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 000104 - 014999) Discharge Chute Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

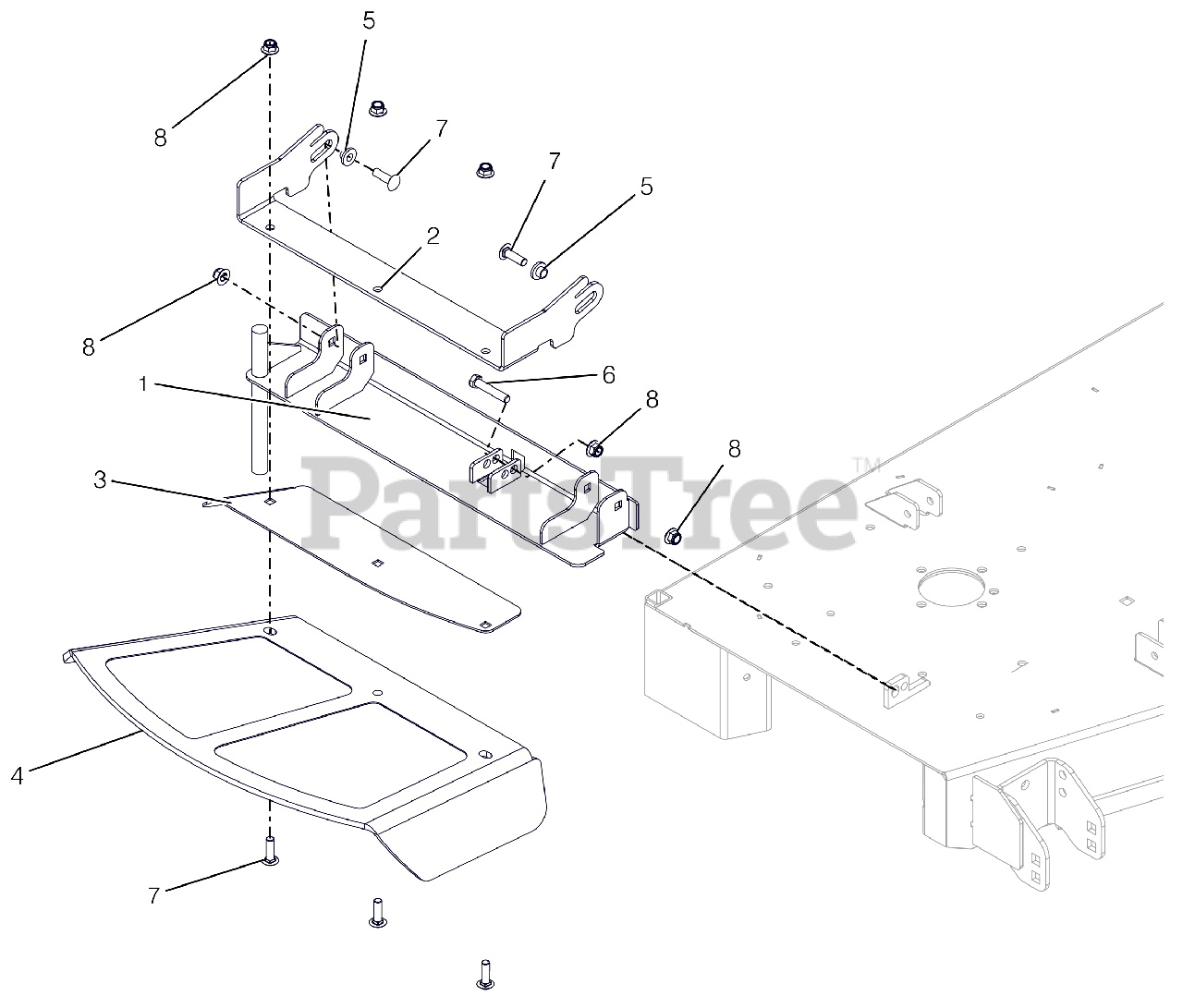

Discharge Chute Parts Diagram

  • Title
1

Ariens 59112100

44-60 DISCH CHT WMT ORG W/SAFE

$

$

Not available

2

Ariens 04872259

48-60" CHUTE MTG BRKT -ORG

$

$

Not available

3

Ariens 04873759

48-60 DISCH CHUTE CLMP PLT-ORG

$

$

Not available

4

Ariens 04881200

CHUTE,48-60" FRMD RUBBER DISCH

$75.99

$

In Stock, Qty 9

0

5

Ariens 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

6

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

7

Ariens 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
