991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 000104 - 014999) Deck Lift - LH Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

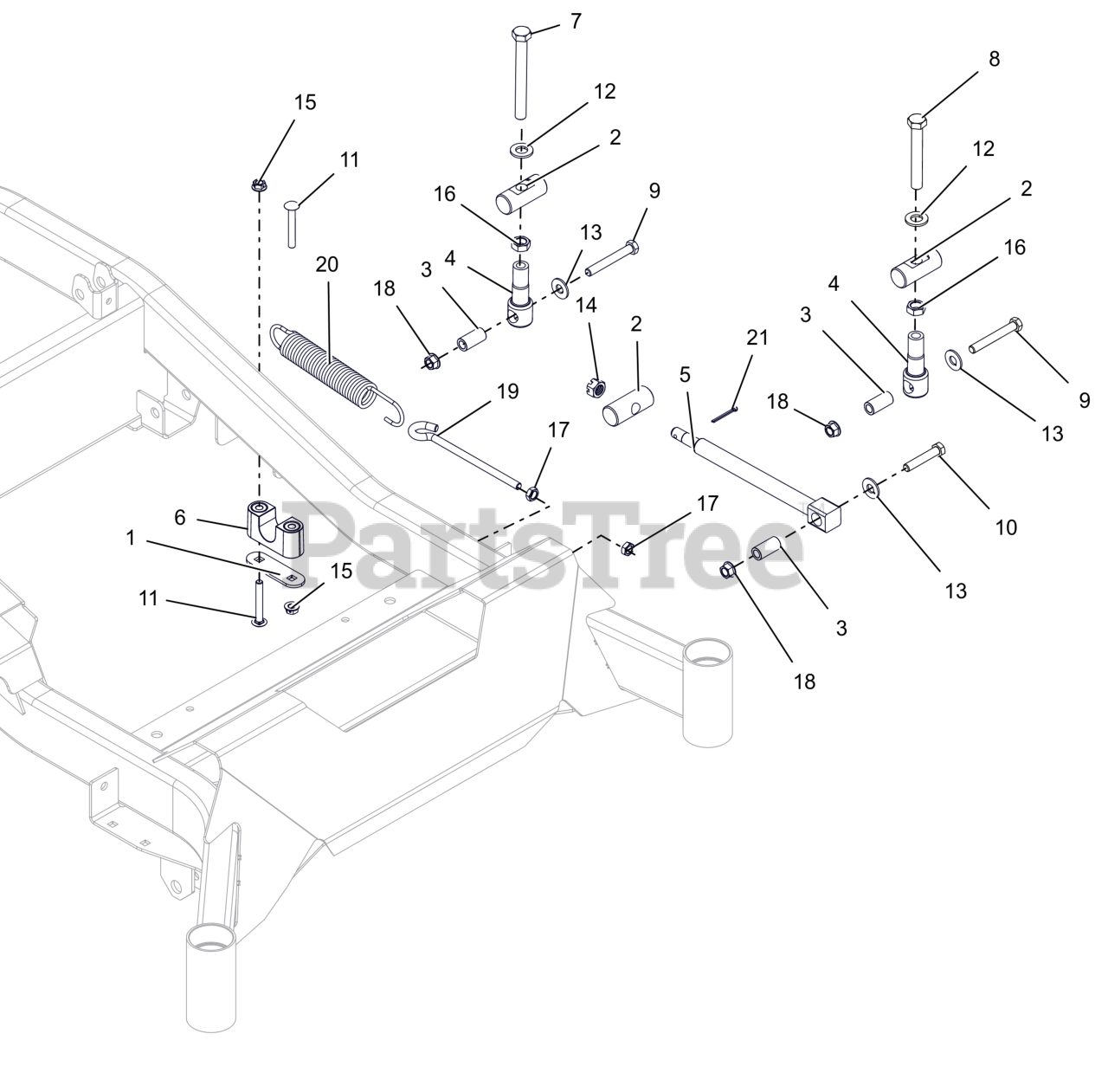

Deck Lift - LH Parts Diagram

  • Title
1

Ariens 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

2

Ariens 04877700

PIN, DECK LIFT
(Superseded to 05149500)

$15.99

$

In Stock, Qty 20+

0

3

Ariens 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

4

Ariens 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 10

0

5

Ariens 05126700

DRAG,LINK-HD

$18.99

$

In Stock, only 1 left!

0

6

Ariens 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 1 left!

0

7

Ariens 05900102

@BLT-HEX .5-13-4.5GR8 FULL THD
(Superseded to 05901736)

$9.49

$

In Stock, only 1 left!

0

8

Ariens 05901336

BLT-HEX .50-13X3.50 GR5 FTH

$

$

Not available

9

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

11

Ariens 06200226

BLT-RDHDSQSHNK .31-18X2.25 YWZ
(Superseded to 06200311)

$3.99

$

In Stock, only 2 left!

0

12

Ariens 06400418

FLATWASHER 1/2 SAE HARD 15906
(Superseded to 06401116)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06505000

NUT-SL .50-13

$3.49

$

In Stock, Qty 20+

0

15

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07001814

BOLT,.38-16 X 5.25-.62 DIA EYE

$13.99

$

Usually ships in 4-12 days

0

20

Ariens 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

21

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0
