991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 000101 - 000103) Front Caster Wheels Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

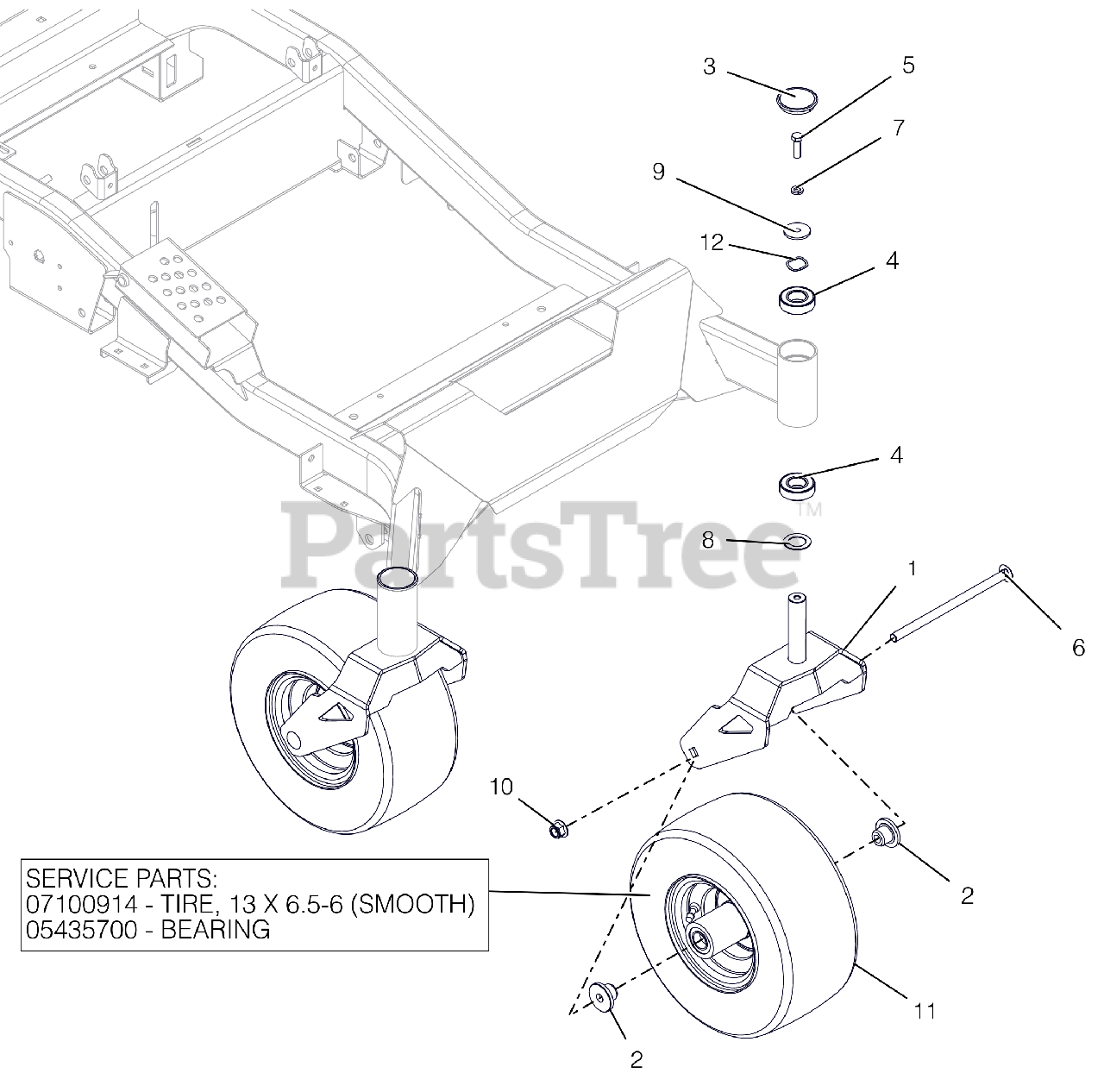

Front Caster Wheels Parts Diagram

  • Title

1

Ariens 04999659

WLDMT, HD CASTER FORK
(Superseded to 05186459)

$110.99

$

In Stock, only 1 left!

0

2

Ariens 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

3

Ariens 04792200

CAP, DUST

$12.99

$

In Stock, Qty 20+

0

4

Ariens 05400722

BRG,BALL 1.00X2.00X.563(1641)

$17.99

$

In Stock, Qty 9

0

5

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06200134

BLT-RDHDSQNK .50-13X9.00 G5 Y
(Superseded to 06200510)

$7.99

$

In Stock, only 2 left!

0

7

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

8

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

9

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

10

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07101226

ASM, WHL/TIRE 13X6.50-6

$125.99

$

Usually ships in 4-12 days

0

11

Ariens 07100914

TIRE, 13X6.50-6 SMOOTH

Note: Component Service Part

$85.99

$

Usually ships in 4-12 days

0

11

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$22.99

$

In Stock, Qty 19

0

12

Ariens 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$5.99

$

In Stock, Qty 20+

0
