991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 000101 - 000103) Engine - Kohler Twin 23 HP Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

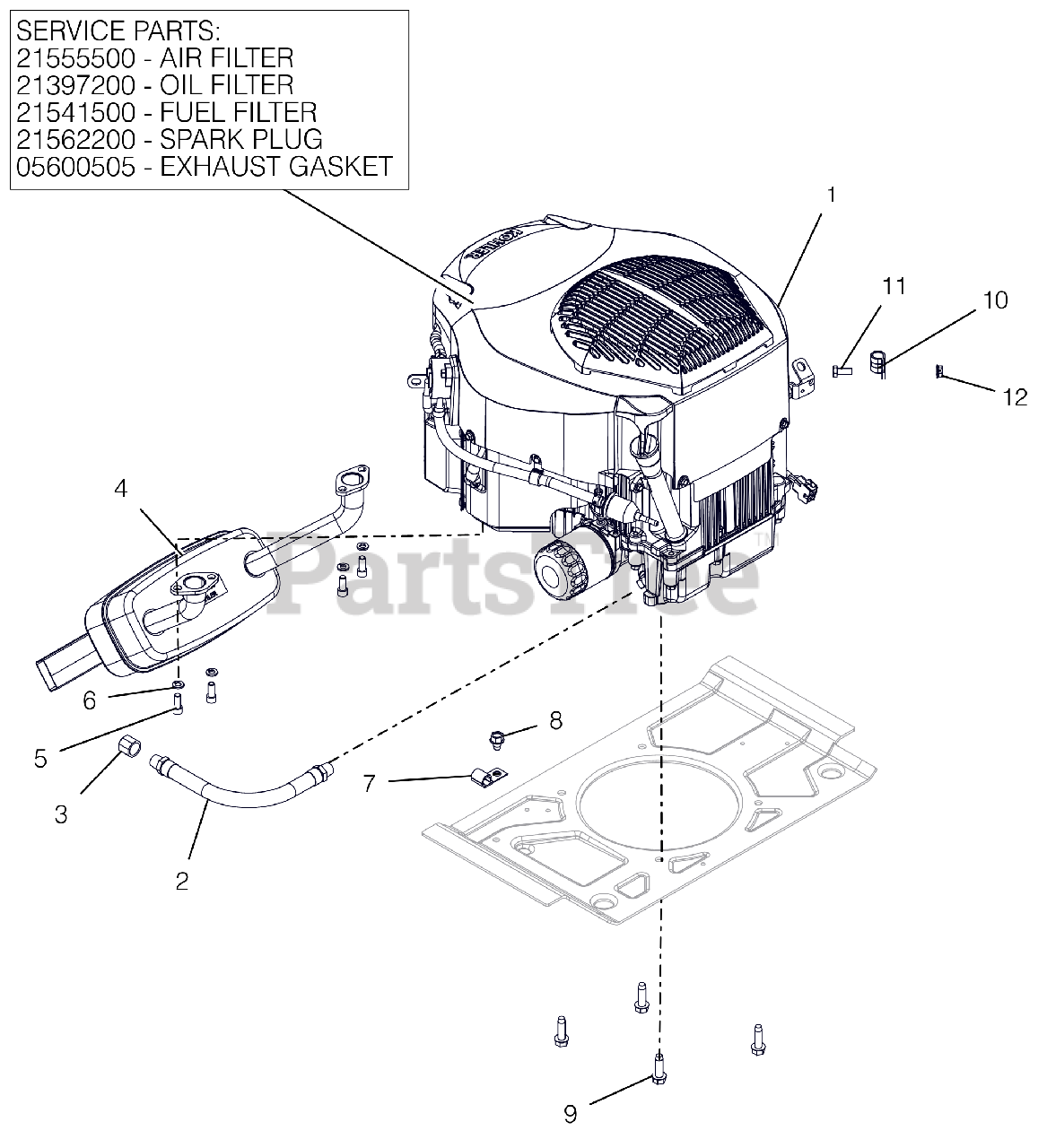

Engine - Kohler Twin 23 HP Parts Diagram

  • Title

1

Ariens 08201135

ENGINE, KOHLER TWIN 23 HP

$

$

Not available

1

Ariens 21555500

AIR CLEANER, KOHLER

Note: SERVICE PART

$29.99

$

In Stock, only 1 left!

0

1

Ariens 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: SERVICE PART

$18.99

$

In Stock, only 4 left!

0

1

Ariens 21541500

FILTER, FUEL

Note: SERVICE PART

$8.99

$

In Stock, Qty 20+

0

1

Ariens 21562200

PLUG, SPARK (RFI)
(Superseded to 21500009)

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

1

Ariens 05600505

GASKET, MUFFLER COURAGE TWIN

Note: SERVICE PART

$9.99

$

Usually ships in 4-12 days

0

2

Ariens 03873100

HOSE,HYD .38-11-0K M6NO-M6N0
(Superseded to 07001829)

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 03873200

PIPE CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

4

Ariens 04825200

MUFFLER, KOHLER

$110.99

$

In Stock, only 1 left!

0

5

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07414700

@SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$2.99

$

In Stock, only 3 left!

0

10

Ariens 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0
